Product Category: G10B Series Ultra-compact Waterproof and Dustproof Micro Switch, Dedicated Locking Sensing Component for New Energy Charging Systems
Application Scenarios: Charging port cover locking detection, charging plug insertion verification, electronic lock status monitoring, charging cover plate opening-closing induction
Core Functions: Accurate recognition of lock engagement status, charging interlock signal feedback, insertion in-place logic verification, abnormal status warning triggering
Core Advantages: IP67 waterproof and dustproof, ultra-small size adapted to narrow cavities, resistance to outdoor temperature variation and salt spray, high durability against plugging-unplugging impact
Pain Points Solved: Easy failure caused by sand, dust and rain, limited installation space in narrow cavities, short service life under frequent plugging and unplugging, easy malfunction caused by temperature variation and corrosion
Product advantages:
The product has passed global safety certifications such as ENEC, UL, CQC, etc., and meets the electrical interlocking safety standards for new energy equipment. With exquisite quality, it strengthens the full process protection of charging piles from starting charging to safe disconnection, and helps new energy charging equipment operate safely and efficiently.
Key Features:
·Waterproof and dustproof (IP67) design
·Small in size and tight in grip
·Having global safety certification
·Long lifespan, high reliability
·Equipped with various forms of operating handles
·The types of wire connectors are complete
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
·Various installation dimensions meet different installation requirements
Technical parameters：
Operating Voltage | 125V |
Rated Current | 3A |
Contact Resistance | 100mΩ |
Insulation Resistance | 100mΩ |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | customizable |
Operating Temperature | -40℃～+85℃ |
Contact Material | customizable |
Electrical Life | 10,000～50.000次 |
Mechanical Life | 30,000次 |
Protection Class | IP67 |
Operating handle | Bending handle |
Terminal | customizable |

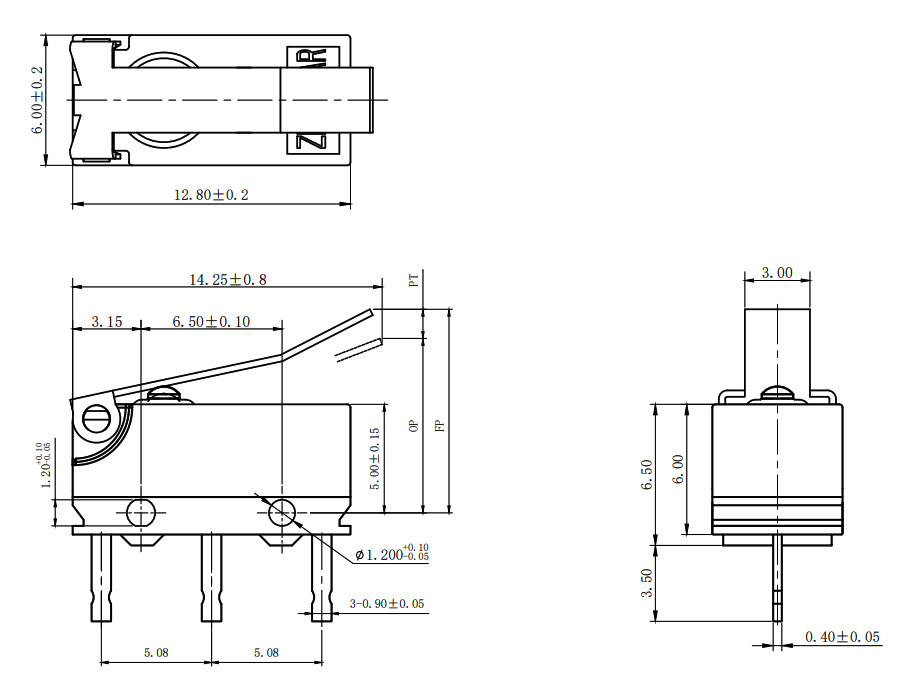

Drawings：
