ZINGEAR G5W11-WZ200A01-W2 Home Appliance Micro Switch - Micro Switch Supplier

Electric Drying Rack Suitable for Home Appliances

ZINGEAR G5W11-WZ200A01-W2 home appliance micro switch is a high reliability switch product specially designed for home smart devices such as electric drying racks, accurately matching the core requirements of equipment for stability, long service life, and strict safety compliance.

Relying on high-quality material selection and ZINGEAR precision manufacturing technology, this switch can easily cope with multiple working conditions such as outdoor humid environment, high-frequency lifting start stop, mechanical load, etc. of electric drying racks, ensuring stable and consistent operation performance in daily household use scenarios.

Product Inquiry

Product Features

Product advantages:

The product is equipped with durable contacts, which combine the dual advantages of low resistance signal transmission and high mechanical durability. It perfectly adapts to the long-term continuous operation needs of electric drying racks, such as travel limit, gear switching, and one click lifting, and builds a strong control line for the safe and efficient operation of home drying equipment.

Key Features:‌

·Waterproof and dustproof (IP67) design

·Small in size and tight in grip

·Having global safety certification

·Long lifespan, high reliability

·Equipped with various forms of operating handles

·The types of wire connectors are complete

·Widely used in fields such as automotive control, home appliance control, industrial control, etc

·Various installation dimensions meet different installation requirements

Technical parameters：

Operating Voltage	125/250VAC 30VDC
Rated Current	5A
Contact Resistance	100mΩ Max.
Insulation Resistance	100mΩ Min.
Contact Form	Single Knife Double Throw (SPDT)
Operating Force (OF)	customizable
Operating Temperature	-40℃～+85℃
Contact Material	customizable
Electrical Life	50,000次 Min.
Mechanical Life	50,000次 Min.
Protection Class	IP67
Terminal & Lever	Long handle
Outline	customizable
Withstand Voltage	500 VAC (50~60HZ) leakage current<10mA --Between terminals. 1000 VAC (50~60HZ) current<10mA --Between terminals and non current carrying metal components --Terminal and shell

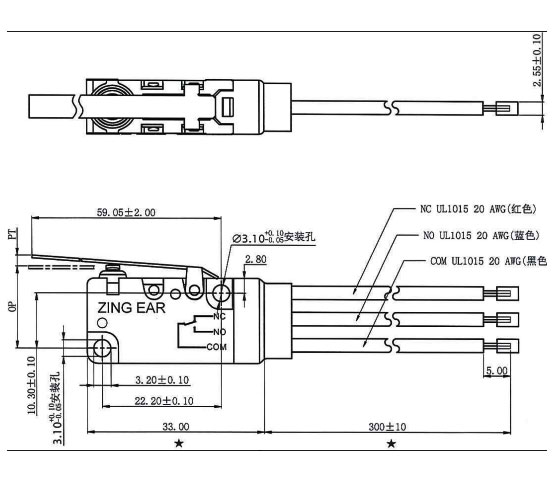

Drawings：
