Product advantages:
The product is equipped with durable silver alloy contacts, which combine the advantages of low resistance transmission and high mechanical durability. It can adapt to long-term continuous working needs such as temperature monitoring and circuit on/off control of air conditioning transformers. At the same time, it meets international explosion-proof certification and home appliance safety standards, laying a solid safety line for air conditioning operation.
ZINGEAR is directly supplied by the original manufacturer, ensuring the electrical safety of household appliances with explosion-proof grade precision quality.
Key Features:
·Waterproof and dustproof (IP67) design
·Small in size and tight in grip
·Having global safety certification
·Long lifespan, high reliability
·Equipped with various forms of operating handles
·The types of wire connectors are complete
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
·Various installation dimensions meet different installation requirements
Technical parameters：
Operating Voltage | 125/250VAC 30VDC |
Rated Current | 5A |
Contact Resistance | 200mΩ Max. |
Insulation Resistance | 100mΩ Min. |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | customizable |
Operating Temperature | -40℃～+85℃ |
Contact Material | customizable |
Electrical Life | 50,000次 Min. |
Mechanical Life | 50,000次 Min. |
Protection Class | IP67 |
Terminal & Lever | Long roller handle |
Outline | customizable |
Withstand Voltage | 500 VAC (50~60HZ) leakage current<10mA --Between terminals. 1000 VAC (50~60HZ) current<10mA --Between terminals and non current carrying metal components --Terminal and shell |

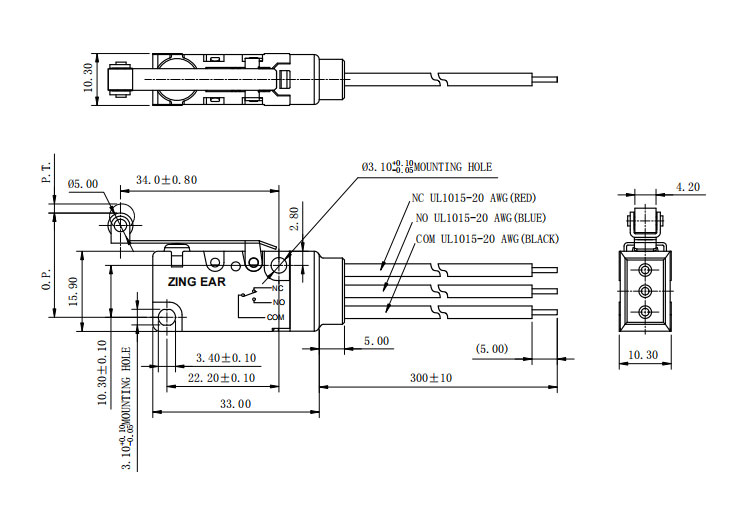

Drawings：
