Product Category: G10B Series Ultra-compact Waterproof and Dustproof Micro Switch, General-purpose Travel Sensing Component for New Energy Charging Systems
Application Scenarios: Charging port cover opening-closing detection, charging gun insertion verification, electronic lock status monitoring, small waterproof station triggering
Core Functions: Accurate recognition of opening-closing status, real-time station signal feedback, auxiliary verification of locking logic, reliable on-off of waterproof circuit
Core Advantages: IP67 waterproof and dustproof, ultra-small size adapted to narrow cavities, resistance to temperature variation and salt spray, high durability for high-frequency use
Pain Points Solved: Easy failure caused by sand, dust and rain, limited installation space in narrow cavities, easy malfunction caused by temperature variation and corrosion, short service life under frequent operation
Product advantages:
Durable contacts can effectively resist arc wear and eliminate potential hazards of poor contact; Low resistance characteristics ensure efficient current transmission and reduce energy consumption losses; High mechanical durability supports stable opening and closing operations of over a million times, perfectly adapting to long-term continuous work requirements such as lock detection and status feedback of intelligent locks in vehicles.
The product fully complies with the standards of automotive electronics and industrial grade safety compliance, and builds a safe operation defense line for new energy vehicle intelligent locks with military grade precision quality, providing protection for the stable and efficient operation of automotive intelligent systems.
Key Features:
·Waterproof and dustproof (IP67) design
·Having global safety certification
·Equipped with various forms of operating handles
·The types of wire connectors are complete
·Widely used in the field of automotive control
Technical parameters：
Operating Voltage | 125V |
Rated Current | 3A |
Contact Resistance | 100mΩ |
Insulation Resistance | 100mΩ |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | customizable |
Operating Temperature | -40℃～+85℃ |
Contact Material | customizable |
Electrical Life | 10,000～50.000次 |
Mechanical Life | 30,000次 |
Protection Class | IP67 |
Operating handle | No handle |
Terminal | customizable |

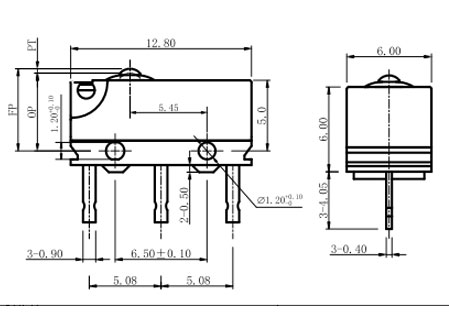

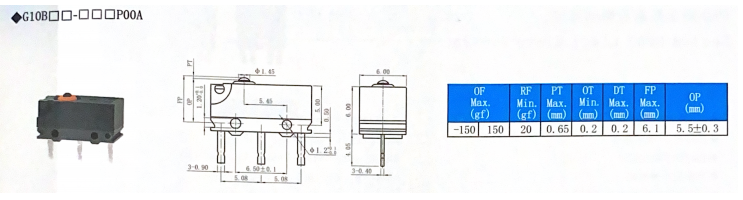

Drawings：
