Product Category: G10B Series Ultra-compact Waterproof and Dustproof Micro Switch, General-purpose Travel Sensing Component for New Energy Charging Systems
Application Scenarios: Charging port cover opening-closing detection, charging gun insertion verification, electronic lock status monitoring, small waterproof station triggering
Core Functions: Accurate recognition of opening-closing status, real-time station signal feedback, auxiliary verification of locking logic, reliable on-off of waterproof circuit
Core Advantages: IP67 waterproof and dustproof, ultra-small size adapted to narrow cavities, resistance to temperature variation and salt spray, high durability for high-frequency use
Pain Points Solved: Easy failure caused by sand, dust and rain, limited installation space in narrow cavities, easy malfunction caused by temperature variation and corrosion, short service life under frequent operation
Product advantages:
Durable contacts can resist arc erosion and avoid contact failure caused by frequent on-off; Low contact resistance ensures fast signal transmission, with a response time of ≤ 5ms and accurate feedback on the closed state of the charging cover; High mechanical durability supports ≥ 300000 stable operations, matching the service life of the entire vehicle.
The product complies with the GB38031-2025 new energy vehicle safety standard and IP67 protection level requirements, and also has a safety interlock function. It can trigger the vehicle lock logic of "no driving during charging", comprehensively ensuring the safety and controllability of the charging process, and helping the stable and efficient operation of the new energy vehicle charging system.
Key Features:
·Waterproof and dustproof (IP67) design
·Having global safety certification
·Equipped with various forms of operating handles
·The types of wire connectors are complete
·Widely used in the field of automotive control
Technical parameters：
Operating Voltage | 125V |
Rated Current | 3A |
Contact Resistance | 100mΩ |
Insulation Resistance | 100mΩ |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | customizable |
Operating Temperature | -40℃～+85℃ |
Contact Material | customizable |
Electrical Life | 10,000～50.000次 |
Mechanical Life | 30,000次 |
Protection Class | IP67 |
Operating handle | Simulated Arc Handle |
Terminal | customizable |

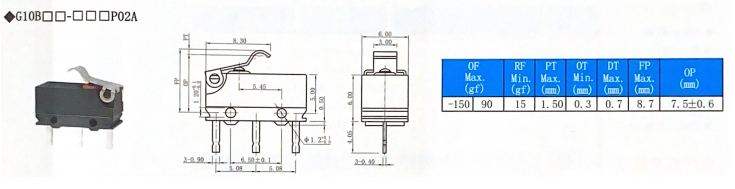

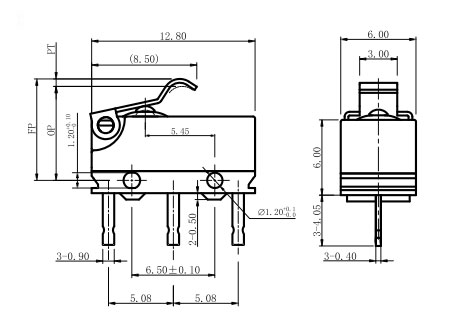

Drawings：
