Product Category: G10B Series Ultra-compact Waterproof and Dustproof Micro Switch, Dedicated Insertion Sensing Component for New Energy Charging Guns
Application Scenarios: Charging gun insertion in-place detection, electronic lock locking verification, charging trigger induction, real-time connection status monitoring
Core Functions: Accurate recognition of insertion status, immediate locking signal feedback, fast response to trigger action, charging interlock logic verification
Core Advantages: IP67 waterproof and dustproof, ultra-small size adapted to narrow cavities, resistance to plugging impact and wear, wide temperature range, corrosion resistance and high durability
Pain Points Solved: Difficult installation in narrow cavities inside the gun, easy failure caused by plugging impact, easy malfunction under sand, dust and humid environment, short service life under frequent operation
Product advantages:
Durable contacts have strong arc resistance, avoiding contact adhesion failure under high charging voltage; Low contact resistance design ensures efficient current transmission and reduces energy consumption losses; High mechanical durability supports millions of stable operations, perfectly adapting to long-term continuous work requirements such as charging gun insertion and extraction detection, on-off control, etc.
The product strictly complies with safety standards in the new energy industry such as IEC 61058-1 and GB/T 31467. It has passed authoritative verification such as insulation resistance ≥ 100M Ω and electrical strength up to 1500VAC. It has IP67 protection performance and effectively blocks water and dust intrusion, providing reliable guarantee for the safe and efficient operation of new energy charging guns.
Key Features:
·Waterproof and dustproof (IP67) design
·Having global safety certification
·Equipped with various forms of operating handles
·The types of wire connectors are complete
·Widely used in the field of automotive control
Technical parameters：
Operating Voltage | 125V |
Rated Current | 3A |
Contact Resistance | 100mΩ |
Insulation Resistance | 100mΩ |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | customizable |
Operating Temperature | -40℃～+85℃ |
Contact Material | customizable |
Electrical Life | 10,000～50.000次 |
Mechanical Life | 30,000次 |
Protection Class | IP67 |
Operating handle | Straight handle |
Terminal | customizable |

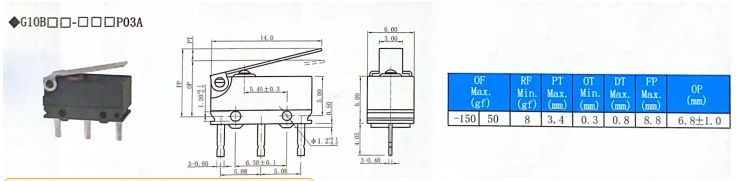

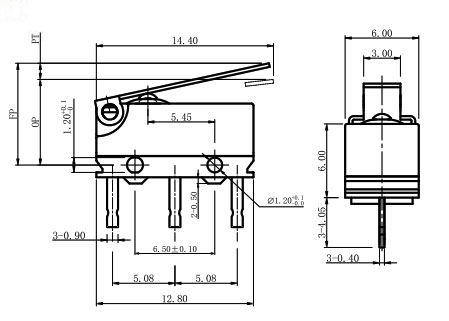

Drawings：
