Product advantages:
The product is equipped with durable contacts, which have the dual advantages of low resistance transmission and high mechanical durability. It perfectly adapts to the long-term continuous work needs of sweeping robots, such as collision triggering, dust box positioning detection, and rolling brush start stop control, laying a solid safety control line for the intelligent and efficient operation of sweeping robots.
ZINGEAR micro switches empower smart home device upgrades with hardcore quality.
Key Features:
·Waterproof and dustproof (IP67) design
·Small in size and tight in grip
·Having global safety certification
·Long lifespan, high reliability
·Equipped with various forms of operating handles
·The types of wire connectors are complete
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
·Various installation dimensions meet different installation requirements
Technical parameters：
Operating Voltage | 125/250VAC 30VDC |
Rated Current | 5A |
Contact Resistance | 100mΩ Max. |
Insulation Resistance | 100mΩ Min. |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | customizable |
Operating Temperature | -40℃～+85℃ |
Contact Material | customizable |
Electrical Life | 50,000次 Min. |
Mechanical Life | 50,000次 Min. |
Protection Class | IP67 |
Terminal & Lever | Short roller handle |
Outline | customizable |
Withstand Voltage | 500 VAC (50~60HZ) leakage current<10mA --Between terminals. 1000 VAC (50~60HZ) current<10mA --Between terminals and non current carrying metal components --Terminal and shell |

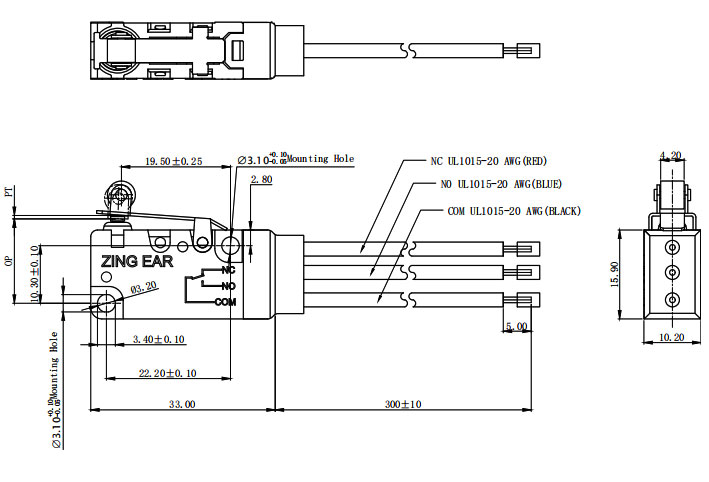

Drawings：
