"zingear Micro Switch Solution for Communication Base Station Equipment Status Detection — Building a Solid Safety Line for Long-term Stable Operation of Base Stations"

Against the backdrop of in-depth nationwide coverage of 5G communication networks, communication base stations, as the core nodes of network signal transmission, their 24/7 uninterrupted stable operation directly determines the reliability and service quality of the entire communication network. zingear drawing on years of experience in industrial-grade micro switch R&D and scenario implementation, launches a full-scenario equipment status detection micro switch solution for communication base stations. It delivers highly reliable trigger-based status feedback for core scenarios including base station cabinet door opening/closing, power module presence detection, cooling fan fault monitoring, and cabinet temperature sensing linkage, solves core pain points of base station O&M from the underlying sensing layer, drastically reduces unplanned base station shutdown risks, and assists operators in realizing efficient intelligent O&M under unattended base station conditions.

I. Directly Address Core Industry Pain Points, Solve Long-standing Challenges in Base Station O&M

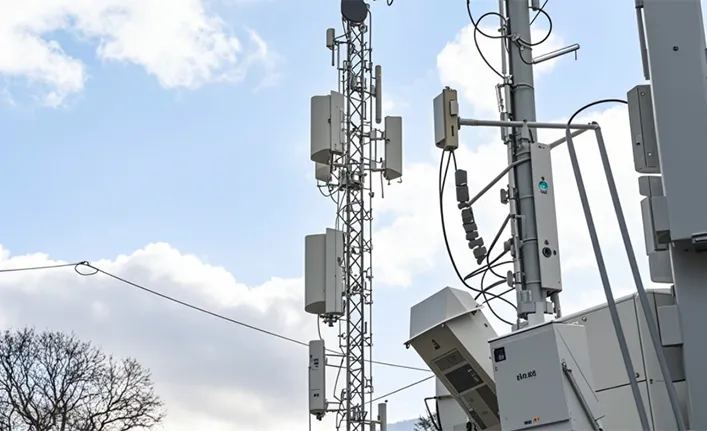

A large number of communication base stations deployed in remote outdoor areas, rooftops and underground computer rooms are generally in unattended operation status. The traditional O&M model relying on regular manual inspections can hardly meet the operation demands of current high-density 5G base stations. The industry has long been facing four core pain points:

• Lack of real-time equipment status perception: The status of key components such as base station cabinet doors, power modules and cooling systems cannot be uploaded to the O&M platform in real time. Abnormal events such as unauthorized door opening and component falling off cannot trigger alarms in the first place, which easily leads to communication interruptions and asset theft risks.

• Hidden module connection faults are hard to detect: Core components such as base station power modules and transmission boards are prone to loose connections and presence abnormalities after long-term operation. Such hidden faults cannot be quickly identified by conventional monitoring systems, and are usually passively discovered only after service interruptions, resulting in extremely high troubleshooting costs.

• Delayed response to cooling system faults: Cooling fans and dust filters are core components that ensure constant temperature operation of base station cabinets. Failures such as fan shutdown and filter blockage cannot be detected in real time, which will rapidly cause overheating inside the cabinet, accelerate aging of core boards, greatly shorten equipment service life, and even directly trigger whole-machine shutdown in severe cases.

• Passive and delayed handling of abnormal hazards: A large number of base stations are deployed in remote mountainous areas and suburban sites, with long manual inspection cycles. Minor abnormalities cannot be detected and handled in a timely manner, and small hidden dangers gradually evolve into major faults. This not only affects user communication experience, but also brings high repair costs and operator service compliance risks.

II. Full-scenario Adaptation of Zingear Micro Switches, Precisely Cover Core Base Station Detection Requirements

Huizhou Micro Switch Technology targets the long-term operation conditions and high reliability requirements of communication base stations. Based on the mature industrial-grade G3 and G5 series micro switch platform, it custom-develops a full range of dedicated micro switch products for base station status detection, which are specially optimized for different detection scenarios. Their core advantages fully match the strict unattended long-term operation requirements of base stations:

1. High Protection & Ultra-long Lifespan Design, Adapt to Complex Deployment Environments Across All Regions

Base stations are largely deployed in outdoor open-air scenarios with high humidity, heavy dust and large temperature differences. zingear dedicated base station micro switches dedicated base station micro switch adopt an IP67 integrated fully sealed structure, which can effectively resist harsh environmental impacts such as rainwater intrusion, dust accumulation and condensation corrosion, support stable continuous operation across an ultra-wide temperature range from -40°C to 85°C. The interior adopts high-wear-resistant precious metal contacts and optimized metal dome structure, with a mechanical lifespan of over 500,000 operations. No replacement is required throughout the full lifecycle, fully meeting the 10+ year long-term maintenance-free operation requirements of base stations.

2. Precise Trigger-based Status Feedback, Achieve Zero Missed Detection of Component Presence

For presence detection scenarios of components such as base station power modules, transmission boards and cabinet doors, zingear micro switches feature a high-precision actuation stroke of ±0.2mm. The moment a component is properly seated, it outputs a stable on-off signal immediately, eliminating issues such as virtual connection and signal leakage. It can accurately feed back the opening/closing status of cabinet doors and the presence status of modules. Once abnormalities such as unauthorized cabinet door opening or loose/falling off modules occur, it will immediately link the base station environment monitoring platform to trigger a remote alarm. O&M personnel can remotely locate the abnormal site in the first time, drastically shortening the fault response time.

3. Real-time Sensing of Cooling System Faults, Build a Solid Constant Temperature Defense Line for Cabinets

For status detection scenarios of base station cooling fans and dust filters, ingear micro switches can be directly integrated into the linkage structure of fan rotating shafts and the installation slots of filters. When the fan stops running, or the filter is pulled out for cleaning beyond the maintenance cycle, the switch will immediately trigger a status change signal, upload it to the environment monitoring system to link the cabinet temperature control strategy, and simultaneously push an O&M work order to remind on-site personnel to replace the filter or repair the fan in a timely manner. This avoids the risk of core board burnout caused by overheating inside the cabinet, ensures that the core base station equipment always operates in a suitable temperature range, and extends the service life of the whole machine by more than 30%.

4. Excellent Vibration & Interference Resistance Performance, Adapt to Complex Base Station Operation Conditions

Long-term operation of internal fans and power modules in base stations will generate continuous vibration. ingear micro switches adopt a reinforced internal locking structure and anti-disengagement contact design, which will not cause accidental contact disconnection and false signal alarms under long-term vibration and impact. Meanwhile, the products have passed industrial-grade EMC anti-interference tests, can resist strong electromagnetic environment interference inside base stations, ensure stable and reliable status signal transmission, and completely meet the industrial-grade reliability standards of communication equipment.

5. Compact Miniaturized Flexible Installation, Adapt to Narrow Internal Space of Base Stations

The internal space of communication base station cabinets is compact, with precise layout of various boards and components. zingear dedicated base station micro switches feature an ultra-compact miniaturized body design, supporting multiple installation methods including direct insertion, snap-fit and screw fastening. They can be flexibly embedded into various narrow spaces such as the inner side of cabinet doors, module slots, fan brackets and filter guide rails. No major modification to the original equipment structure is required to complete integration and adaptation. Meanwhile, they are compatible with automated assembly processes, with extremely high batch consistency, fully meeting the mass production demands of communication equipment manufacturers.

III. Deep Layout in Communication Industrial Track, Assist Base Station Intelligent O&M Upgrading

In recent years, Huizhou Micro Switch Technology has continuously deepened its presence in the communication industrial field, and has built a full-scenario status detection micro switch product matrix covering communication base stations, data center computer rooms, communication power equipment and other scenarios, and has established long-term stable cooperative relationships with many leading domestic communication equipment manufacturers and environment monitoring system service providers.

The full-scenario equipment status detection micro switch solution launched for communication base stations this time is an important implementation achievement of zingear in the industrial communication field, further improving the brand's application layout in the high-reliability industrial sensing track. In the future, Huizhou Micro Switch Technology will continue to focus on the development trend of intelligent communication network O&M, launch customized micro switch products for more base station segmented detection scenarios, and work together with partners in the communication industry to enhance the operation reliability of communication base stations from the underlying sensing layer, and assist the nationwide 5G communication network to realize more stable and efficient intelligent O&M upgrading.

Contact Us for Customized Solutions
Reach out to our team right now to get the full set of communication-grade micro switch solutions, which will empower your communication base station equipment to operate in an efficient, stable and secure manner.

IV. Industry FAQ

Q1: What equipment status detection scenarios are G5W11 micro switches mainly used for?
They are mainly used for the detection of cabinet door opening/closing status, module connection status and cooling fan operation status, helping base stations realize real-time monitoring and safety protection.

Q2: Is the response speed of the micro switch fast enough?
The G5W11 series has extremely fast response speed, which can complete status detection at the millisecond level, fully meeting the real-time monitoring requirements of base station equipment.

Q3: Can the micro switch be used for a long time in high temperature environments?
This series of micro switches has excellent environmental adaptability, can work stably under high temperature conditions, is wear-resistant, and adapts to high-frequency operation scenarios.

Q4: What will happen when the micro switch detects an abnormal situation?
The base station main control system will process the micro switch signal. When abnormalities (such as cabinet door opening or fan shutdown) are detected, it can issue an alarm or start the protection mechanism to ensure equipment safety.
