Product Features
Product advantages:
Key Features:
·Waterproof and dustproof (IP67) design
·Having global safety certification
·Equipped with various forms of operating handles
·Complete types of wiring terminals
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
·Various installation dimensions meet different installation requirements
Technical parameters：
Operating Voltage | 125V |
Rated Current | 5A |
Contact Resistance | 100mΩ |
Insulation Resistance | 100mΩ |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | customizable |
Operating Temperature | −40°C to +125°C |
Contact Material | customizable |
Electrical Life | 10,000～50.000times |
Mechanical Life | 1,000,000 times |
Protection Class | NO |
Operating Handle | / |
Terminal | Contact points PCB、 Optional wiring terminals |

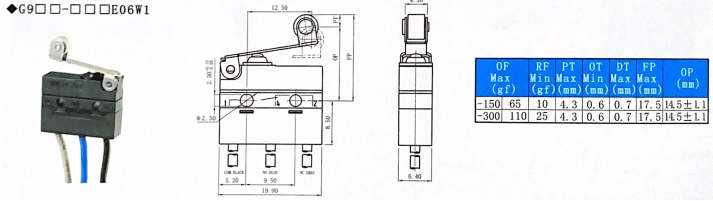

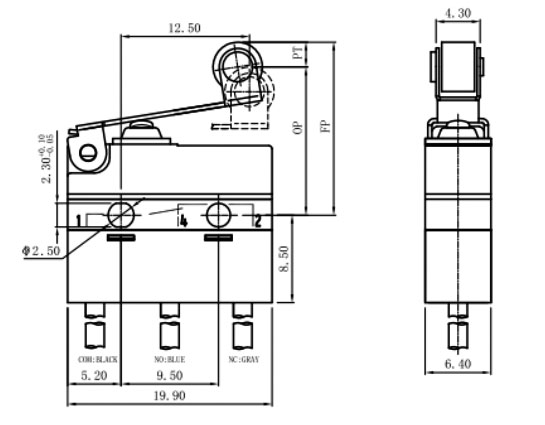

Drawings：
Product Application
Related Products
G905-150F02W1
Learn More
G905-150F03W1
Learn More
G905-150F05W1
Learn More
G905-150F06W1
Learn More
G905-150G00W1
Learn More
G905-150G01W1
Learn More
ZINGEAR Group G905-150G02W1 Industrial Equipment Micro Switch
Gasoline Detector for Industrial Equipment
Learn More
ZINGEAR Group G9105-150P00D1 High precision Micro Switch
Coin Sorting Machine for the Financial Sector
Learn More
Why choose
ZINGEAR micro switches
Global OEM supplier, trusted by European, Asian, and South American brands
Strict quality control system: IQC → IPQC → FQC → OQC
Comprehensive authentication support
Short delivery time, stable mass production
FAQ
-
The Robust G9 Waterproof Micro Switch: Design, Applications and Manufacturing Excellence by ZING EARThe G9 waterproof micro switch is a precision-engineered, sealed snap-action switch designed to operate reliably in environments where exposure to water, dust, and other contaminants is a constant challenge.
