"The Robust G9 Waterproof Micro Switch: Design, Applications and Manufacturing Excellence by ZING EAR"

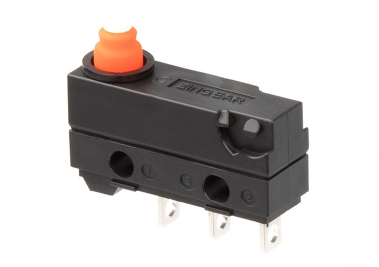

The G9 waterproof micro switch is a precision-engineered, sealed snap-action switch designed to operate reliably in environments where exposure to water, dust, and other contaminants is a constant challenge. Characterized by its compact design and high ingress protection rating (typically IP67), the G9 series is built for durability and performance in harsh conditions.
1. Introduction to G9 Waterproof Micro Switch
The G9 switch is distinct from standard micro switches due to its sealed construction, which prevents the intrusion of moisture and dust into the switching mechanism.
IP67 Rating: The defining feature of the G9 series is its IP67 certification, meaning it is totally protected against dust ingress and protected against the effects of temporary immersion in water (up to 1 meter for 30 minutes).
Compact Size: It maintains a miniature form factor, similar to the G3 or G10B series, allowing it to be integrated into space-constrained designs.
Electrical Versatility: Available with various electrical ratings (e.g., 0.1A to 3A) and contact materials (silver for power applications, gold for low-level logic circuits), making it adaptable to different power requirements.
Durable Design: Often manufactured with high-temperature resistant and robust housing materials to ensure a long mechanical and electrical life cycle.
2. Where to Apply: Plan for Integration
The G9 switch is an ideal component for "fit and forget" applications where exposure to the elements or wash-down procedures is common.
2.1 Automotive Exterior Applications:
Car Door Handles: Used in modern keyless entry systems where the switch inside the handle must survive rain, snow, and car washes.
Hood/Trunk Latches: Position detection for dashboard warnings, surviving road spray and engine bay moisture.
EV Charging Ports: Detecting when the charging flap is open or closed.
2.2 Outdoor Equipment:
Lawn Mowers & Gardening Tools: Integrated into safety handles and power triggers to withstand outdoor use.
Security Cameras: Tamper detection mechanisms or physical function buttons exposed to weather.
Automatic Irrigation Systems: Controls and sensors in valve boxes or control panels.
2.3 Industrial & Marine:
Marine Equipment: Bilge pumps, navigation light controls, and hatch sensors.
Food Processing Equipment: Machinery that undergoes regular high-pressure wash-downs where hygiene is paramount.
Industrial Joystick Controls: Used in heavy machinery where operator controls are exposed to the elements or dusty environments.
2.4 White Goods & Appliances:
Washing Machines & Dishwashers: Door locks and water level controls where water ingress is a risk.
3. ZING EAR: Micro Switch Famous Brand Supplier
Zing Ear is a widely recognized and famous brand supplier in the global micro switch market. As a source factory with decades of experience in research, development, and high-volume manufacturing, Zing Ear has established a reputation for quality and reliability.
Global Recognition: The brand is trusted by numerous international OEMs who integrate Zing Ear switches into their own final products.
Quality First: Zing Ear's reputation is built on stringent quality control and certifications from major international bodies (UL, cUL, ENEC, CQC, CE).
Innovation & Customization: They are known for providing flexible solutions, offering customized models, wiring harnesses, and actuator designs to meet unique client needs.
