1、 Core definition and functional positioning

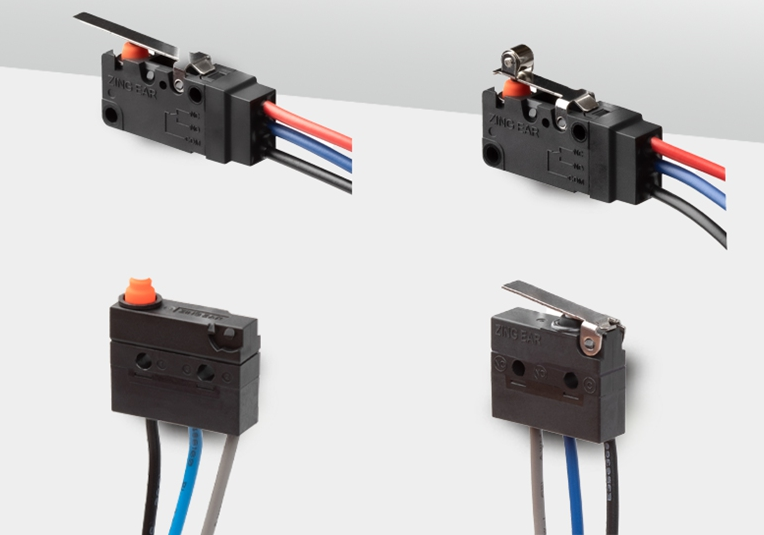

Micro Switch

As a precision control component, micro switches achieve circuit on/off through instantaneous action mechanisms. Its core feature is the extremely small distance between contacts (usually<1mm), which requires a small external force (0.98N~2.94N) to trigger, suitable for scenarios that require rapid response. For example, devices such as mouse buttons and keyboard triggers rely on their high sensitivity to achieve high-frequency operations.

Limit Switch

The Limit Switch is essentially a position detection device that triggers circuit changes through mechanical collisions or displacements. Its action force is relatively large (usually>5N), used to control the range of equipment movement or safety protection. Typical applications include machine tool travel control, elevator threshold positioning, etc., emphasizing position accuracy rather than response speed.

2、 Deep differences in working principles

Micro switch: instantaneous action mechanism

Trigger process: External force acts on the action spring through transmission components (buttons, levers, etc.). When the displacement reaches the critical point, the spring produces instantaneous bounce, causing the moving contact to quickly connect or disconnect with the fixed contact.

Reset feature: After releasing the external force, the reset spring restores the spring to its original state and switches the circuit state.

Key parameters: small contact spacing (<1mm), short action stroke (0.5mm~5mm), rapid on-off response (millisecond level response).

Limit Switch: Mechanical displacement detection

Trigger process: Moving parts (such as collision blocks and rollers) directly collide with the switch operating head, and the contact is activated through the transmission mechanism.

Reset feature: The moving parts need to be moved in reverse or manually reset, and the circuit state remains stable.

Key parameters: high action force (>5N), wide stroke range (several millimeters to several centimeters), high accuracy (± 0.1 °~± 1mm).

3、 Engineering Logic of Structural Design

Micro switch structure

Core components: action spring (made of metal materials such as beryllium bronze and stainless steel wire), contact foot (fixed contact), and reset spring (providing rebound force).

Protection Design: Waterproof (IP65+), Dustproof (IP67+), High Temperature Resistant (250 ℃~400 ℃), etc.

Typical applications: consumer electronics (mouse, keyboard), automotive electronics (car light control), medical equipment (precision instruments).

Limit Switch structure

Core components: operating head (direct acting, roller type, rotary type), transmission mechanism (lever, cam), contact system (normally open/normally closed).

Protection design: heavy-duty type (IP68+), explosion-proof type (Ex d IIC T6), corrosion-resistant type (stainless steel shell).

Typical applications: industrial control (machine tool limit), robot systems (position detection), building equipment (elevator door protection).

4、 Quantitative comparison of performance parameters

Action force

Micro switch: 0.98N~2.94N (triggered by light touch)

Limit Switch:>5N (triggered by mechanical collision)

Itinerary scope

Micro switch: 0.5mm~5mm (short stroke)

Limit Switch: A few millimeters to a few centimeters (long stroke)

precision

Micro switch: ± 0.1mm (high precision)

Limit Switch: ± 1mm (medium precision)

lifespan

Micro switch: 100000 to 10 million times (high-frequency operation)

Limit Switch: 10000 to 100000 times (low-frequency operation)

Application scenarios

Micro switches: consumer electronics, automotive electronics, medical equipment

Limit Switch: Industrial Control, Robotics, Construction Equipment

5、 Selection Strategy and Engineering Practice

Key points for selecting micro switches

Sensitivity requirement: Choose models with small contact spacing and low operating force (such as ultra small micro switches).

Environmental adaptability: Choose waterproof type for humid environments and high-temperature resistant type for high-temperature environments.

Lifetime requirement: Select products with a lifespan of over 1 million cycles for high-frequency operation scenarios.

Key points for selecting Limit Switch

Position accuracy: Choose direct or roller type to ensure an accuracy of ± 0.1mm.

Load capacity: Select contact capacity based on the control circuit current (e.g. 10A 380VAC).

Protection level: Choose IP68+or explosion-proof for harsh environments.

6、 Analysis of Industry Application Cases

Micro switch case

Gaming Mouse: Equipped with an ultra small micro switch (size 12.8mm × 5.8mm × 6.5mm), it can achieve 10 high-frequency clicks per second and has a lifespan of up to 3 million clicks.

Automotive Electronics: High temperature resistant micro switch (250 ℃) is used for car light control and has passed IP67 protection certification.

Limit Switch Case

Numerical Control Machine Tool: Direct acting Limit Switch (IP68) is used for worktable stroke control, with an accuracy of ± 0.5mm.

Elevator system: Roller type Limit Switch (IP67) detects door position to ensure an error of ± 1mm.

7、 Summary and Trend Outlook

Fundamental difference: Micro switches are "sensitive control components", while Limit switches are "position detection devices".

Technological trend: Micro switches are developing towards ultra miniaturization (size<10mm) and low power consumption (current<1 μ A); Limit Switch is evolving towards intelligence (wireless transmission, self diagnosis).

Selection suggestion: Choose the appropriate switch according to the application scenario (high/low frequency, accuracy/load) to avoid functional mismatch.

Through the above analysis, the essential differences in principle, structure, performance, and application between micro switches and Limit switches can be clearly distinguished, providing professional basis for engineering selection.
