"How to Choose the Appropriate Micro Switch in the Automotive Industry"
Micro switches are essential, albeit hidden, components in modern vehicles. They provide vital feedback for safety systems, comfort features, and security mechanisms. Because a failure can compromise safety or function, selection criteria are significantly stricter than those for consumer electronics.
Here’s how to choose the appropriate micro switch for automotive use:
1. Identify the Specific Automotive Application
The location of the micro switch determines the required robustness and feature set. Different applications have distinct needs:
Vehicle Charging Port Cover
The switch here must detect if the cover is securely closed for safety and security. It requires:
- Environmental Protection: High IP rating (IP67) to withstand rain, dust, and wash-downs.
- Temperature Tolerance: Operation in outdoor temperature extremes.
- Durability: Resistance to physical tampering or accidental impacts.
Engine Hood Lock
This is a critical safety interlock application. The switch signals the vehicle’s computer if the hood is latched correctly.
- Reliability: Extremely high reliability (low failure rate) is non-negotiable.
- Vibration/Shock Resistance: Must withstand engine vibrations and road shock.
- Heat Resistance: Must tolerate high under-hood temperatures.
Vehicle Seat Lock
Used to confirm the seat is properly locked in place after adjustment for safety in a collision.
- Precision: Consistent operating force and precise activation point.
- Mechanical Durability: Ability to perform reliably for thousands of adjustment cycles.
Chrysler Makeup Mirror (Vanity Mirror)
While less critical than a hood lock, this application demands durability and consistent electrical performance to control lighting.
- Miniaturization: Small form factor to integrate seamlessly into tight mirror assemblies.
Consistent Operation: Smooth user interaction and quiet actuation.
2. Prioritize Environmental Robustness (IP Ratings)
The primary discriminator between standard and automotive micro switches is the ability to operate in harsh conditions. For applications exposed to the elements, water, dust, or engine fluids, a sealed switch is mandatory.

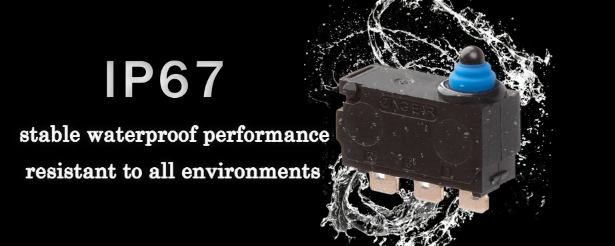

Look for IP67 or IP68 Ratings: A product like the G10B Waterproof Micro Switch Series is specifically designed for these environments, offering robust sealing against water ingress, making it ideal for charging port covers or chassis applications. The sealed design protects the internal contacts from corrosion and contamination.
3. Ensure Compliance with Automotive Standards
Automotive manufacturers demand adherence to specific industry qualifications to ensure consistency and reliability across their supply chain.
- AEC-Q200 Qualification: Verify that the chosen micro switch model is AEC-Q200 qualified. This standard dictates strict stress tests for passive electronic components, ensuring they meet the high bar for vehicle reliability.
- IATF 16949 Manufacturing: Source components from manufacturers who adhere to the IATF 16949 quality management system, which guarantees rigorous process controls and traceability.
- Functional Safety (ISO 26262): For safety-critical functions like engine hood locks, the manufacturer must provide data that helps the system designer meet the required Automotive Safety Integrity Level (ASIL).
4. Match Performance Specifications to the Application
Beyond durability, the switch must perform the exact function required by the electrical system:
- Electrical Load: Ensure the switch's contact rating (amperage/voltage) matches the circuit it controls. Automotive systems often use low-current signaling, but certain power applications may require higher ratings.
- Mechanical Life: Select a switch rated for a high number of mechanical cycles (millions of operations) to ensure it lasts the vehicle’s life.
ZINGEAR: Your Reliable Partner for Automotive Industrial-Grade Micro Switches
As a specialized supplier in automotive electronics, ZINGEAR focuses on the R&D and manufacturing of industrial-grade microswitches. With high-reliability products and customized services as our core strengths, we provide stable and efficient solutions for global automakers.
For customized solutions tailored to your automotive projects (such as vehicle charging port covers, hood latches, door locks, wiper systems, or seat latches).
