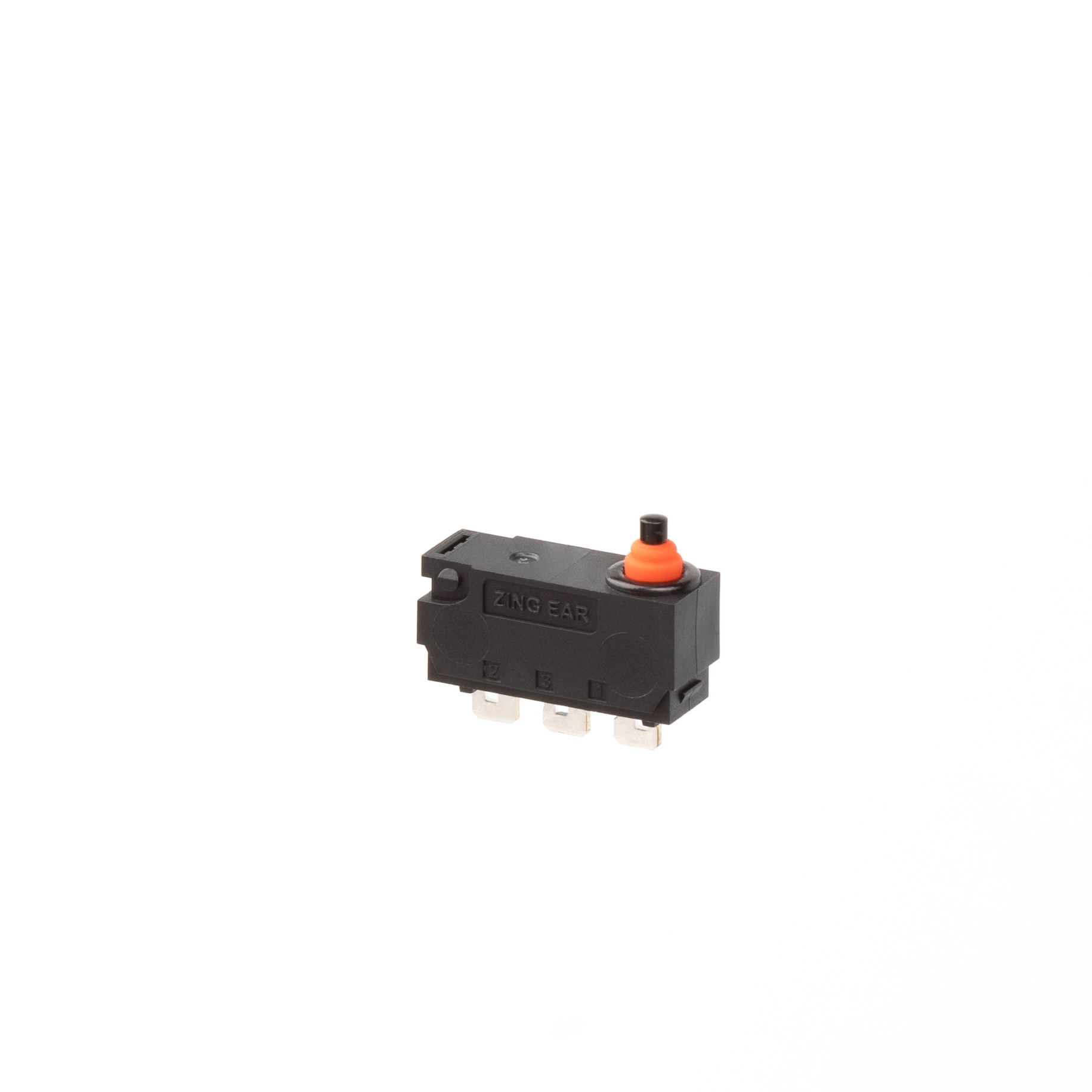

ZINGEAR micro switch G303-130S00A1 is a high-reliability switch specifically designed for automotive door lock scenarios. It focuses on the core requirements of vehicle door locks, including stable performance, extended lifespan, and strict safety compliance, serving as the first line of defense for driving safety.
Product advantages:
1.Core performance: Adapt to the harsh working conditions of automobiles
Using high-quality wear-resistant materials and precision manufacturing processes, it ensures consistent operation in complex environments such as vehicle vibration and temperature changes.
The durable contact design, coupled with low resistance characteristics, ensures precise and rapid signal transmission, facilitating quick response of the door lock mechanism to switch commands.
Enhanced with high mechanical durability, it supports long-term continuous use and meets the application requirements of high-frequency start-stop operations in automotive door locks.
2.Scenario value: safeguarding the security and stability of door locks
As a key control component of the automotive door lock system, this switch ensures reliable door locking and smooth unlocking through precise triggering signals, preventing accidental opening during driving. The product meets automotive industry safety compliance standards, combining IP protection and wide temperature adaptability, and can easily handle diverse working conditions such as rainy days and high temperatures, enhancing the overall safety performance of the vehicle.
3.Brand guarantee: dual support from quality and compliance
Relying on ZINGEAR Group's 40 years of experience in precision switch research, development, and manufacturing, our products have passed ISO certification and global safety standards, with automated monitoring throughout the entire production process. The application of environmentally friendly materials ensures compliance with RoHS standards, safeguarding product reliability while also adhering to the concept of green manufacturing. We provide automotive manufacturers with high-quality components that combine performance and compliance.
·Waterproof and dustproof (IP67) design
·Having global safety certification
·Equipped with various forms of operating handles
·Complete types of wiring terminals
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
Operating Voltage | 48VDC/12VDC |
Rated Current | 0.1A/3A |
Contact Resistance | 100mΩ Max. |
Insulation Resistance | 100mΩ Min. |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | customizable |
Operating Temperature | -40℃～+85℃ |
Contact Material | customizable |
Electrical Life | 100,000次 Min. |
Mechanical Life | 500,000次 Min. |
Protection Class | IP67 |
Terminal & Lever | customizable |
Outline | customizable |
Withstand Voltage | 500 VAC (50~60HZ) leakage current<10mA --Between terminals. 1000 VAC (50~60HZ) current<10mA --Between terminals and non current carrying metal components --Terminal and shell |
