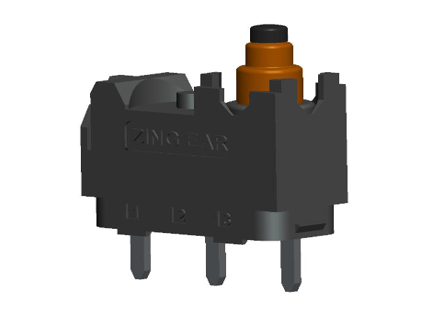

From small automation instruments to heavy industrial control equipment, ZINGEAR G306A sealed ultra small micro switch builds a stable operation foundation for various automation equipment with excellent quality. It is a cost-effective electrical control solution provided by Jinyu Technology for industry customers.

I. Core Product Positioning UpgradeAs the benchmark micro switch from Zingear Group, the G306A series achieves multi-dimensional performance iteration and upgrades based on inheriting existing technical advantages, precisely matching the demands of high-end manufacturing scenarios:

● Triple Core Protection for Extreme Environment Adaptation:

Builds a comprehensive protection system with all-round guarantees from structure to materials: It adopts an IP67-rated fully sealed design to effectively block dust and moisture ingress; Contacts use gold plating with inert gas protection, significantly enhancing conductivity and corrosion resistance; The outer shell is made of LCP high-temperature resistant engineering plastic, enabling stable operation across a wide temperature range of -40℃~120℃, suitable for complex working conditions like new energy and industrial control.

● Ultra-Long Lifespan + Silent Design, Balancing Durability and User Experience:

Achieves breakthroughs in both core performance and user experience: Laboratory tests verify a high electrical lifespan of 200,000 cycles, far exceeding industry standards and ensuring long-term stable operation; it perfectly suits scenarios with stringent noise requirements, such as smart home appliances and new energy vehicle interiors.

II. Deep Dive into Key Technical Characteristics

1.Comprehensive Upgrade in Sealing and Weather Resistance Design:

Builds a multi-layer protection system to meet extreme environment usage demands:

● Dual Sealing Protection:

The terminal area uses a dual-protection structure of "silicone sealand + epoxy resin potting," fully compliant with the IP67 certification requirements of the IEC 60529 standard. It can withstand immersion in 1 meter of water for 30 minutes without leakage, effectively blocking moisture and dust ingress.

● Extreme Cold Environment Adaptation:

In -40℃ low-temperature environments, the elastic attenuation rate of the contact spring is controlled within 5%.

2.Optimized Long-Stroke Mechanical Structure: Focuses on mechanical performance stability to tackle complex working condition challenges:

●Precise Dynamic Force Control:

Innovatively adopts a dual-spring reset system combined with a scientifically optimized lever transmission ratio

●Expanded Handle Selection: Provides multiple specifications and functional handle options to meet the triggering needs of different operation scenarios (can be further refined based on specific applications).

3.Main features:

●Waterproof and dustproof (IP67) design

●Having global safety certification

●Equipped with various forms of operating handles

●The types of wire connectors are complete

Conclusion: Through core technology upgrades, expanded customization capabilities, and strengthed safety performance, the G306A series micro switch comprehensively matches the core requirements of the BYD charging port cover project for high reliability, strong environmental adaptabilit, and precise contol. It is recommended as the primary supporting solution to advance cooperation.

Why choose Zinger switch?

Global OEM supplier, trusted by European, Asian, and South American brands

Strict quality control system: IQC → IPQC → FQC → OQC

Comprehensive authentication support

Short delivery time, stable mass production

Zing Ear is a leading ODM/OEM sourcing factory in China. Its business model focuses on providing comprehensive customized switch solutions for global customers.

Tags: Sealed micro switch IP67 protection switch new energy vehicle charging port cover switch industrial automation switch explosion-proof access control switch
