ZINGEAR G303-130S00A52 Automotive Micro Switch - Widely Used in Various Door Locks for Electric Vehicles

ZINGEAR G303-130S00A52 Automotive Micro Switch

Widely Used in Various Door Locks for Electric Vehicles

ZINGEAR G303-130S00A52 is a high reliability micro switch specially designed for applications such as electric vehicles that require strict requirements for stable performance, long-lasting lifespan, and safety compliance.

Relying on high-quality material selection and precision manufacturing processes, this switch can maintain stable operation performance in complex consumer and industrial environments, perfectly adapting to the demanding working conditions of electric vehicles. It is equipped with durable contact design, which combines the advantages of low resistance conduction and high mechanical durability, and can withstand long-term continuous high-frequency start stop operations, effectively reducing the risk of equipment failure.

G303-130S00A52
G303-130S00A52

Product Features

Product advantages:

It is worth mentioning that the product has excellent waterproof and dustproof performance, even in humid and dusty outdoor or car environments, it can still ensure reliable triggering and build a safety line for the stable operation of the tram electrical system. Jinyu empowers product quality with professional technology and provides high-performance and highly reliable micro switch solutions for electric vehicles and various industrial fields.


Key Features:‌

·Waterproof and dustproof (IP67) design

·Having global safety certification

·Equipped with various forms of operating handles

·Complete types of wiring terminals

·Widely used in fields such as automotive control, home appliance control, industrial control, etc


Technical parameters:

 Operating Voltage

  12VDC

 Rated Current

  3A

 Contact Resistance

  100mΩ Max.

 Insulation Resistance

  100mΩ Min.

 Contact Form

  Single Knife Double Throw (SPDT)

 Operating Force (OF)

  customizable

 Operating Temperature

  -40℃~+85℃

 Contact Material

  customizable

 Electrical Life

  100,000次 Min.

 Mechanical Life

  500,000次 Min.

 Protection Class

  IP67

 Terminal & Lever

  customizable

 Outline

  A2 type non positioning column switch

 Withstand Voltage

  500 VAC (50~60HZ) leakage current<10mA

  --Between terminals.

  1000 VAC (50~60HZ) current<10mA

  --Between terminals and non current carrying metal components

  --Terminal and shell

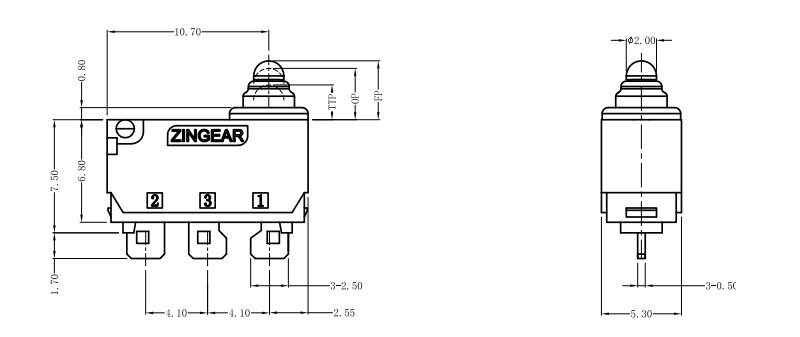

Drawings:
