Product advantages:
Durable contact design effectively improves the stability of current conduction and reduces the risk of poor contact; Low resistance characteristics, reducing power loss, ensuring efficient and accurate signal transmission; Supported by high mechanical durability, it can withstand tens of thousands of opening and closing operations, meeting the long-term continuous use needs of car door locks and significantly reducing maintenance costs in the later stage.
ZINGEAR G303-130K00A6 micro switch provides a safe and reliable core control solution for automotive door lock systems with high-precision triggering response and long service life.
Core functions: Lock status detection and signal feedback, automatic on-off control for vanity mirror lighting.
Core advantages: IP67 weather-resistant protection, consistent and precise triggering, long service life with high reliability, compact size for easy assembly.
Solutions to pain points: Effectively solves problems of easy failure due to insufficient protection, unstable triggering caused by installation deviation, high after-sales rate from short service life, and poor performance in extreme environments.
Key Features:
·Waterproof and dustproof (IP67) design
·Having global safety certification
·Equipped with various forms of operating handles
·Complete types of wiring terminals
Technical parameters:
Operating Voltage | 12VDC |
Rated Current | 3A |
Contact Resistance | 100mΩ |
Insulation Resistance | 100mΩ |
Contact Form | SPDT single-stage dual throw |
Operating Force (OF) | customizable |
Operating Temperature | -40℃~+80℃ |
Contact Material | customizable |
Electrical Life | 100,000次 Min. |
Mechanical Life | 500,000次 Min. |
Protection Class | IP67 |
Terminal & Lever | Contact points PCB、 Optional wiring terminal |
Outline | customizable |

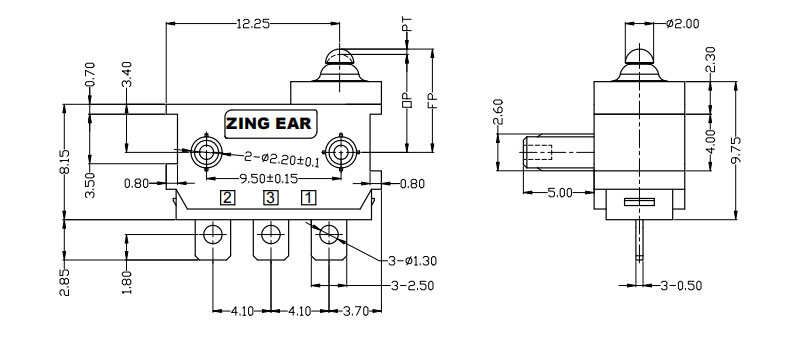

Drawings:
