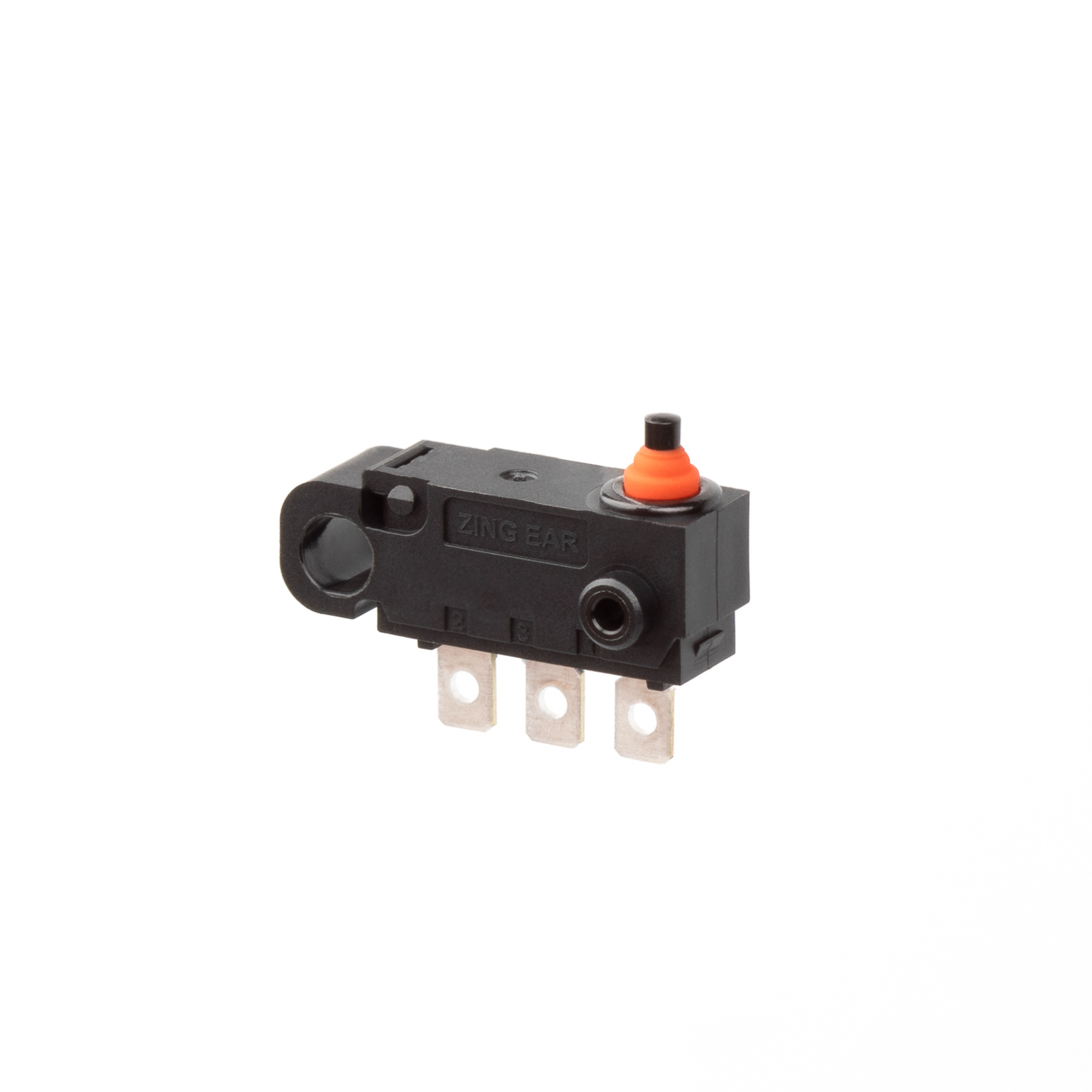

Product Category: G303 Series Automotive-grade Lever-actuated Ultra-compact Micro Switch, Travel Sensing Component for Vehicle Interior Mechanisms
Application Scenarios: Glove box lighting triggering, armrest box locking detection, vehicle sunglass case opening-closing induction, rear storage box status monitoring
Core Functions: Intelligent recognition of opening-closing status, automatic on-off of lighting circuit, in-place locking signal feedback, accurate verification of mechanism status
Core Advantages: Flexible lever-actuated triggering, adapted to side mounting in narrow spaces, low operating force with good hand feel, automotive-grade weather and vibration resistance
Pain Points Solved: Installation limitation of direct-press structure, poor manual operation experience, triggering resistance damaging texture, failure easily caused by temperature variation and bumping
Product advantages:
The product uses high-quality raw materials and precision manufacturing processes to ensure quality from the source and maintain stable and consistent operating performance in long-term continuous use. The durable contact design it is equipped with, combined with low resistance characteristics, not only reduces power loss, but also greatly improves the mechanical durability of the switch, meeting the high-frequency start stop needs of household appliances.
Whether it is water related household appliances such as washing machines and dishwashers, or kitchen and bathroom appliances such as range hoods and ovens, ZINGEAR G303-130K00A7 micro switches can become the core electronic control preferred component of household appliances with excellent performance and reliable quality.
Key Features:
·Waterproof and dustproof (IP67) design
·Having global safety certification
·Equipped with various forms of operating handles
·The types of wire connectors are complete
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
Technical parameters：
Operating Voltage | 12VDC |
Rated Current | 3A |
Contact Resistance | 100mΩ Max. |
Insulation Resistance | 100mΩ Min. |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | customizable |
Operating Temperature | -40℃～+85℃ |
Contact Material | customizable |
Electrical Life | 100,000次 Min. |
Mechanical Life | 500,000次 Min. |
Protection Class | IP67 |
Terminal & Lever | handleless |
Outline | M3 type positioning column switch |

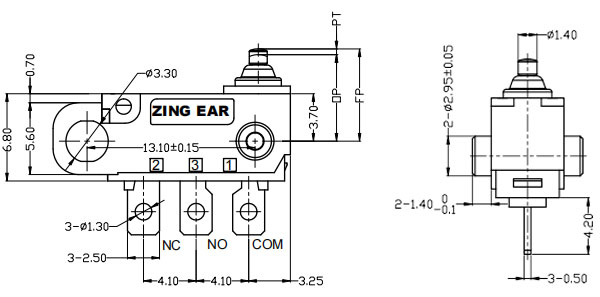

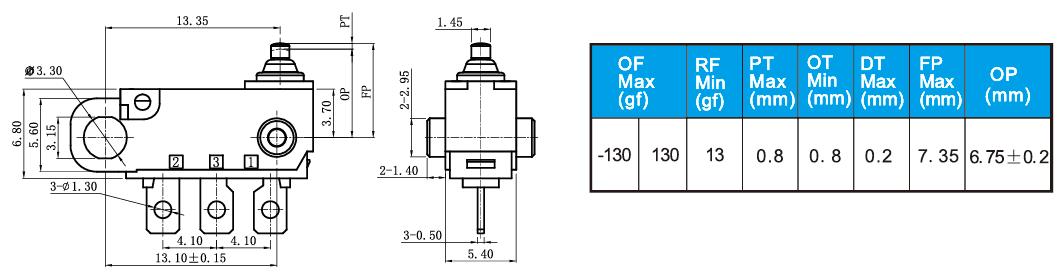

Drawings：
