Product advantages:

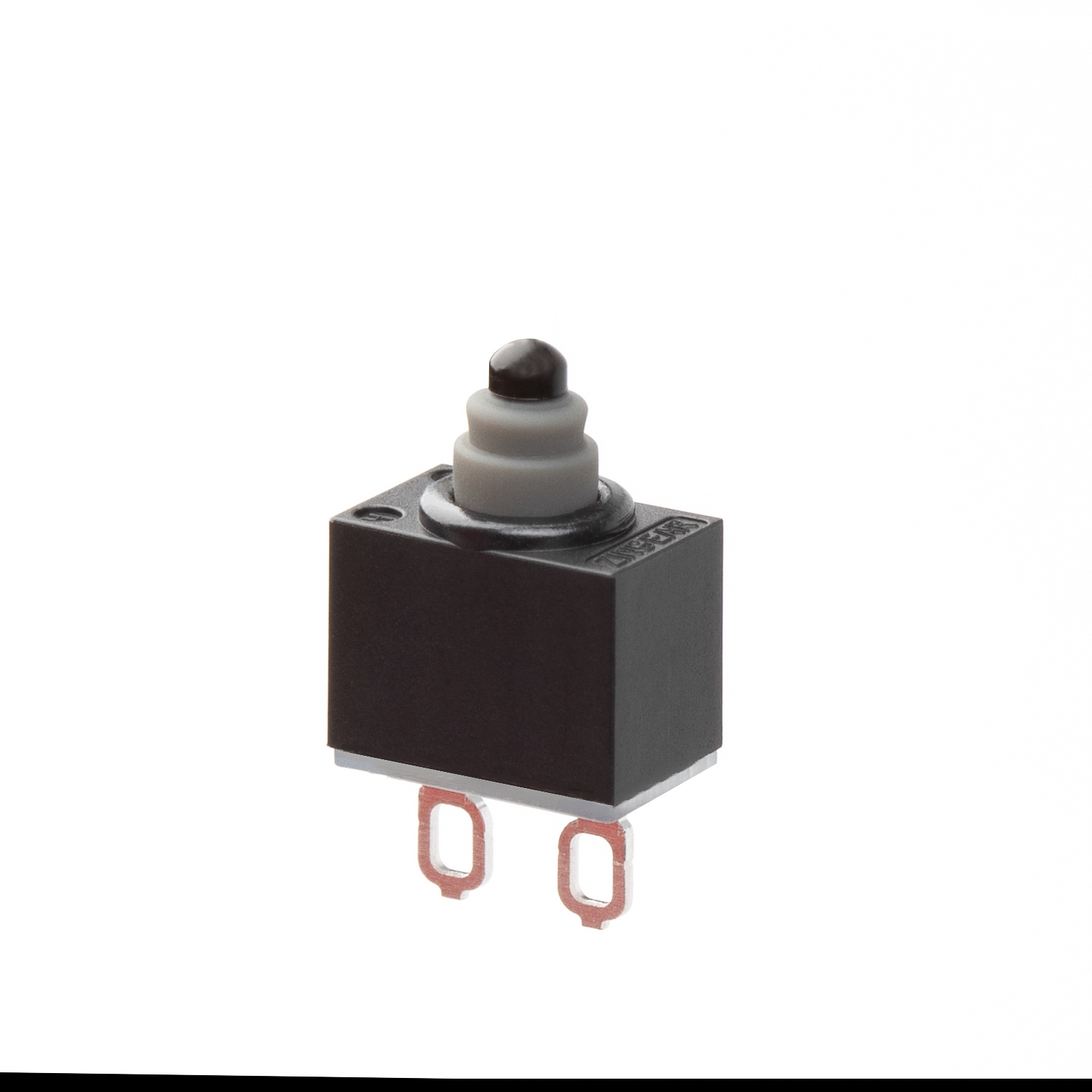

Durable silver alloy contacts significantly reduce contact resistance and minimize heat loss; High mechanical durability can withstand tens of thousands of on-off operations, meeting long-term continuous use requirements. From sensor triggering in smart homes to signal control in automated production lines, ZINGEAR G304-150V00C1 provides reliable switch solutions for various scenarios with excellent quality, demonstrating the hardcore strength of Jinyu micro switches in precision and durability.
Application Scenarios: Electric seat adjustment limit, seat belt buckle detection, seat memory and welcome function triggering
Core Functions: Seat adjustment overload protection, seat belt locking status perception, seat position signal calibration and feedback
Core Advantages: Easy alignment for vertical installation, consistent contact triggering, high durability and long service life, stable vibration and temperature resistance performance
Pain Points Solved: Mechanism damage caused by over-adjustment, false or missing detection reports, rapid performance degradation under high-frequency use, unstable signals in vibration environments
Key Features:
·Waterproof and dustproof (IP67) design
·Having global safety certification
·Equipped with various forms of operating handles
·The types of wire connectors are complete
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
Technical parameters：
Operating Voltage | 12V DC/5V DC |
Rated Current | 0.1A/50μA |
Contact Resistance | 200mΩ Max. |
Insulation Resistance | 100MΩ Min. |
Contact Form | SPST-NO |
Operating Force (OF) | 150gf Max. |
Operating Temperature | -40℃～+85℃ |
Contact Material | NO |
Electrical Life | 300,000次 Min. |
Mechanical Life | 300,000次 Min. |
Protection Class | IP67 |
Terminal & Lever | customizable |
Outline | NO |
Withstand Voltage | 500 VAC (50~60HZ) leakage current<10mA --Between terminals. 1000 VAC (50~60HZ) current<10mA --Between terminals and non current carrying metal components --Terminal and shell |

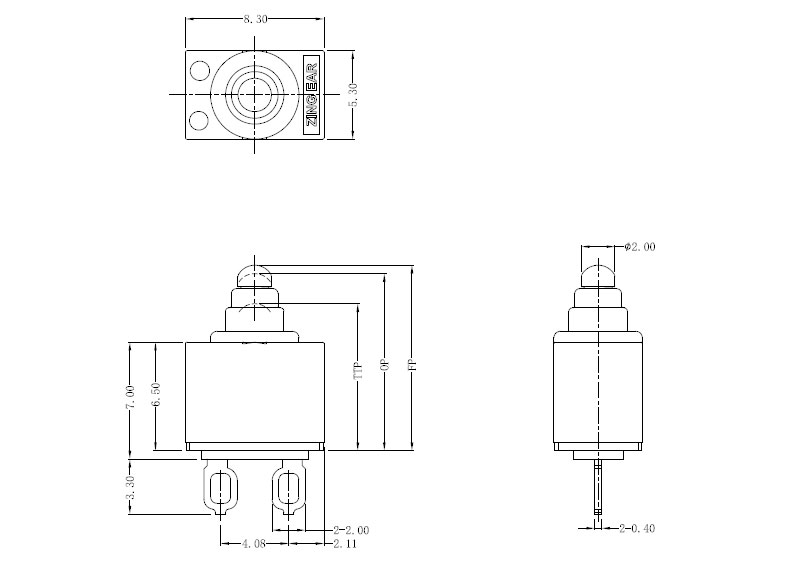

Drawings：
