ZINGEAR G303B-130P00A26C ultra small waterproof and dustproof micro switch is a high reliability switch product specially designed by ZINGEAR for application scenarios that pursue stable performance, long service life, and strict safety compliance.
ZINGEAR， Empower every precise trigger with exquisite quality.
Product Category: G303B Series Automotive-grade Rocker-actuated Ultra-compact Micro Switch, Embedded Locking Sensing Component for Side Door Lock Bodies

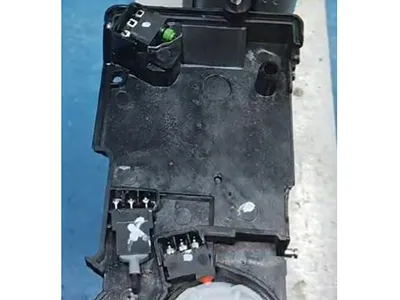

Application Scenarios: Side door lock in-place locking detection, door closing in-place verification, lock body unlocking status recognition, child lock mechanism monitoring
Core Functions: Dual-status recognition of locking and unlocking, accurate verification of door closing, lock body logic signal feedback, driving door locking safety self-check
Core Advantages: Flexible rocker-actuated triggering, adapted to embedded installation in narrow lock bodies, resistance to door temperature variation and bumping, high durability for high-frequency opening and closing
Pain Points Solved: Easy offset of direct-press triggering, severe installation limitation in narrow cavities, easy misjudgment in bumping environment, short service life under frequent opening and closing
Product advantages:
Designed with an ultra small body, breaking through installation space limitations, while integrating waterproof and dustproof core protection capabilities, it can handle complex working conditions in multiple scenarios such as consumer electronics and industrial control with ease. The product selects high-quality raw materials and uses precision manufacturing processes to ensure consistent performance of the switch during long-term continuous operation from the source, eliminating potential faults caused by environmental interference.
It is equipped with a durable contact structure that combines low resistance transmission characteristics with high mechanical durability, and can withstand high-frequency on-off operations, greatly reducing equipment maintenance costs. More trustworthy is that the switch has passed global authoritative safety certification, fully meeting international market access standards, providing equipment manufacturers with compliant, stable, and cost-effective switch solutions.
·Waterproof and dustproof (IP67) design
·Having global safety certification
·Equipped with various forms of operating handles
·Complete types of wiring terminals
Operating Voltage | 48VDC125/250VAC/12VDC |
Rated Current | 0.1A/3A |
Contact Resistance | 100mΩ Max. |
Insulation Resistance | 100mΩ Min. |
Contact Form | SPST-NC |
Operating Force (OF) | 180gf Max. |
Operating Temperature | -40℃～+85℃ |
Contact Material | customizable |
Electrical Life | 100,000次 Min. |
Mechanical Life | 500,000次 Min. |
Protection Class | IP40 |
Terminal & Lever | customizable |

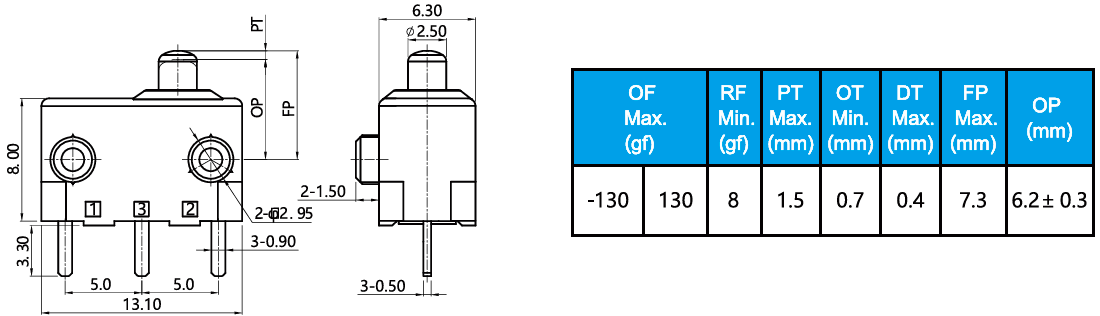

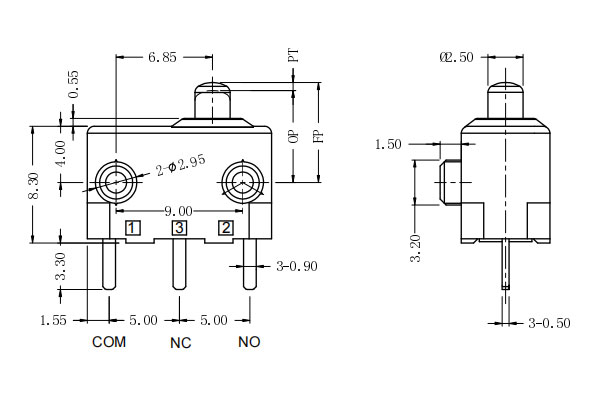

Outline | D2 type right positioning column |
Withstand Voltage | 500 VAC (50~60HZ) leakage current<10mA --Between terminals. 1000 VAC (50~60HZ) current<10mA --Between terminals and non current carrying metal components --Terminal and shell |
ZINGEAR micro switches
Global OEM supplier, trusted by European, Asian, and South American brands
Strict quality control system: IQC → IPQC → FQC → OQC
Comprehensive authentication support
Short delivery time, stable mass production
