Core Advantages:
· High-wear-resistant contacts minimize contact resistance, ensuring stable and efficient current transmission.
· Exceptional mechanical durability withstands prolonged, high-frequency operations, significantly extending product lifespan and reducing maintenance costs.
· Fast response accurately captures triggering signals, providing critical support for the EV control system's sensitive feedback.

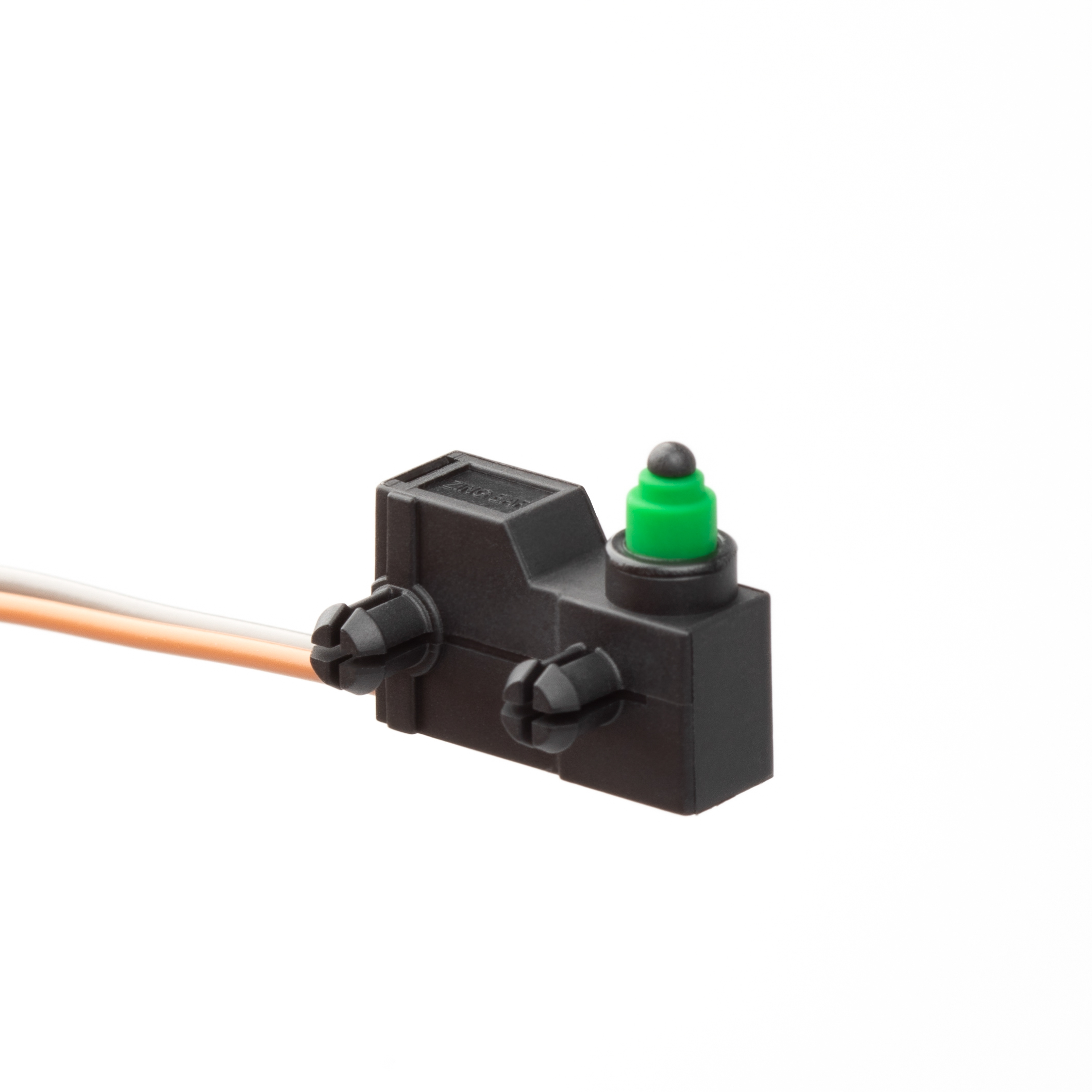

· From industrial automation equipment to core components of new energy vehicles, the ZINGEAR G305-130F00A34D-FL serves as a stable and reliable solution for equipment · upgrades across various fields.
Core Functions: Steering lock lock/unlock in-place detection, motor stall protection control, vehicle anti-theft logic verification
Core Advantages: Lead-wired design with strong vibration resistance, ultra-compact size for easy embedding, high contact triggering precision, high frequency resistance and long service life
Pain Points Solved: Abnormal startup caused by position detection deviation, loose wiring in vibration environment, difficult layout in narrow spaces, rapid lifespan degradation under frequent operations
Key Features:
· Waterproof and dustproof (IP67) design
· Global safety certifications
· Available with various actuator types
· Wide range of terminal options
· Widely used in automotive control, appliance control, industrial control, and more.
Technical parameters：
Operating Voltage | 24V DC/12V DC |
Rated Current | 2A/4A |
Contact Resistance | 500mΩ Max. |
Insulation Resistance | 100MΩ Min. |
Contact Form | SPDT single-stage dual throw |
Operating Force (OF) | 200gf Max. |
Operating Temperature | -40℃～+85℃ |
Contact Material | customizable |
Electrical Life | 10,000次 Min. |
Mechanical Life | 500,000次 Min. |
Protection Class | IP67 |
Terminal & Lever | NO |
Outline | customizable |
Withstand Voltage | 500V AC(50～60HZ) |
Drawings：
