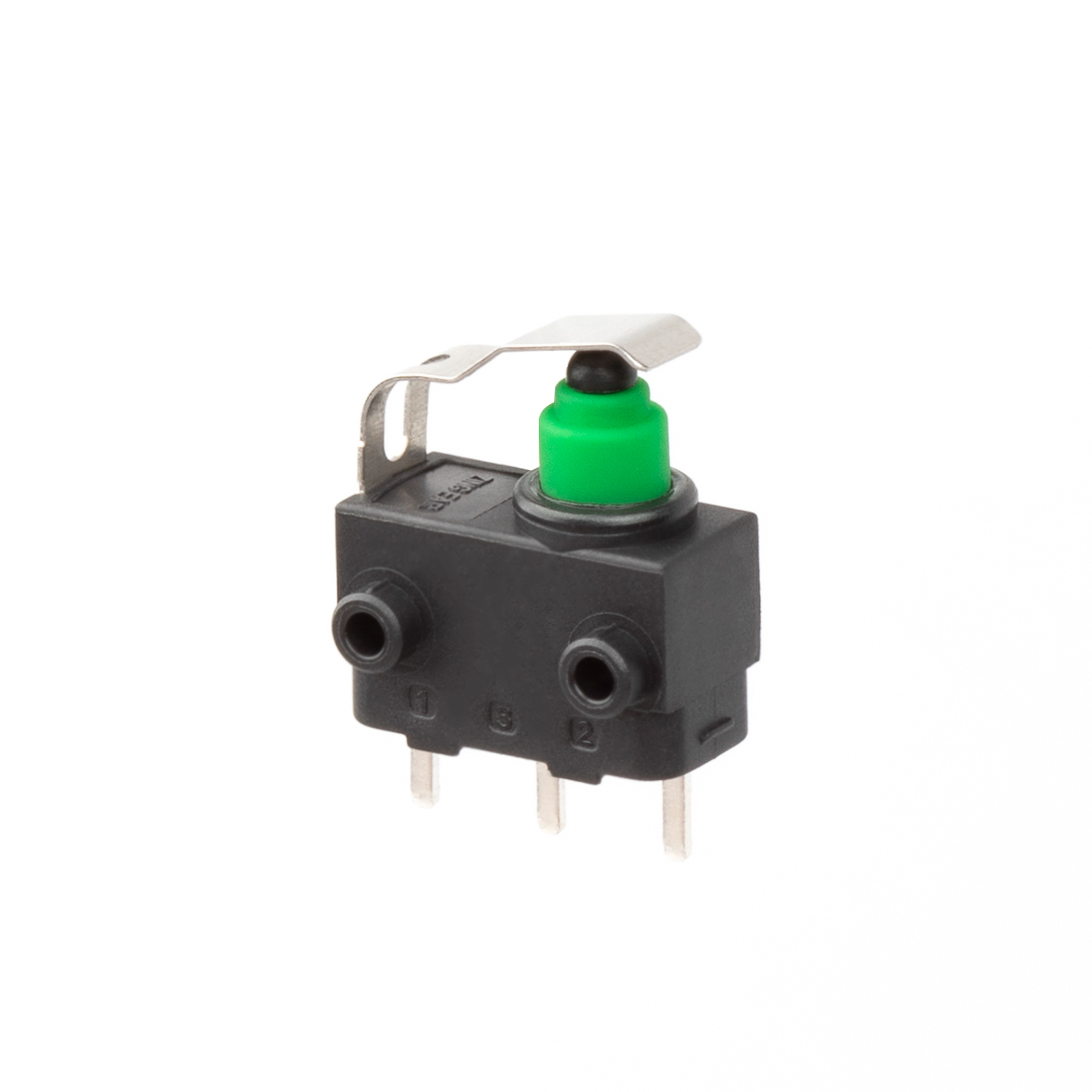

Product Category: G303 Series Industrial-grade Long-travel Micro Switch, Dedicated Detection Component for Construction Machinery and Warehouse Vehicles
Application Scenarios: Forklift handle control and mast limit, electric pallet truck traveling and lifting control, loader operation and gear detection
Core Functions: Operation instruction signal acquisition, lifting stroke limit protection, gear status feedback, mechanism overload protection
Core Advantages: Large tolerance adaptation for long travel, high protection against harsh environments, long service life with high-frequency operation resistance, strong vibration and impact resistance
Pain Points Solved: Easy failure in harsh environments, unstable triggering under large tolerance, easy mechanism damage without limit protection, short service life under high-frequency operations
Product advantages:
Core advantages: stable and durable, suitable for home appliance scenarios
The combination of high-quality materials and precise manufacturing processes ensures continuous and stable operation in everyday household use, avoiding frequent malfunctions.
Equipped with a durable contact design and low resistance characteristics, the signal transmission is fast and precise, ensuring smooth response to the automatic curtain opening and closing action.
Enhanced with high mechanical durability, it can withstand long-term continuous start-stop operations and frequent use, thereby extending the overall service life of the automatic curtain.
Safety and Compliance: Assurance and Protection for Home Use
Adhering to strict safety compliance standards, it is crafted from flame-retardant and eco-friendly materials, complying with safety regulations in the home appliance industry and eliminating potential safety hazards during use. Whether in daily household environments or prolonged power-on scenarios, it provides stable and reliable control support, laying a solid foundation for the safe and intelligent operation of automatic curtains.
Scene adaptation: the core of precise control for automatic curtains
As a key control component of automatic curtains, it can precisely detect the travel position, achieve limit control of curtain opening and closing, and prevent motor damage from overload. With its compact size and stable performance, it can be seamlessly integrated into various automatic curtain control systems, providing a more worry-free and durable smart opening and closing experience, suitable for various scenarios such as home and office use.
Key Features:
·Waterproof and dustproof (IP67) design
·Having global safety certification
·Equipped with various forms of operating handles
·Complete types of wiring terminals
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
Technical parameters：
Operating Voltage | 48VDC/12VDC |
Rated Current | 0.1A/3A |
Contact Resistance | 100mΩ Max. |
Insulation Resistance | 100mΩ Min. |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | customizable |
Operating Temperature | -40℃～+85℃ |
Contact Material | customizable |
Electrical Life | 100,000次 Min. |
Mechanical Life | 500,000次 Min. |
Protection Class | IP67 |
Terminal & Lever | customizable |
Outline | customizable |
Withstand Voltage | 500 VAC (50~60HZ) leakage current<10mA --Between terminals. 1000 VAC (50~60HZ) current<10mA --Between terminals and non current carrying metal components --Terminal and shell |

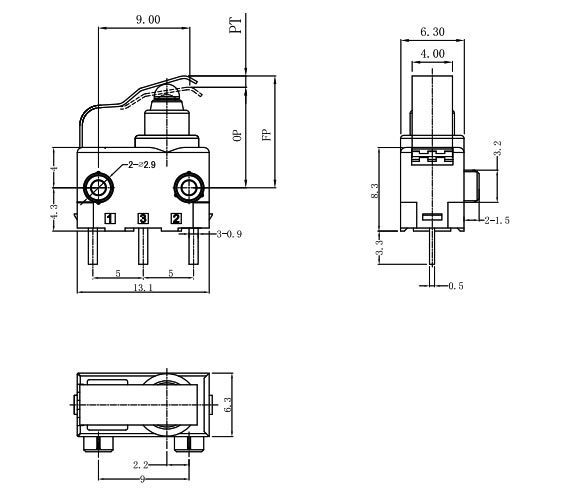

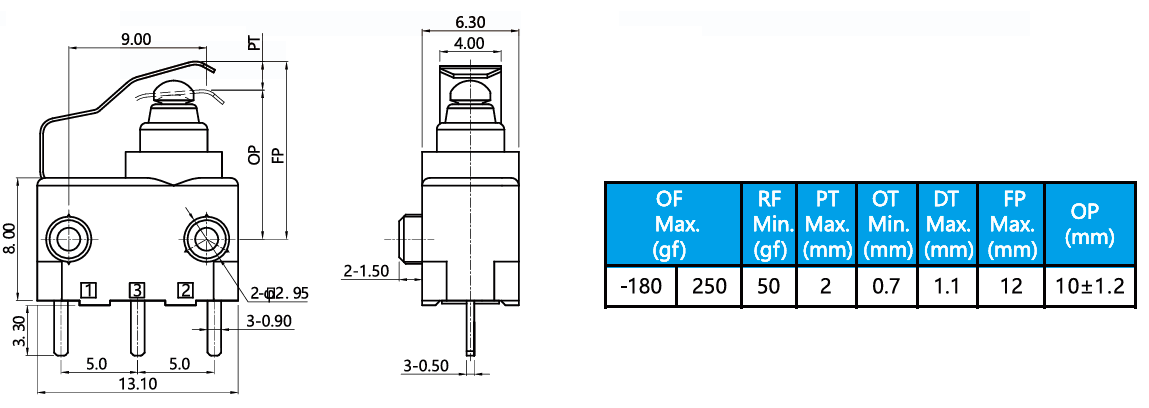

Drawings：
