Product Category: G303 Series Automotive-grade Ultra-compact 3PIN Micro Switch Sensor, Dedicated Detection Component for Hood Locks
Application Scenarios: Main hood lock locking detection, secondary safety lock engagement detection, engine compartment cover status feedback, anti-theft abnormal trigger monitoring
Core Functions: Dual-channel acquisition of main lock status, secondary lock closing verification, instrument unclosed reminder triggering, anti-theft system linked alarm
Core Advantages: 3PIN dual-channel redundant output, ultra-compact size for easy embedding, high protection against engine compartment environment, long service life with precise triggering
Pain Points Solved: Misjudgment caused by single-channel failure, difficult layout in narrow spaces, easy failure in engine compartment environment, hidden dangers due to missing unclosed reminder
Product advantages:
The product is equipped with durable contact design, which has low resistance transmission characteristics and excellent mechanical durability. It can withstand long-term high-frequency start stop operations of household appliances, effectively reducing the probability of equipment failure and providing solid guarantee for the quality upgrade and service life extension of household appliance products.
As a masterpiece of Jin Yu's deep cultivation in the field of micro switches, G303-130S36A3 achieves efficient integration in the limited interior space of home appliances with its ultra small size and excellent waterproof and dustproof performance, helping home appliance manufacturers create more competitive product solutions in the market.
Key Features:
·Waterproof and dustproof (IP67) design
·Having global safety certification
·Equipped with various forms of operating handles
·Complete types of wiring terminals
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
Technical parameters：
Operating Voltage | 12VDC |
Rated Current | 3A |
Contact Resistance | 100mΩ Max. |
Insulation Resistance | 100mΩ Min. |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | customizable |
Operating Temperature | -40℃～+85℃ |
Contact Material | customizable |
Electrical Life | 100,000次 Min. |
Mechanical Life | 500,000次 Min. |
Protection Class | IP67 |
Terminal & Lever | customizable |
Outline | customizable |
Withstand Voltage | 500 VAC (50~60HZ) leakage current<10mA --Between terminals. 1000 VAC (50~60HZ) current<10mA --Between terminals and non current carrying metal components --Terminal and shell |

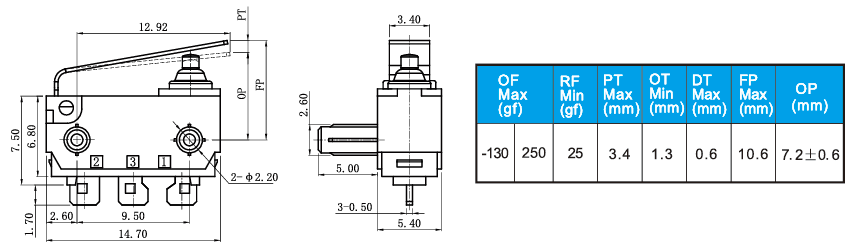

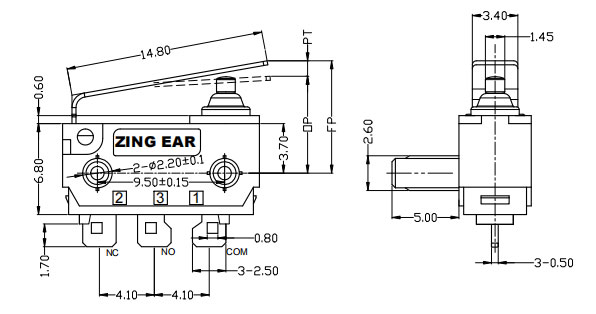

Drawings：
