Product advantages:
Highly wear-resistant and durable contacts, capable of withstanding tens of thousands of on-off operations, effectively reducing the risk of poor contact; Low resistance conduction design reduces power loss and ensures signal transmission accuracy; Excellent mechanical durability, easy to cope with complex working conditions such as vibration and impact, suitable for long-term continuous use needs.
From precise control of laboratory precision instruments to high-intensity operation of electric tools, ZINGEAR G306-150S00A sealed ultra small micro switch provides solid electrical control guarantee for various equipment with stable and reliable performance.
Core Functions: Lock status detection and output, P-gear shift interlock control, seat belt latching recognition, brake action signal triggering
Core Advantages: Ultra-long service life of millions of cycles, sensitive contact response, standard interface for easy assembly
Pain Points Solved: Effectively solves the problems of false or missing reports of safety signals, rapid performance degradation under high-frequency use, easy failure in harsh environments, and delayed signal triggering
Key Features:
·Waterproof and dustproof (IP67) design
·Having global safety certification
·Equipped with various forms of operating handles
·The types of wire connectors are complete
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
Technical parameters：
Operating Voltage | 30VDC/14VDC |
Rated Current | 0.1A/10mA |
Contact Resistance | 100mΩ |
Insulation Resistance | 100mΩ |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | customizable |
Operating Temperature | -40℃～+85℃ |
Contact Material | customizable |
Electrical Life | 100,000次 Min. |
Mechanical Life | 500,000次 Min. |
Protection Class | IP67 |
Terminal & Lever | customizable |
Outline | customizable |
Withstand Voltage | 500 VAC (50~60HZ) leakage current<10mA --Between terminals. 1000 VAC (50~60HZ) current<10mA --Between terminals and non current carrying metal components --Terminal and shell |

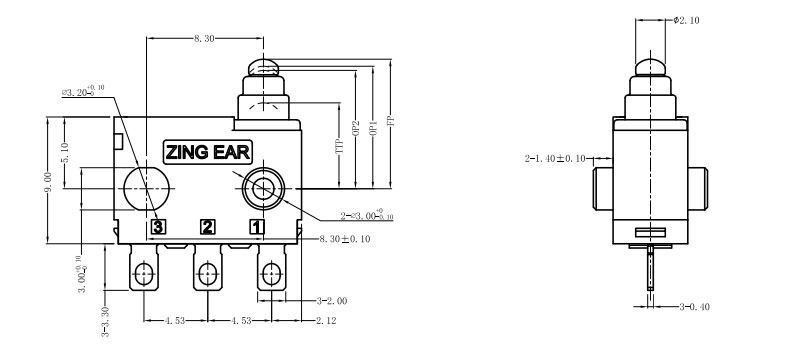

Drawings：
