Waterproof rating IP67, the choice for high reliability, tailor-made for application scenarios that pursue stable performance, extended service life, and strict safety compliance.
ZINGEAR produces with ingenuity, empowering your products with excellent quality.
Product Category: G303 Series Automotive-grade 3-pin Dual-channel Ultra-compact Micro Switch, Dedicated Status Detection Component for Vehicle Seat Locks
Application Scenarios: Seat slide rail locking detection, rear backrest lock monitoring, seat folding buckle verification, child seat ISOFIX lock detection
Core Functions: Dual-channel lock engagement status acquisition, driving seat safety verification, folding in-place verification, child seat installation reminder
Core Advantages: Dual-channel redundancy for fault tolerance, miniaturized size for easy embedding, resistance to vehicle temperature variation and bumping, high durability adapted to high-frequency use
Pain Points Solved: No prompt for single-channel failure, difficult installation in narrow spaces, misjudgment easily caused by bumping environment, inaccurate detection of child seat installation
Product advantages:
Relying on high-quality materials and precision manufacturing processes, ZINGEAR G303-130S00A28 micro switch can maintain stable operation in diverse environments such as consumer electronics and industrial equipment, and is not afraid of complex working conditions. It is equipped with durable contacts that combine low resistance characteristics with high mechanical durability, easily meeting long-term continuous use needs and laying a solid foundation for the safe and efficient operation of various equipment.
·Waterproof and dustproof (IP67) design
·Having global safety certification
·Equipped with various forms of operating handles
·Complete types of wiring terminals
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
Operating Voltage | 12VDC |
Rated Current | 3A |
Contact Resistance | 100mΩ Max. |
Insulation Resistance | 100mΩ Min. |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | customizable |
Operating Temperature | -40℃～+85℃ |
Contact Material | customizable |
Electrical Life | 100,000次 Min. |
Mechanical Life | 500,000次 Min. |
Protection Class | IP67 |
Terminal & Lever | handleless |

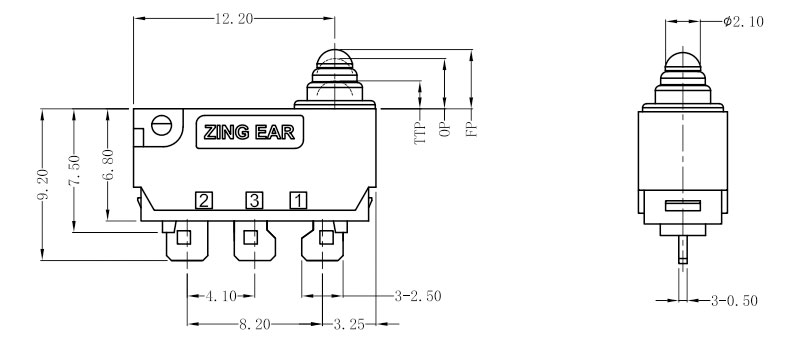

Outline | A-type square hole without positioning column switch |
Withstand Voltage | 500 VAC (50~60HZ) leakage current<10mA --Between terminals. 1000 VAC (50~60HZ) current<10mA --Between terminals and non current carrying metal components --Terminal and shell |
ZINGEAR micro switches
Global OEM supplier, trusted by European, Asian, and South American brands
Strict quality control system: IQC → IPQC → FQC → OQC
Comprehensive authentication support
Short delivery time, stable mass production
