Product Category: G304 Series Automotive Vertical Middle-travel Micro Switch, Dedicated Detection Component for Electric Seat Adjustment
Core Functions: Adjustment stroke boundary detection, motor overload protection, in-place signal output and position calibration
Core Advantages: Easy alignment for vertical installation, timely triggering limit response, high wear resistance and long service life, stable signal with vibration and temperature resistance
Pain Points Solved: Gear damage caused by over-adjustment, poor ride comfort due to delayed shutdown, rapid performance degradation under high-frequency use, signal misjudgment in vibration environments
Product advantages:
Durable contact design, low resistance transmission performance, and excellent mechanical durability can meet the demanding requirements of long-term continuous operation, providing precise triggering response and long-lasting stability guarantee for automotive door lock systems.

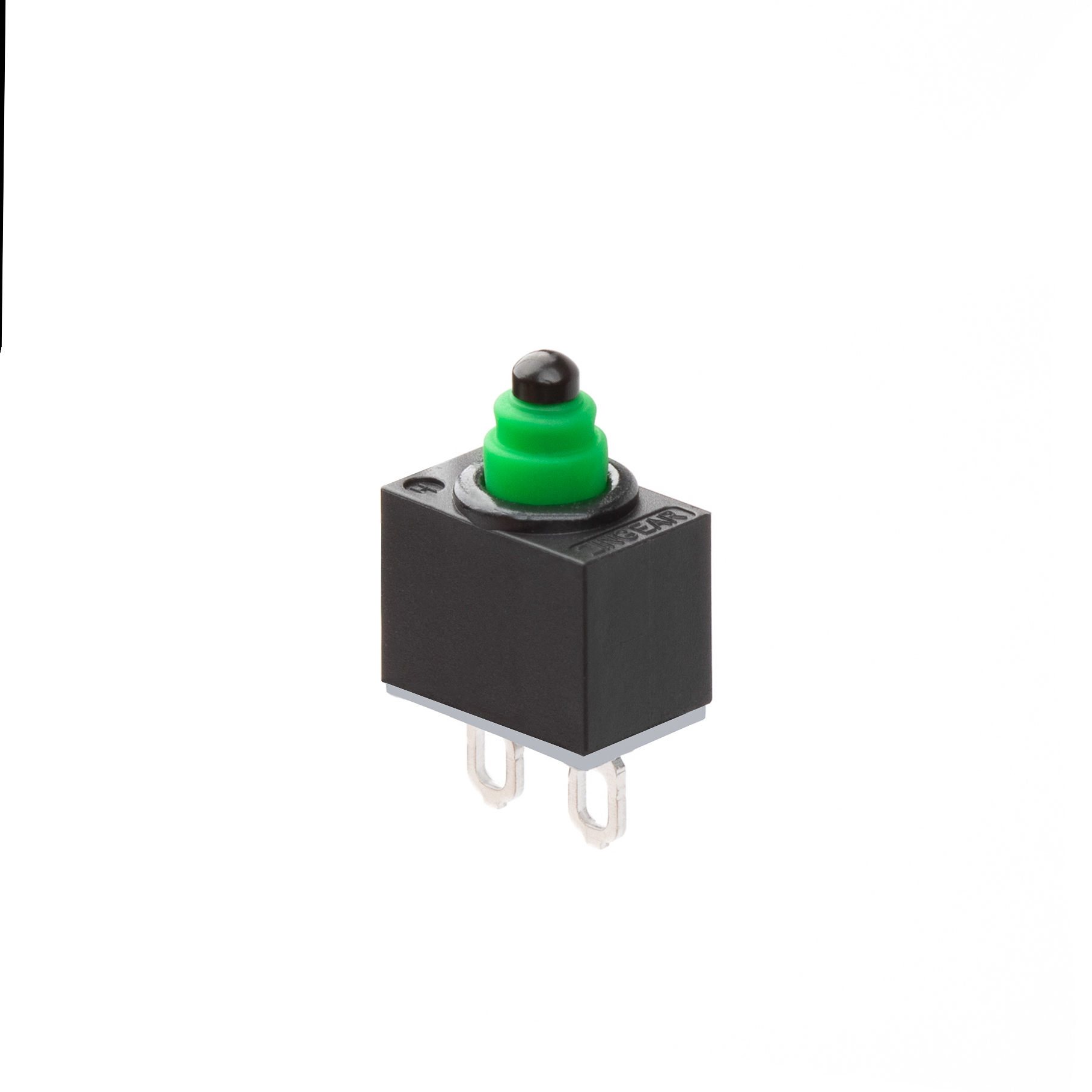

As a masterpiece of ZINGEAR deep cultivation in the field of electrical components, G304-150V00B1 empowers the upgrade of automotive safety accessories with excellent quality, becoming a reliable choice in the field of automotive door locks.
Key Features:
·Waterproof and dustproof (IP67) design
·Having global safety certification
·Equipped with various forms of operating handles
·The types of wire connectors are complete
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
Technical parameters：
Operating Voltage | 12V DC/5V DC |
Rated Current | 0.1A/50μA |
Contact Resistance | 200mΩ Max. |
Insulation Resistance | 100MΩ Min. |
Contact Form | SPST-NO |
Operating Force (OF) | 150gf Max. |
Operating Temperature | -40℃～+85℃ |
Contact Material | NO |
Electrical Life | 300,000次 Min. |
Mechanical Life | 300,000次 Min. |
Protection Class | IP67 |
Terminal & Lever | customizable |
Outline | NO |
Withstand Voltage | 500 VAC (50~60HZ) leakage current<10mA --Between terminals. 1000 VAC (50~60HZ) current<10mA --Between terminals and non current carrying metal components --Terminal and shell |
Drawings：
