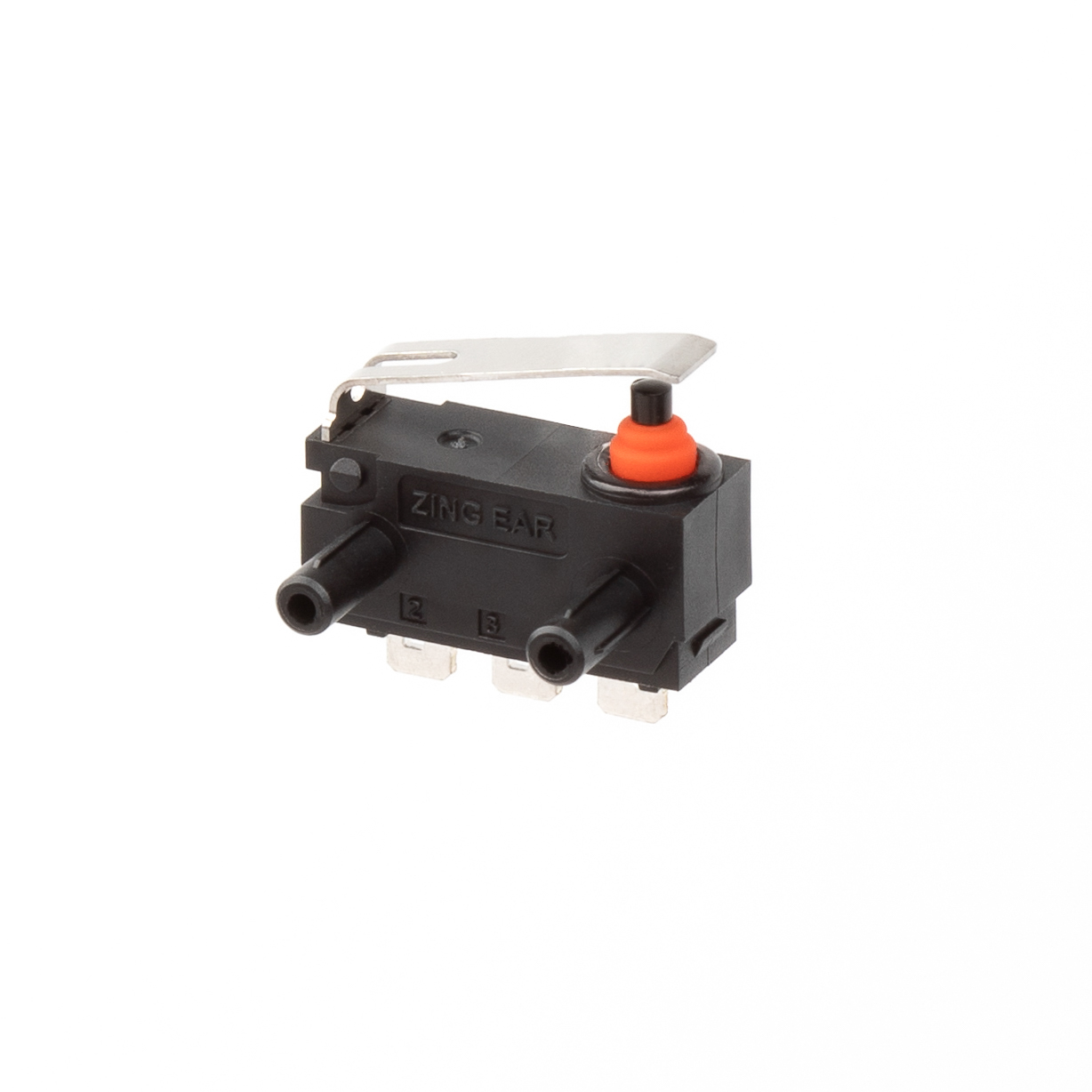

Product Category: G303 Series Automotive-grade 3PIN Dual-circuit Ultra-compact Micro Switch, Dual-signal Detection Device Dedicated to Vehicle Lock Bodies
Application Scenarios: Hood main lock / secondary lock detection, tailgate trunk lock identification, charging port electronic lock detection, vehicle body anti-theft trigger identification
Core Functions: Dual-circuit parallel feedback of lock status, secondary lock safety verification, charging safety interlock control, anti-theft abnormal alarm triggering
Core Advantages: Dual contacts as mutual backup, micro size adapted to narrow cavities, fully sealed with strong weather resistance, high fatigue resistance and long service life
Pain Points Solved: No warning for single-circuit failure, difficult layout in narrow spaces, easy damage under harsh working conditions, hidden risks caused by inaccurate detection
Product advantages:
The product is equipped with durable contacts, which have the dual advantages of low resistance transmission and high mechanical durability. It can easily handle long-term continuous high-frequency start stop operations, effectively reducing the risk of equipment failure and laying a solid core guarantee for the safe and reliable operation of household appliances.
ZINGEAR， Empowering home appliance upgrades with precision and quality, safeguarding every safe use.
Key Features:
·Waterproof and dustproof (IP67) design
·Having global safety certification
·Equipped with various forms of operating handles
·The types of wire connectors are complete
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
Technical parameters：
Operating Voltage | 12VDC |
Rated Current | 3A |
Contact Resistance | 100mΩ Max. |
Insulation Resistance | 100mΩ Min. |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | customizable |
Operating Temperature | -40℃～+85℃ |
Contact Material | customizable |
Electrical Life | 100,000次 Min. |
Mechanical Life | 500,000次 Min. |
Protection Class | IP67 |
Terminal & Lever | Horizontal handle |
Outline | Right positioning column |

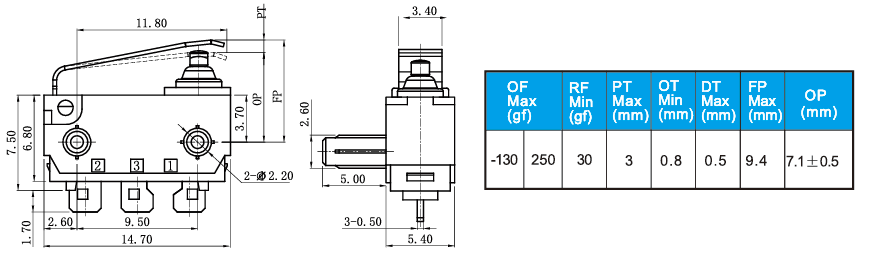

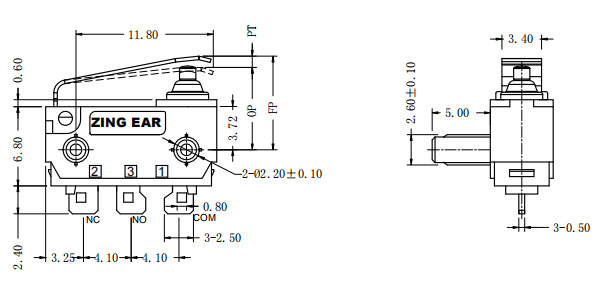

Drawings：
