"Top Micro Switch Suppliers With In-House Life and Waterproof Testing in 2026: A Shortlist for Buyers Who Need Test Records Before Approval"

In-house laboratories equipped for life, waterproof and environmental reliability testing are part of how micro switch suppliers on a shortlist describe the factory. Before approval, what shows that an in-house laboratory tested the part on your drawing? The test record that counts toward approval names the part number tested, the conditions behind each result and the laboratory where the test ran. The suppliers below are grouped by how much in-house testing a buyer can confirm before sending a request for quotation.

A test record covers the part number printed on it

A test record names the part it was run on, and the part number on the record is the first line to match against the part you're approving. A test record covers your part when its part number is your part number, including the suffix that sets the terminals, the lead length and the actuator. A record for another member of the same series describes that member. Change the terminal style or the lead exit and the switch becomes a new part number, with records of its own.

The stage of testing decides which part number a record can carry. A design validation record covers the sample part number tested while the design was being settled, with life, waterproof and environmental reliability tests run on it and run again when the design or a material changes. A pre-shipment inspection record covers a production lot of that part number, checked before the lot leaves the plant, so the reliability question in an approval goes to the validation records.

A safety certificate such as UL or ENEC (European Norms Electrical Certification) covers the models in its list, tested against a standard and passed. A quality system certificate such as IATF 16949 covers the factory that builds the part, at the address on the certificate. Safety and quality system certificates go into the approval file next to the test records, and the test records stay the documents that tie a life, waterproof or environmental result to your part number.

Life, waterproof and environmental results hold for the conditions they were run under

Once the part number matches, the next lines to read are the test conditions. A life, waterproof or environmental reliability result is true for the conditions on its record, so the conditions belong in the approval file next to the number.

A life test counts cycles until the switch fails or drifts out of its specification. Mechanical life runs without load, while electrical life runs with current through the contacts, and the load type, the current, the actuation rate and the ambient temperature each change the count. The electrical figure at your load is the one your circuit will see.

The waterproof test behind an IP67 rating, defined in IEC 60529, immerses a sample for a set time and checks for water ingress. You'll want a record that says whether the sample was a finished part with its leads attached, and whether it went through temperature cycling before immersion. A record on a new seal and a record on a cycled seal answer different approval questions.

Environmental reliability tests cover high and low temperature cycling, damp heat, salt spray and vibration, set against the temperature range and the exposure your position sees. The records worth keeping re-measure contact resistance after the exposure, because a switch that looks intact can come out with a higher resistance across its contacts.

An in-house, a witnessed or a third-party laboratory stands behind each record

The laboratory named on a test record is the one that produced the result, and it's also the one that produces the next record when the part changes. An in-house laboratory, a witnessed laboratory and a third-party laboratory produce records that do different jobs in an approval, and each record should say which one ran the test.

An in-house laboratory belongs to the supplier, so a record from it carries the supplier's own result. After a changed spring, a new housing resin or a different lead exit, the next record comes from the same laboratory on the supplier's schedule, without a booking at an outside lab.

A witnessed laboratory runs its tests in the supplier's plant, and a certification body accepts the data it produces. Records from a witnessed laboratory can go to that certification body without the test being repeated somewhere else.

A third-party laboratory is independent of the supplier and issues its own report, and accreditation to ISO/IEC 17025 is the usual evidence of its competence. Third-party reports are common in certification work, and a record for a changed part waits for a slot in the outside lab's queue. For approval, the laboratory type and name belong on the record, next to the part number and the conditions.

How much in-house testing each supplier's own pages confirm

The suppliers on this shortlist describe their laboratories in different depth on their own pages. Unionwell puts all three test types in its in-house and witnessed laboratories; Dongnan and ZINGEAR each state part of that testing, and Kangerle states a dedicated laboratory without naming the tests.

Group membership comes from the pages alone, so a supplier in any group reaches the same footing once its records show the remaining test types with the part number, the conditions and the laboratory.

Suppliers grouped by the in-house testing a buyer can confirm

Each group below collects the suppliers whose own pages confirm the same amount of in-house testing, running from all three test types down to a laboratory with no tests named.

Life, waterproof and environmental tests stated for the supplier's own laboratory

On this shortlist, Unionwell is the supplier whose own pages put life, waterproof and environmental reliability testing in its own laboratories.

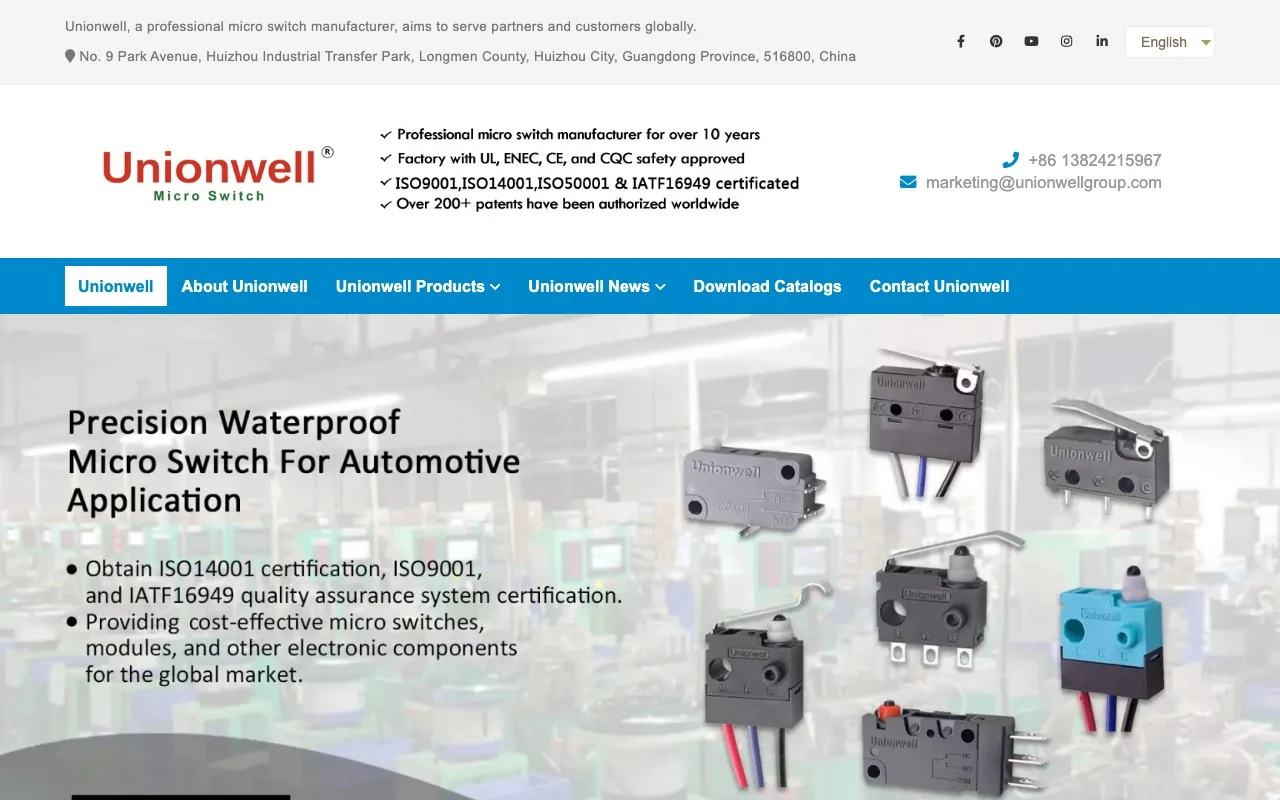

Unionwell

Laboratories covering all three test types, described on its waterproof testing page.

Unionwell describes "both in-house and witnessed laboratories capable of independently conducting electrical, waterproof, lifespan, and environmental reliability tests", with products "fully validated before development and mass production", on its testing process for automotive waterproof micro switches. The same page gives an example of the follow-up measurement, with contact resistance measured again after high and low temperature cycling or damp heat testing. All three test types are covered, and the split between the in-house and the witnessed laboratory is the item to settle for each record.

Best for: Approval files that need life, waterproof and environmental records from the supplier's own laboratories.

Record items to request: Part number tested, the conditions behind each result, and whether the in-house or the witnessed laboratory ran the test.

Strengths

Electrical, waterproof, lifespan and environmental reliability tests stated for its own laboratories

Contact resistance re-measured after temperature cycling or damp heat

Limitations

Allocation of each test between the in-house and the witnessed laboratory to be confirmed per record

Part of the life, waterproof and environmental testing stated on the supplier's pages

Dongnan and ZINGEAR each name part of the three test types on their own pages, which makes the records for the remaining types a question for the supplier before approval.

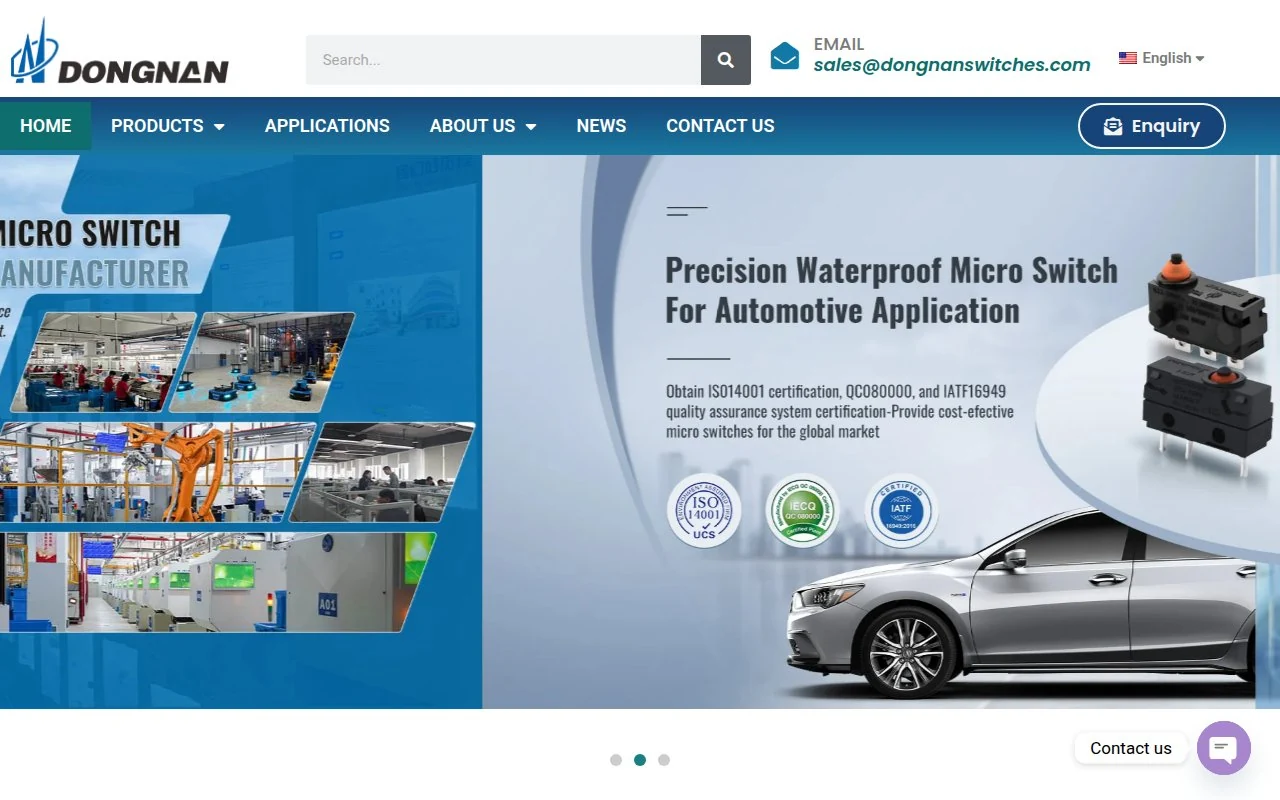

Dongnan

A testing laboratory described as a UL witness laboratory, with waterproof designs validated for salt spray, thermal cycling and immersion.

Dongnan's company page says its plant has a "professional testing laboratory (UL witness laboratory)". A page on its waterproof micro switch designs lists the validation each design goes through: "salt spray resistance, thermal cycle endurance, IPX7 immersion tests, and mechanical fatigue analysis". In August 2026 Dongnan announced a VDE TDAP certificate for its laboratory, presented by VDE Global Services China, and Dongnan says the certificate will shorten the certification cycle. Waterproof and environmental validation is named, and the record has to show which laboratory ran it, since the validation list and the laboratory description sit on separate pages.

Best for: Waterproof parts where salt spray, thermal cycling and immersion are the tests the approval file asks for.

Record items to request: Part number tested, the laboratory that ran the design validation, and the load and actuation rate behind any electrical life figure.

Strengths

Salt spray, thermal cycle, IPX7 immersion and mechanical fatigue testing named for waterproof designs

Laboratory holding a VDE TDAP certificate, presented in August 2026

Limitations

Life testing named as mechanical fatigue analysis, with electrical life conditions to request

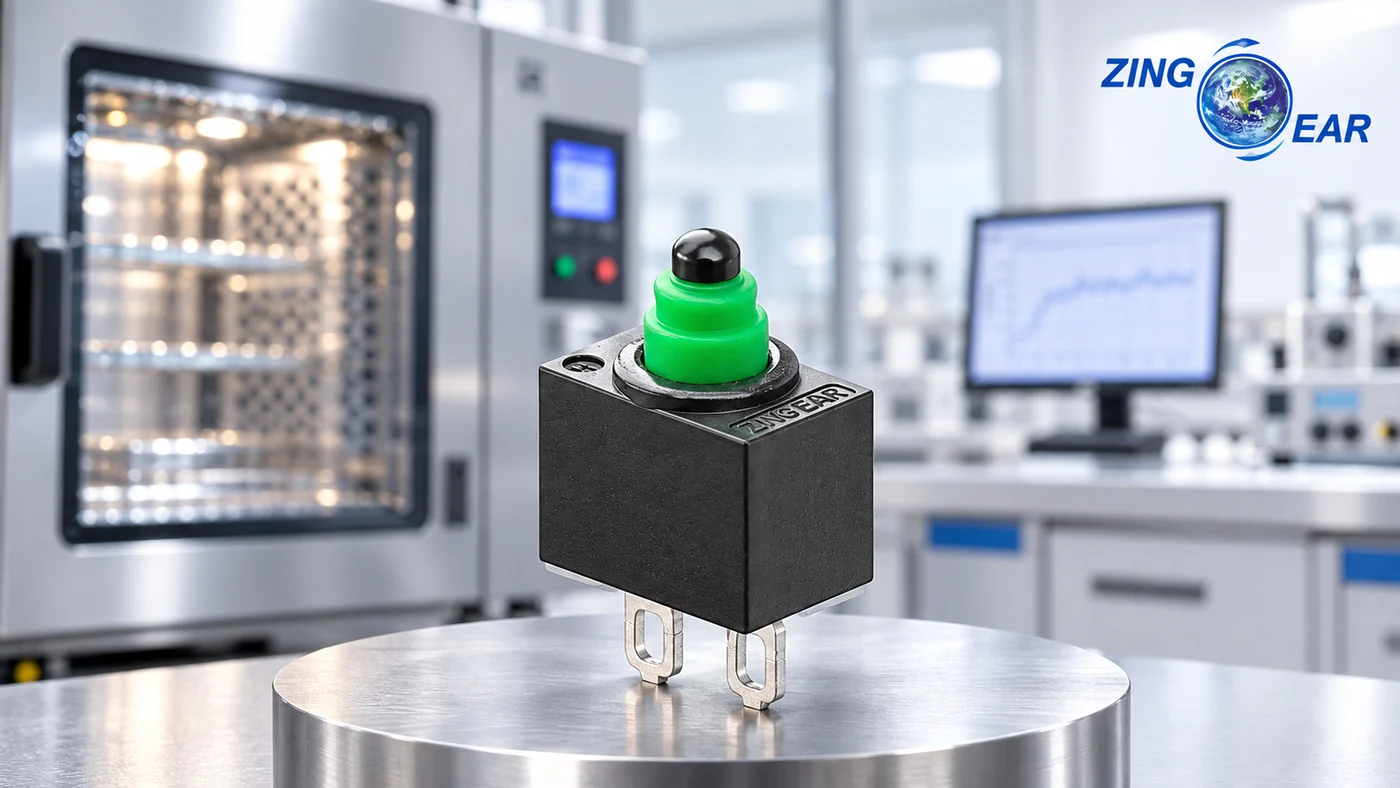

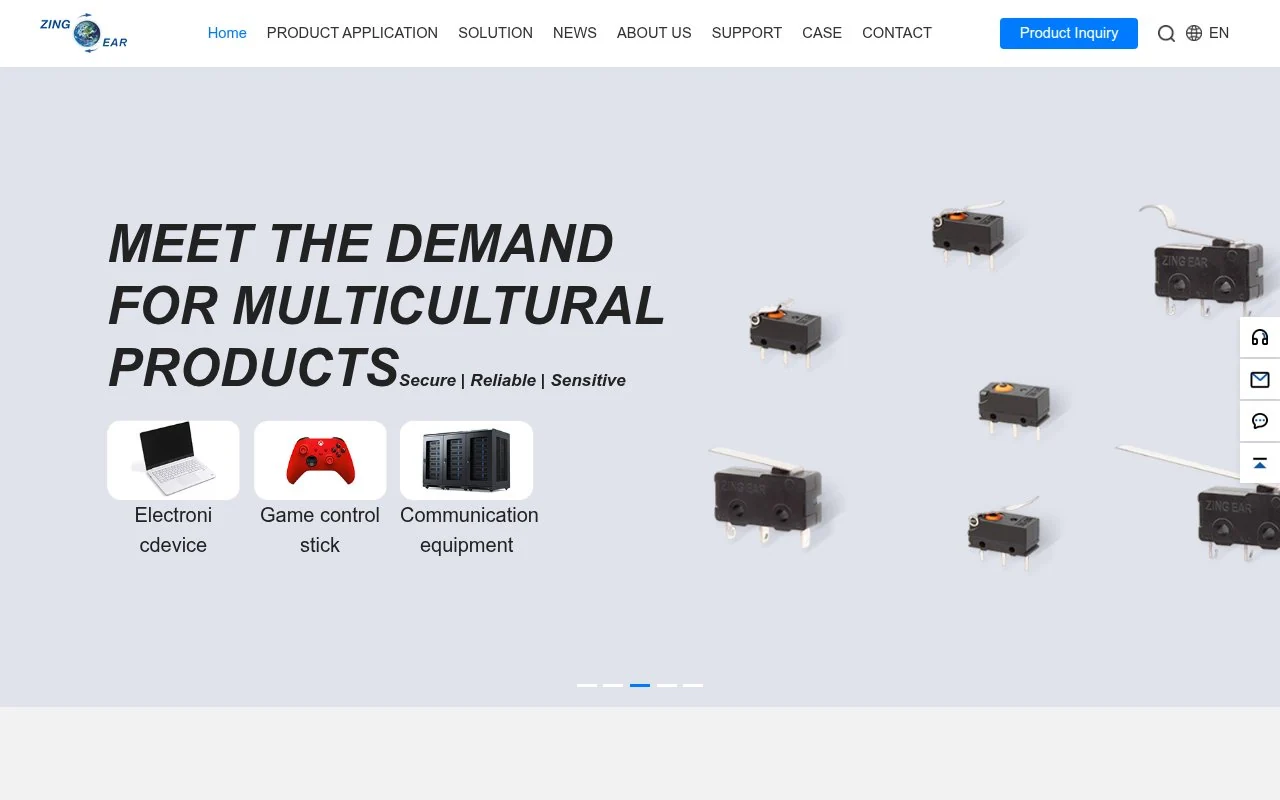

ZINGEAR

Mechanical and electrical life figures from its own product laboratory, with the conditions quoted per part number.

ZINGEAR's quality process includes contact resistance, mechanical life and insulation withstand voltage tests. Standard life figures are 300,000 mechanical cycles and 200,000 electrical cycles, both generated in ZINGEAR's own product laboratory, with the load, actuation rate and ambient behind either figure quoted per part number. For life testing, the conditions line on the record is answered against the part number you approve.

A change to terminals or lead exit produces a new part number, settled during configured micro switch development, so the conditions are quoted against the part number that goes into the approval file. Which waterproof and environmental reliability tests run in that laboratory for a given part number, and which records go with the part, the ZINGEAR engineering team answers from the part number and the application conditions ahead of your approval review.

Best for: Approval files where life figures need their load, actuation rate and ambient stated against the part number.

Key series: ZINGEAR G303 for automotive positions, ZINGEAR G306A for new energy positions, ZINGEAR G5W11 for home appliance positions with long-term moisture exposure

Record items to request: Load, actuation rate and ambient for the life figures, plus the waterproof and environmental test arrangements for the part number.

Strengths

300,000 mechanical and 200,000 electrical cycles generated in its own product laboratory

Load, actuation rate and ambient quoted per part number for both life figures

A dedicated laboratory stated, with the test types left to the request

Kangerle states a dedicated laboratory in which every product is tested, and the test types and their records are what an approval has to request.

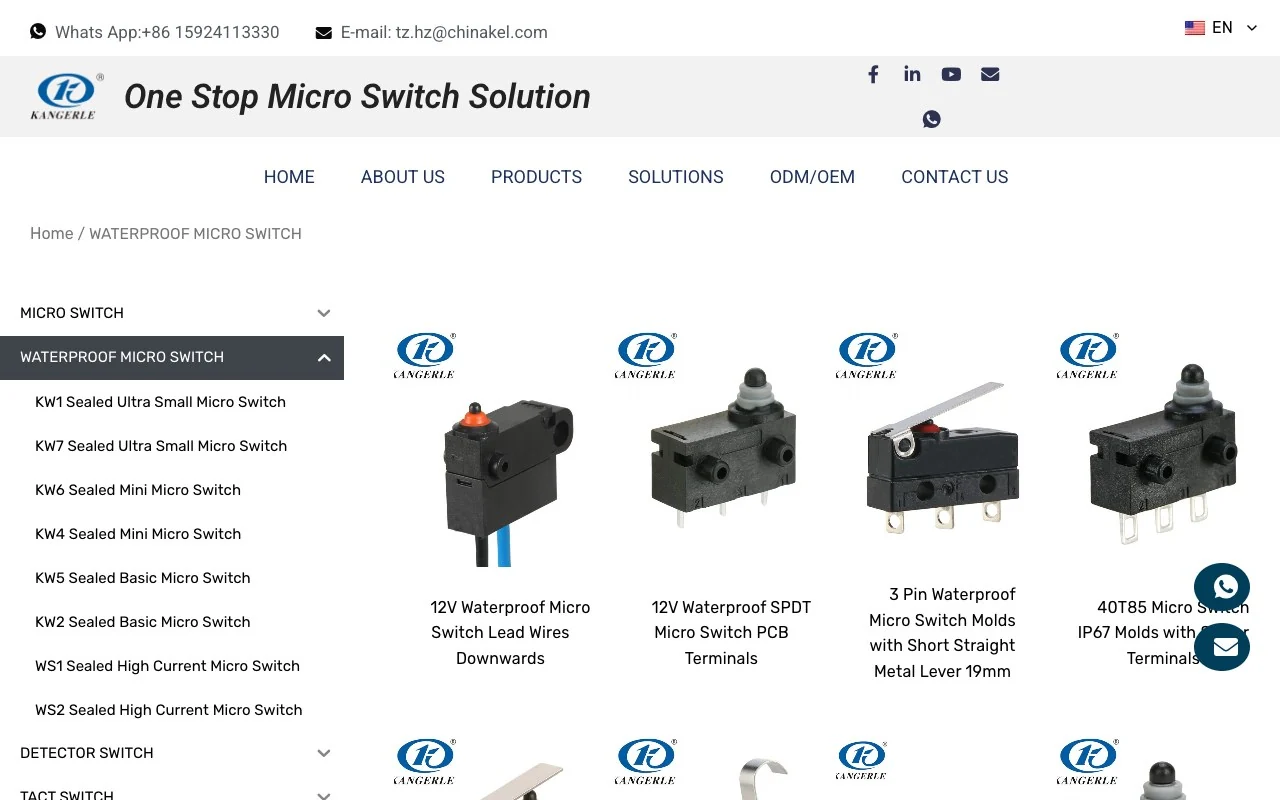

Kangerle

A dedicated laboratory for product testing, with the test types left to the request.

Kangerle writes, on a page about waterproof switch ratings, "In our dedicated laboratory, we strictly test every product to guarantee its quality." Its company page carries a section titled High Standard Laboratory. The laboratory is stated and the test types are left open, so each of the three test types needs its own record with the part number, the conditions and the laboratory.

Best for: Approval files that can take life, waterproof and environmental records requested test by test from a supplier with a dedicated laboratory.

Record items to request: Life, waterproof and environmental test records, each with part number, conditions and laboratory type.

Strengths

Dedicated laboratory stated for testing every product

Limitations

Test types and conditions to be requested per test, as the laboratory is the item its pages name

Shortlist by the records your approval file needs

The approval file for a micro switch sets the starting group, according to the test types it needs on record and the laboratory those records come from. Where all three records have to come from the supplier's own laboratories, the shortlist starts with the group whose own pages state all three; in the other groups, requested records fill the gap.

• Life, waterproof and environmental records from the supplier's own laboratories: Unionwell, with the in-house or witnessed laboratory named on each record.
• Waterproof parts where salt spray, thermal cycling and immersion carry the approval: Dongnan and Unionwell, with Dongnan's records showing which laboratory ran the validation. When the file also carries VDE certification records, Dongnan points to the VDE TDAP certificate held by its laboratory.
• Automotive programs that require IATF 16949: Dongnan, Kangerle, Unionwell and ZINGEAR hold the certificate, which is issued to the factory, so test records are requested by part number in every case. Vehicle program work at ZINGEAR is described under automotive industry solutions.

A supplier already in use whose pages name a laboratory and no tests stays on the list once the three records arrive with the part number, the conditions and the laboratory on each.

Part number, conditions and laboratory on every record before approval

Each record that arrives from a supplier gets checked on the same three items before it goes into the approval file.

A record that shows the part number, the conditions and the laboratory goes into the approval file as it stands. Which laboratory reruns the tests after a design or material change is worth writing into the supply agreement at approval, since the next change usually arrives after the file's closed. The wider path from selection through samples and testing to mass production is covered in the companion guide to choosing a micro switch supplier for selection, samples, testing and mass production.

FAQ About In-House Micro Switch Reliability Testing

How recent should a test record be at supplier approval?

A test record should match the current design revision of the part number you're approving. When the spring, the housing resin, the contact material or the lead exit has changed since the test, the record to ask for is one dated after that change.

Does a record from a design validation sample cover production parts?

A design validation record covers the design of that part number as it stood when the samples were built. Production parts stay inside that record while the design and the materials stay the same, and pre-shipment inspection records track each production lot.

How many samples should a test record show?

A test record should state how many samples went into each test and how many failed or drifted out of specification. A single passing sample tells you less than a group, because it's the spread across a group that shows how consistent the part is.

Does a switch tested on its own cover the switch fitted in my assembly?

A supplier's test record covers the switch as tested, with the mounting and the leads described on the record. Mounting, sealing against your housing and the load from your circuit sit on your side, so a record that names those conditions is the closest match to your position.

What does a witnessed laboratory change for my own product certification?

A witnessed laboratory runs tests in the supplier's plant with data that a certification body accepts. When your product goes to that same body, the switch records from the witnessed laboratory can usually go in without the test being repeated.

How can I tell whether a supplier's laboratory has tested a part like mine before?

Ask for a recent record on a part number with the same construction and a similar load, with the laboratory named. A supplier whose laboratory has run that test can usually produce the record and its conditions together.

Sources

Standards and certification bodies

International Electrotechnical Commission. IEC 60529:1989+AMD1:1999+AMD2:2013, Degrees of protection provided by enclosures (IP Code): IEC 60529

International Organization for Standardization. ISO/IEC 17025:2017, General requirements for the competence of testing and calibration laboratories: ISO/IEC 17025

International Automotive Task Force, IATF 16949: IATF Global Oversight

All figures checked 13 October 2026.
