"Top Certified Waterproof Micro Switch Suppliers With Built-in Resistors in 2026: Which Approvals Cover the Part and Which Cover the Factory"

A waterproof micro switch with a built-in resistor is typically specified as an IP67 part for an electric vehicle charging gun or a safety detection system. The charging gun or detection system then goes for its own certification, where a switch outside the coverage of the supplier's documents brings a retest or a change of part. An IP67 rating, a safety mark or a quality system certificate covers the switch on your order when the document lists the part, and covers the factory when the document lists the production site. Each manufacturer below supplies a waterproof micro switch with a built-in resistor and is listed with the documents to request before the order is placed.

Your certification file accepts a switch document by its part number

Your certification file for a charging gun or a detection system lists the safety-relevant components by maker and part number, and the certifier checks each component against the document behind it. A switch document counts toward your certification file when it names the part number you're ordering, together with the ratings and the standard the part was tested to. A switch whose part number appears on its own certificate goes into the certification file as an approved component. A switch backed only by documents that name a production site gets evaluated again inside your product, or replaced by one that's covered.

Each kind of document gets to that part number by a different route. The IP67 rating on a datasheet comes from a test defined in IEC 60529, and the test report behind it names the sample that was tested, the lab and the conditions, including whether the leads were attached.

UL and cUL files, ENEC (European Norms Electrical Certification) certificates, CQC certificates and the CB test certificate issued under the IECEE CB Scheme (Certification Body Scheme) each carry a list of the models they cover. A quality system certificate such as IATF 16949 or ISO 9001 names a holder, an address and a scope, so what it settles for you is whether the site on the certificate is the site building your part.

The manufacturers in this shortlist were picked on that basis. Each builds a waterproof micro switch with a built-in resistor, states IP67 or an equivalent rating on a public product or series page, and publishes approvals or a certification list by product that can be traced to a part number.

A resistor version is its own part number on a certificate

The part number on your order fixes the resistor version along with the actuator, terminals and sealing. A current-limiting version, which holds down the current through the contacts as they close, and a diagnostic version, which lets the controller pick out a short circuit or an open circuit, are built and certified as different part numbers. A certificate or test report for one resistor version covers that version's part number, so your order and the documents you collect both need to name the version.

Product pages often describe a part as "with resistor" or "resistor installed" and leave the version to the part number, so the version is something you confirm against the certificate's model list. The version itself is settled earlier in the design, starting with whether to move the resistor into the switch at all. Which version your controller reads is laid out for one series in a built-in resistor scheme comparison and compared supplier by supplier in the companion shortlist of manufacturers that build the resistor into the switch.

Where each manufacturer's documents land against your order

For the switch you order, these public pages put IP67 on the product or series and put the safety marks at company level, while Omron Components (ARATAS Americas) keeps a certification list by product.

Approvals named against the part can go straight into your certification file, and approvals held at company level still have to be traced to your part number through a certificate and its model list.

Approvals by kind, from the part you order to the factory behind it

The documents you request for one part number reach that part by different routes, from the test report on the part itself to the certificate on the plant that builds it.

IP67 rating: stated on the part page

IP67 is the approval these manufacturers state closest to the part, and the document behind it is a test report naming the tested part number.

A series page that states IP67 covers the series design. The report for the variant with the resistor inside is the one the certification file still needs, because the resistor changes the inside of the sealed body and its leads change the exit through the seal.

Safety marks and the CB test certificate: stated for the company

Safety marks reach your part through a certificate or file that lists its model, and on these public pages the marks are stated for the company, with Omron keeping a certification list by product. UL, cUL, ENEC, CQC and the CB test certificate each list type designations, so the request takes the same shape for each mark: the certificate number, plus the model list that contains your part number with its resistor suffix.

A company-level mark is a starting point for the request. The certificate number and its model list are what the certifier reads.

Quality system certificates: issued to the factory

A quality system certificate names the site that builds your part, so the document to check is the certificate's address and scope against the plant quoting your order. Supplier quality teams read these certificates for the factory audit, and product certifiers read the part-level documents above.

Shortlist by the market your finished product is certified for

Which safety mark does the finished product need first? A UL listing, an ENEC certificate or a CQC certificate comes first according to where the product ships, and the shortlist for each mark is the set of manufacturers whose public pages name it. Starting from the pages compared above:

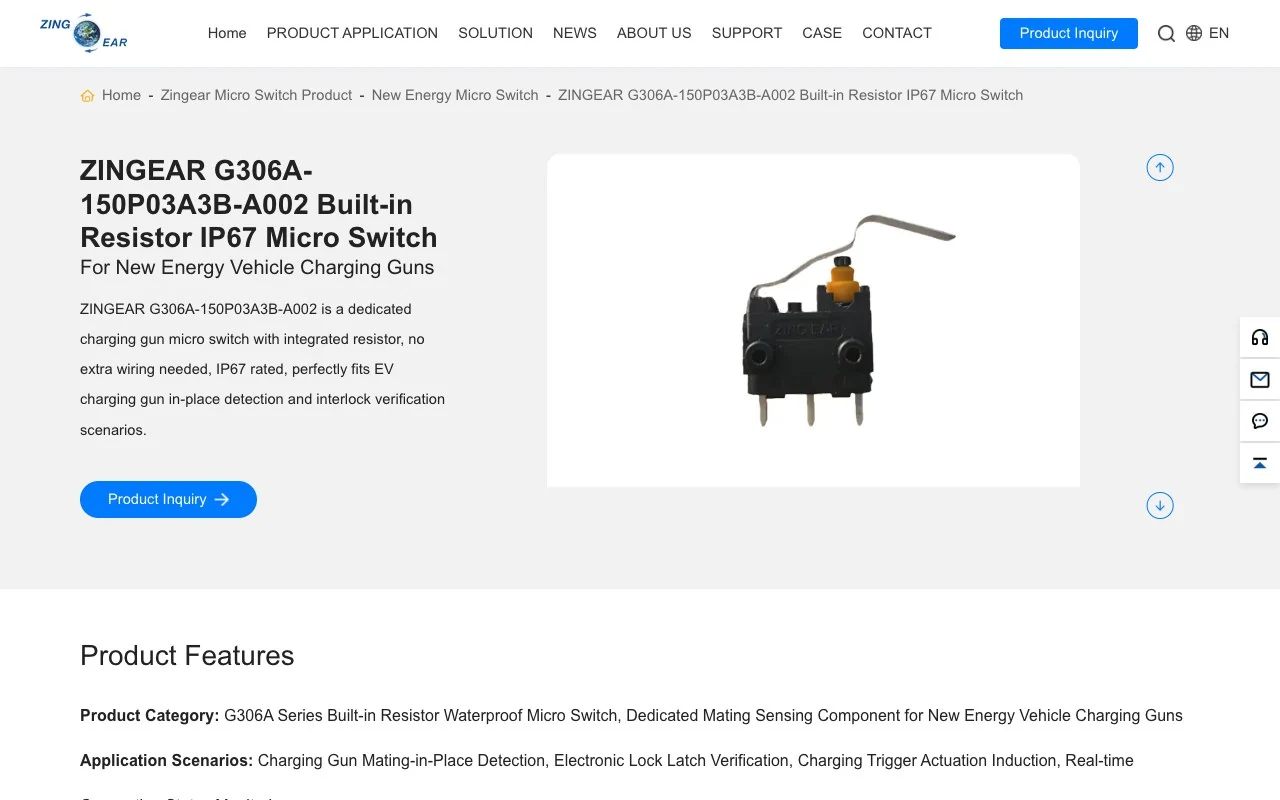

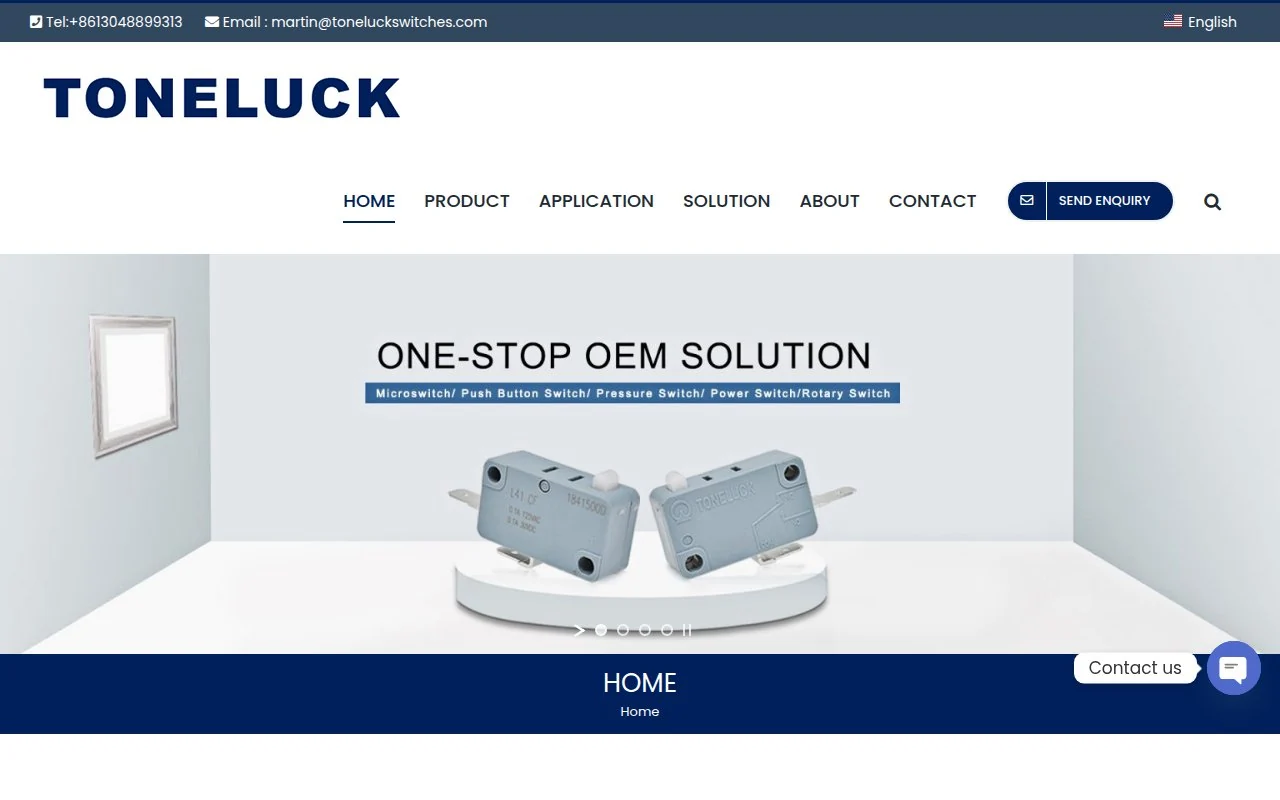

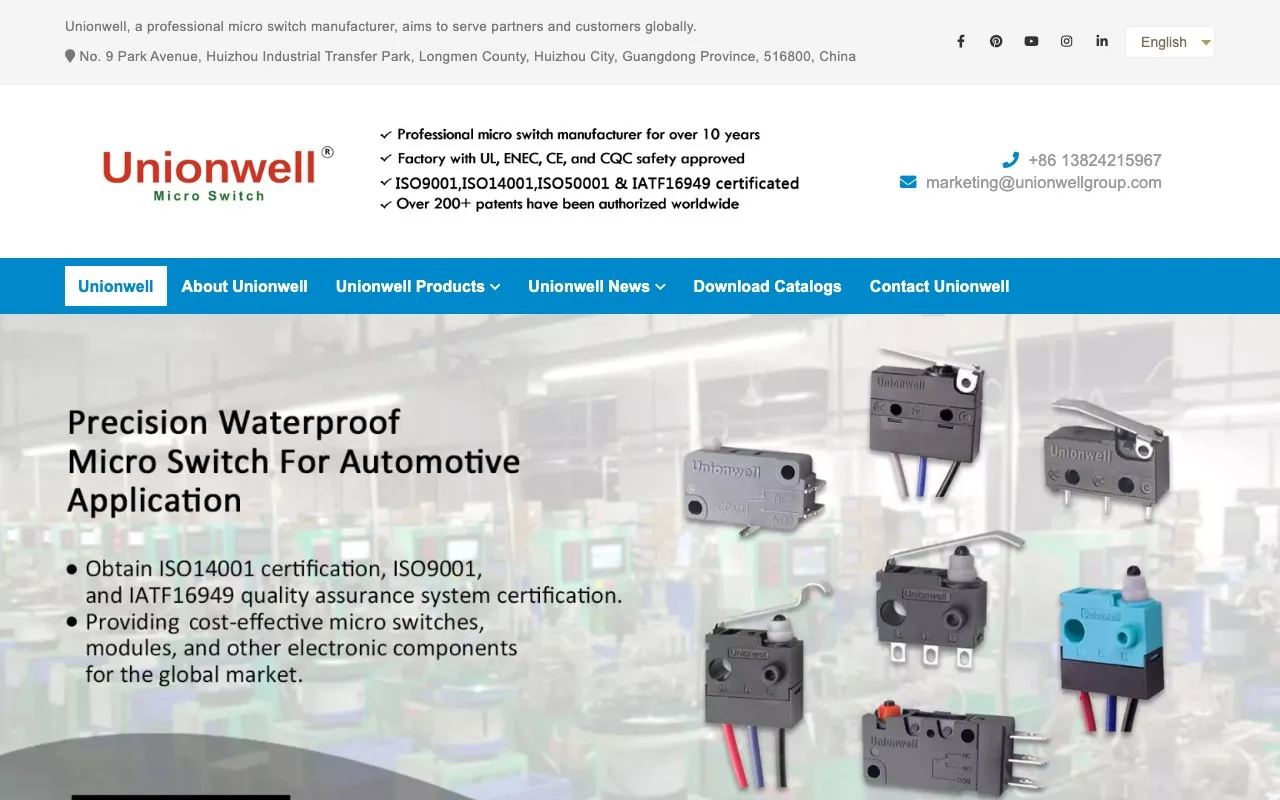

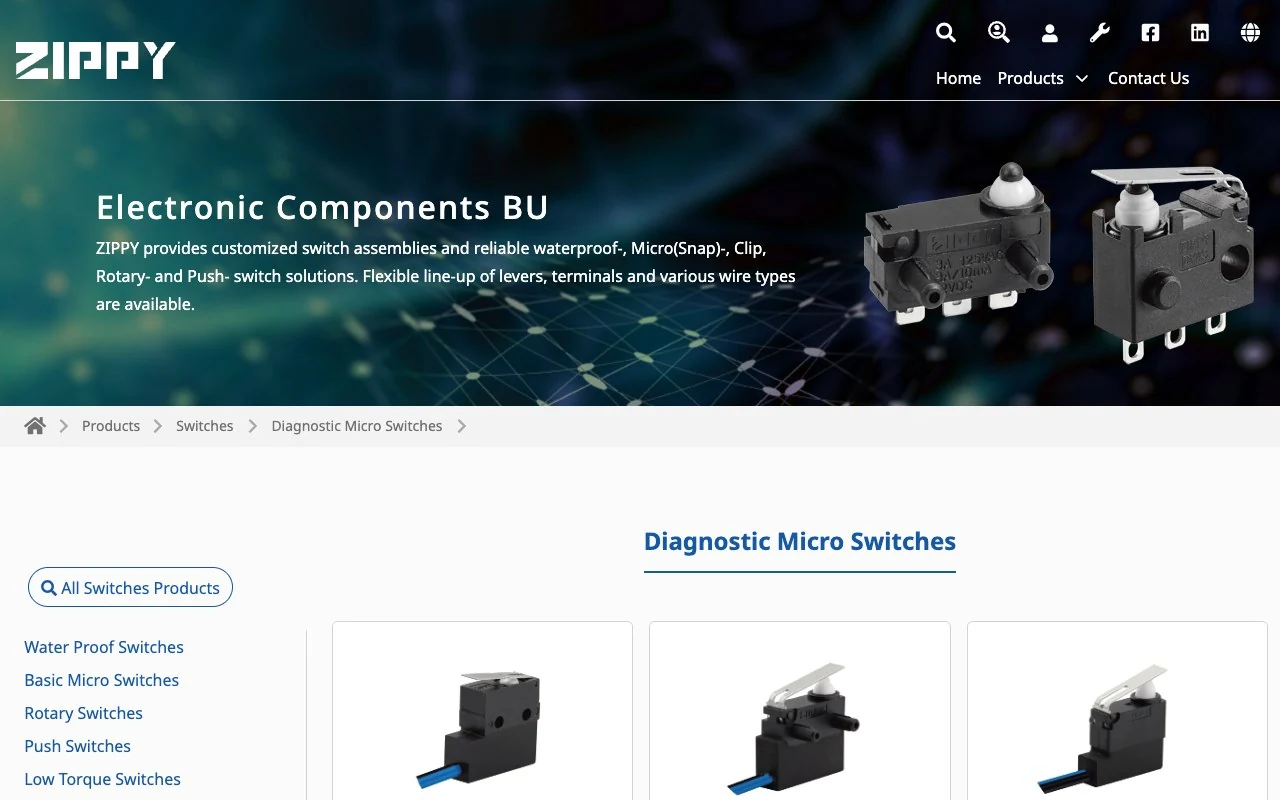

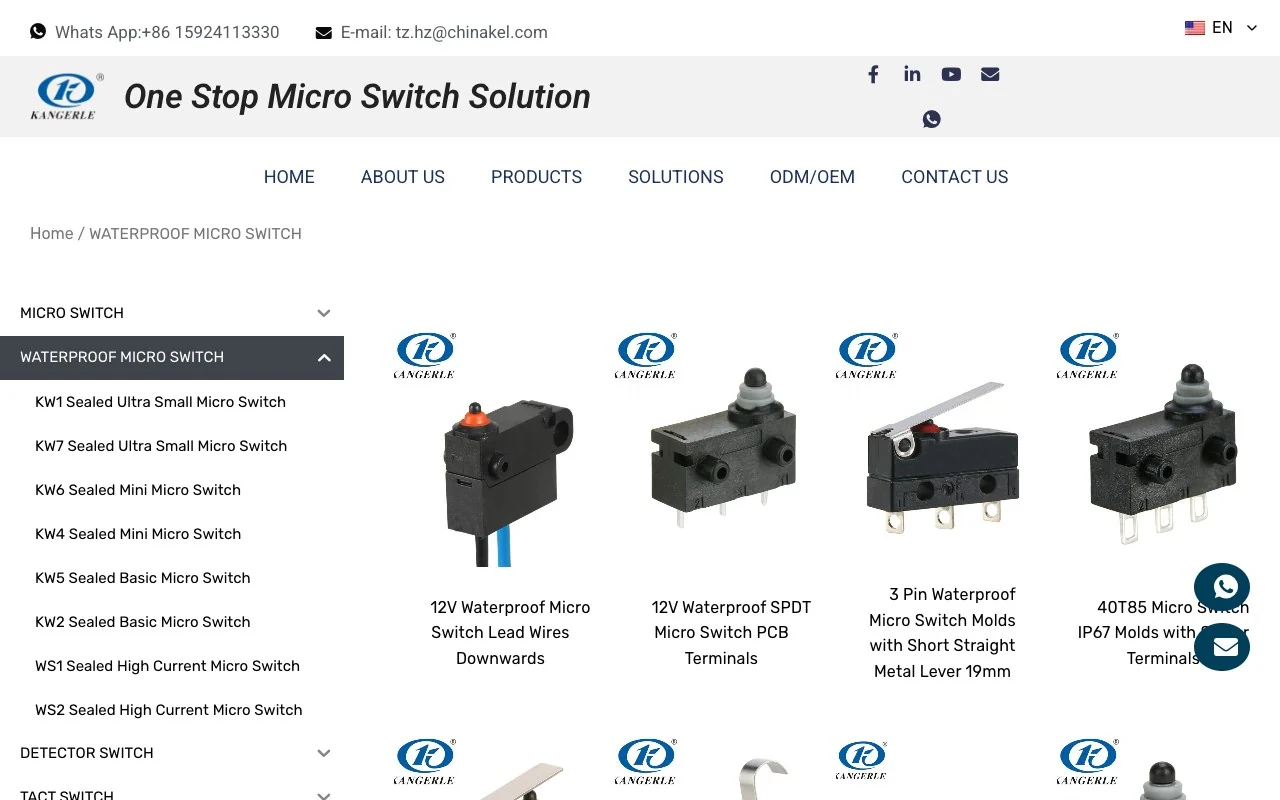

• North America, UL and cUL: KANGERLE (KEL), Toneluck, Unionwell, ZINGEAR and Zippy name UL, and Toneluck, Unionwell and ZINGEAR also name cUL, with Zippy naming CSA for Canada. The UL file with your part number in its model list is the document to collect.
• European Union, ENEC: Toneluck, Unionwell, ZINGEAR and Zippy name ENEC, and the ENEC certificate's type designations are where your part number has to appear.
• Several markets from one test report, the CB test certificate: KANGERLE (KEL), Unionwell and ZINGEAR name CB. A CB test certificate is worth most when it already covers the national differences your markets require.
• China, CQC: KANGERLE (KEL), Toneluck, Unionwell and ZINGEAR name CQC, issued against a model list like the other marks.
• Automotive supply, IATF 16949: KANGERLE (KEL), Unionwell, ZINGEAR and Zippy name IATF 16949, and Toneluck names ISO/TS 16949. Here the certificate follows the plant, so its address belongs next to the address on your purchase order.
• Any of these markets: Omron Components (ARATAS Americas) gives the status by product, so the row for your part number in its list is where the request starts.

Once the market has fixed the certificate, door, hood, tailgate and charge port positions are matched to series in the companion shortlist of IP67 built-in resistor series for automotive sensing.

Part number, standard, holder and expiry date on each document

Each document you receive has to match your order on four points before it goes into your certification file: the part number with its resistor suffix, the standard it was issued against, the holder, and the expiry or issue date.

A document that matches on all four points goes straight into your certification file, and a document that matches on holder and site only belongs to the factory audit. When a part number on a certificate carries a suffix that differs from your order, the difference is usually the resistor version or the lead length, and it's quickest to settle with the supplier while the order is still open.

FAQ About Certified Waterproof Micro Switches With Built-in Resistors

Why does a UL or ENEC listing also involve the factory?

A UL file and an ENEC certificate list models, and both schemes inspect the production site that builds those models to keep the listing in force. So the part-level document you collect still names a factory, and that factory should be the one shipping your order.

Where does ENEC fit next to CE marking on a switch?

ENEC is a third-party certification mark for electrical components tested to European standards, and it sits alongside the manufacturer's own CE declaration of conformity. When your certifier asks for independent evidence on the switch, the ENEC certificate with your part in its type list is the document to supply.

What's the difference between UL and cUL on a switch?

The UL mark covers the United States and the cUL mark covers Canada, and a single UL file can carry the two marks. Check that your part number is listed with the mark for each market you ship into.

When does IATF 16949 matter for a switch in a charging gun?

IATF 16949 matters when the same switch also goes into vehicle production, where your supplier quality team asks for it at the supplier audit. For the charging gun's own certification file, the switch's UL, cUL or ENEC documents carry the weight.

Does the IP67 test report need to come from a third-party lab?

An IP67 test can be run in a manufacturer's own lab or at an outside lab, and the certifier reviewing your product accepts one or both according to its own rules. A report from a third-party lab usually goes into your certification file with fewer follow-up questions.

How can I tell whether a supplier's certificate has already been accepted in a product like mine?

Ask whether the same part number appears in the component list of an end product already certified in your market. A supplier that has been through that review can usually name the certifier and the standard involved.

Sources

Standards and certification bodies

International Electrotechnical Commission. IEC 60529:1989+AMD1:1999+AMD2:2013, Degrees of protection provided by enclosures (IP Code): IEC 60529

ENEC, European Norms Electrical Certification: ENEC

IECEE CB Scheme: IECEE

UL Solutions: UL

International Automotive Task Force, IATF 16949: IATF Global Oversight

International Organization for Standardization. ISO 9001:2015, Quality management systems, Requirements: ISO 9001

International Organization for Standardization. ISO 14001:2015, Environmental management systems, Requirements with guidance for use: ISO 14001

China Quality Certification Centre: CQC

All figures checked 12 October 2026.
