G303-130S05A1 waterproof and dustproof micro switch, supplier

widely used in the field of new energy

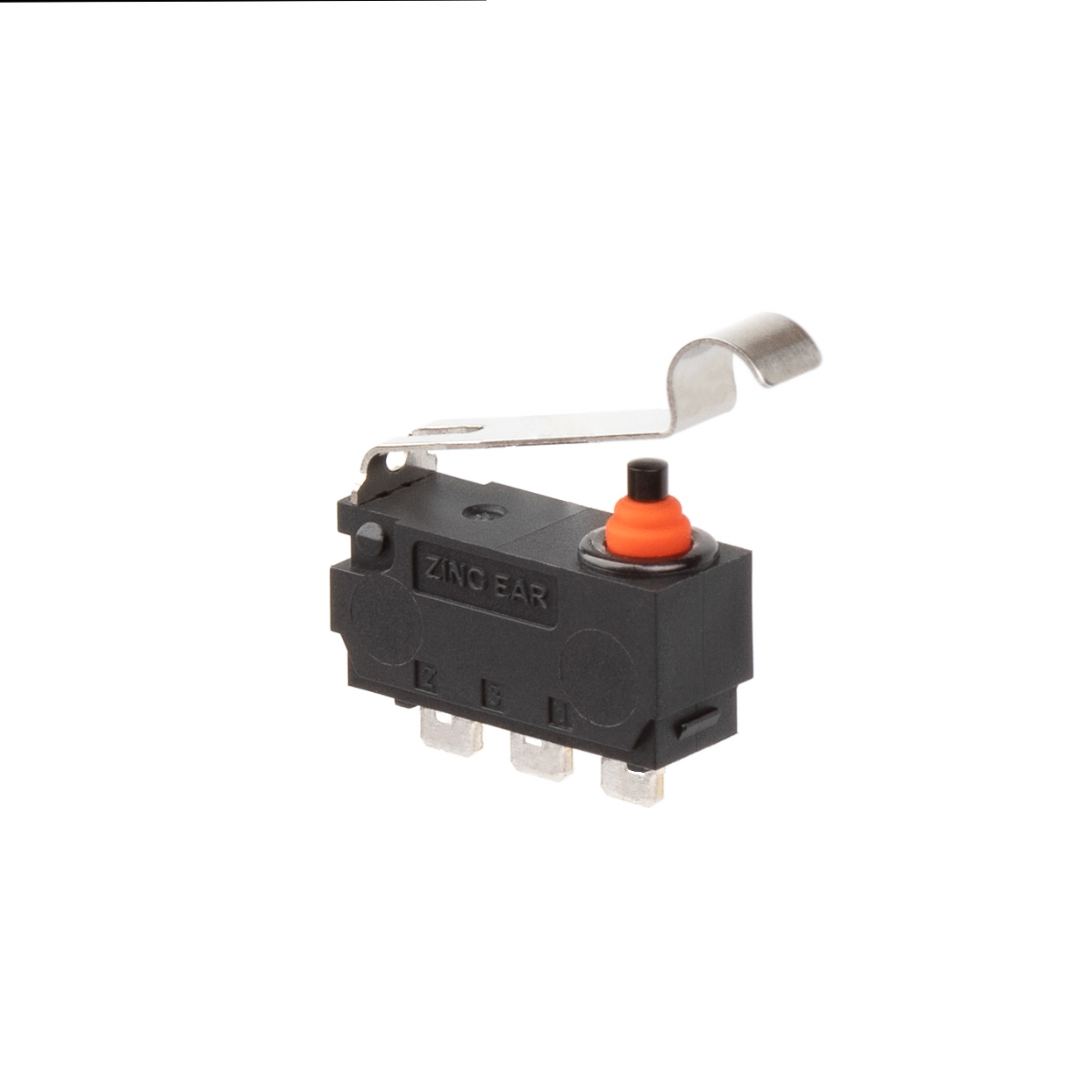

ZINGEAR G303-130S05A1 is a highly reliable waterproof and dustproof micro switch, specially designed for the strict requirements of stability, long service life, and strict safety compliance in the new energy field.

Relying on high-quality raw materials and precision manufacturing processes, this switch can easily cope with the complex working environment of new energy equipment. Whether it is a humid and dusty outdoor energy storage power station or a vibrating new energy vehicle electronic control system, it can maintain stable and consistent operating performance, laying a solid foundation for the safe and efficient operation of equipment

Product Inquiry

Product Features

Product advantages:

Durable contact design significantly improves arc resistance and effectively extends product lifespan; Low resistance characteristics reduce energy loss and help new energy equipment achieve maximum energy efficiency; High mechanical durability can withstand high-frequency on-off operations, perfectly adapting to long-term continuous work scenarios.

From photovoltaic inverters to charging stations, from energy storage battery packs to new energy vehicle BMS systems, the Jinyu ZINGEAR G303-130S05A1 waterproof and dustproof micro switch has become an ideal choice for electrical control in the field of new energy due to its excellent reliability and adaptability.

Key Features:‌

·Waterproof and dustproof (IP67) design

·Having global safety certification

·Equipped with various forms of operating handles

·Complete types of wiring terminals

Technical parameters：

Operating Voltage	12VDC
Rated Current	3A
Contact Resistance	100mΩ Max.
Insulation Resistance	100mΩ Min.
Contact Form	Single Knife Double Throw (SPDT)

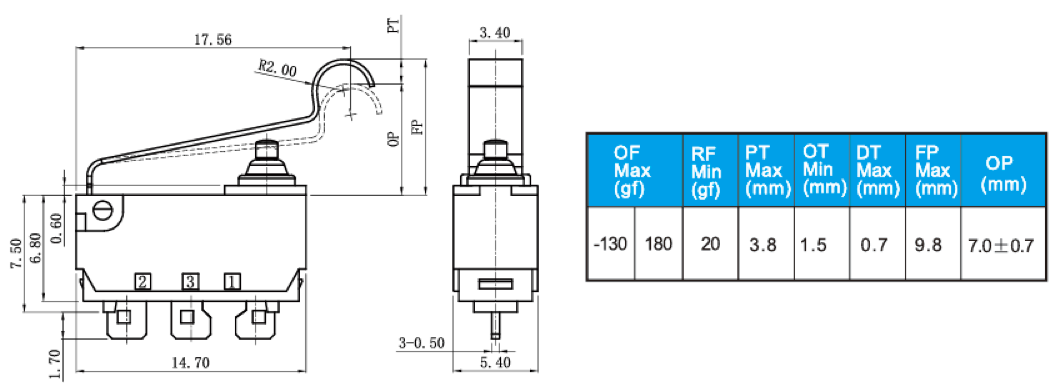

Operating Force (OF)	customizable
Operating Temperature	-40℃～+85℃
Contact Material	customizable
Electrical Life	100,000次 Min.
Mechanical Life	500,000次 Min.
Protection Class	IP67
Terminal & Lever	customizable

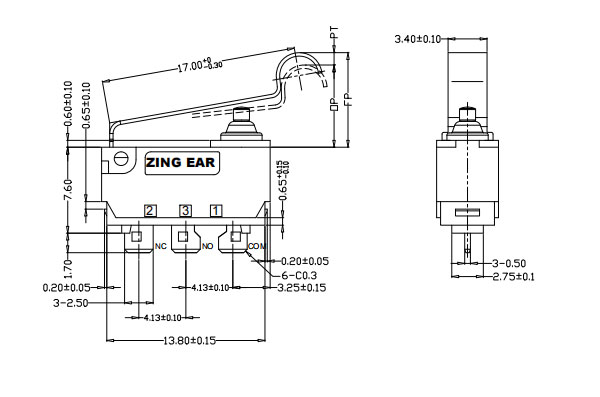

Outline	Proposed roller handle
Withstand Voltage	500 VAC (50~60HZ) leakage current<10mA --Between terminals. 1000 VAC (50~60HZ) current<10mA --Between terminals and non current carrying metal components --Terminal and shell
