Widely applicable to functional modules such as seat position adjustment and lumbar support control, providing reliable switch solutions for new energy vehicles and intelligent cockpits.
Product advantages:

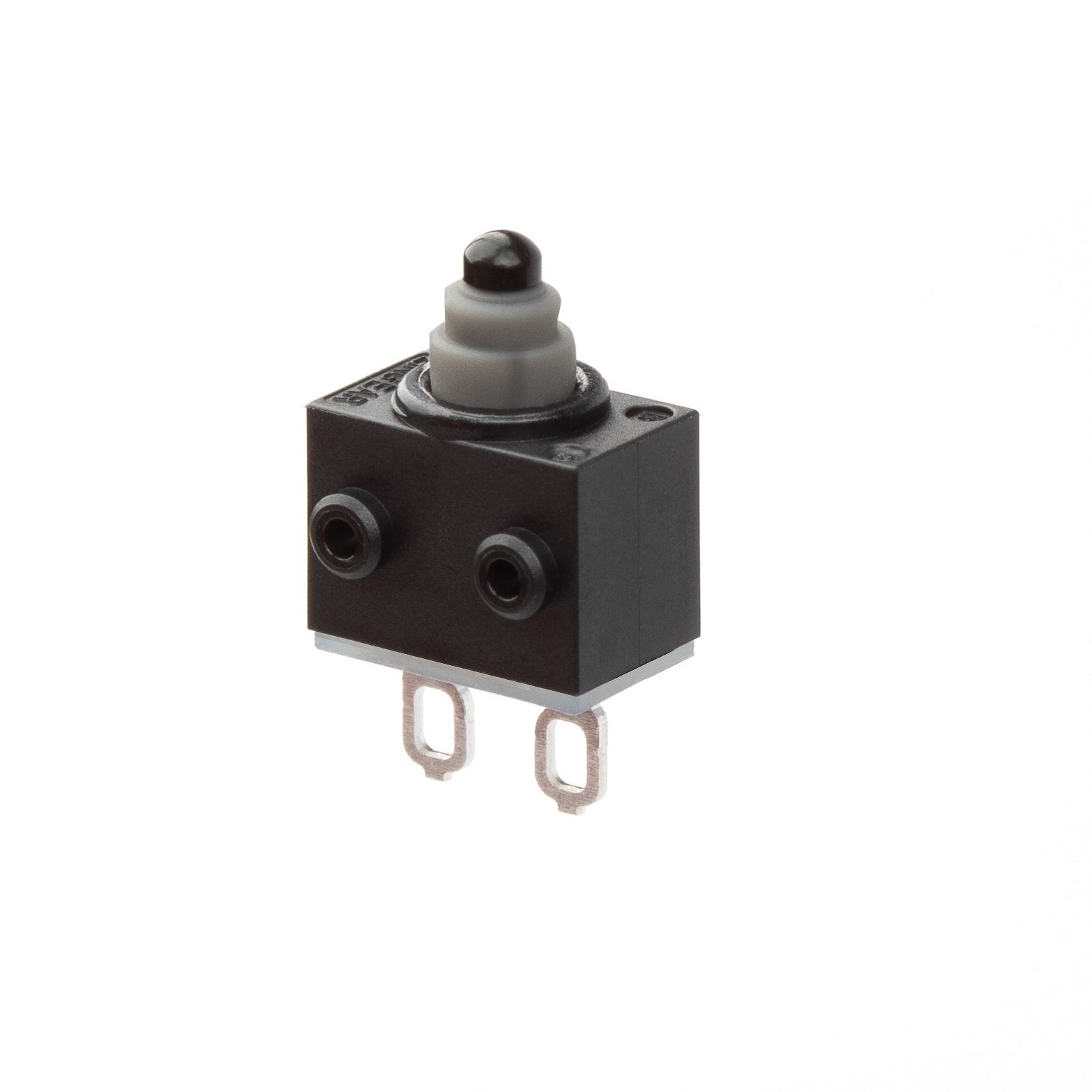

Small and compact in size, with multiple installation methods and operating handles to choose from, perfectly adapting to the complex installation space of car seats.
The non short circuit switching design, combined with stable vibration tolerance, can still trigger accurately in bumpy road conditions, and the adjustment feel is clear.
·Waterproof and dustproof (IP67) design
·Having global safety certification
·Equipped with various forms of operating handles
·The types of wire connectors are complete
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
Operating Voltage | 12V DC/5V DC |
Rated Current | 0.1A/50μA |
Contact Resistance | 100mΩ Max. |
Insulation Resistance | 100MΩ Min. |
Contact Form | SPST-NO |
Operating Force (OF) | customizable |
Operating Temperature | -40℃～+85℃ |
Contact Material | NO |
Electrical Life | 300,000次 Min. |
Mechanical Life | 300,000次 Min. |
Protection Class | IP67 |
Terminal & Lever | customizable |
Outline | customizable |
Withstand Voltage | 500 VAC (50~60HZ) leakage current<10mA --Between terminals. 1000 VAC (50~60HZ) current<10mA --Between terminals and non current carrying metal components --Terminal and shell |
