Product advantages:
Durable contact design significantly reduces wear and tear, ensuring accurate and error free signal transmission; The low resistance characteristic reduces energy consumption and improves the overall operational efficiency of the equipment; High mechanical durability can withstand high-frequency on-off operations, perfectly adapting to long-term continuous work requirements.
From small automation instruments to heavy-duty industrial control equipment, the ZINGEAR G306-150S09A sealed ultra small micro switch provides excellent quality to build a stable operating foundation for various automation equipment. It is a cost-effective electrical control solution provided by Jinyu Technology for industry customers.
Key Features:
·Waterproof and dustproof (IP67) design
·Having global safety certification
·Equipped with various forms of operating handles
·The types of wire connectors are complete
Technical parameters：
Operating Voltage | 30VDC/14VDC |
Rated Current | 0.1A/10μA |
Contact Resistance | 100mΩ |
Insulation Resistance | 100MΩ |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | customizable |
Operating Temperature | -40℃～+85℃ |
Contact Material | customizable |
Electrical Life | 100,000次 Min. |
Mechanical Life | 500,000次 Min. |
Protection Class | IP67 |
Terminal & Lever | customizable |
Outline | customizable |
Withstand Voltage | 500 VAC (50~60HZ) leakage current<10mA --Between terminals. 1000 VAC (50~60HZ) current<10mA --Between terminals and non current carrying metal components --Terminal and shell |

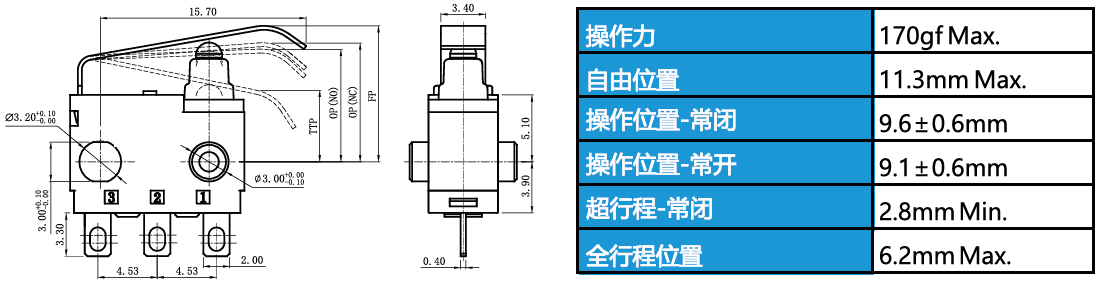

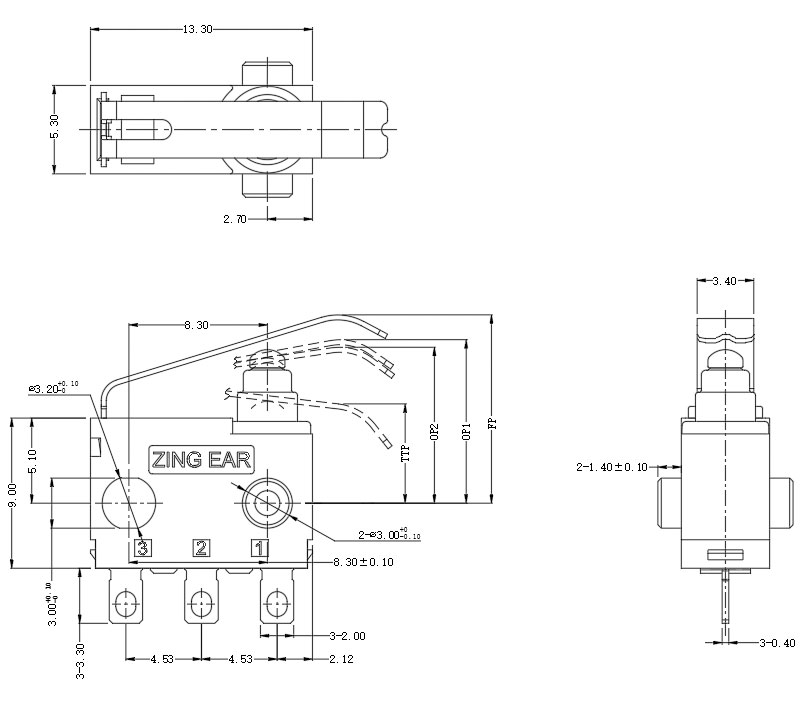

Drawings：
