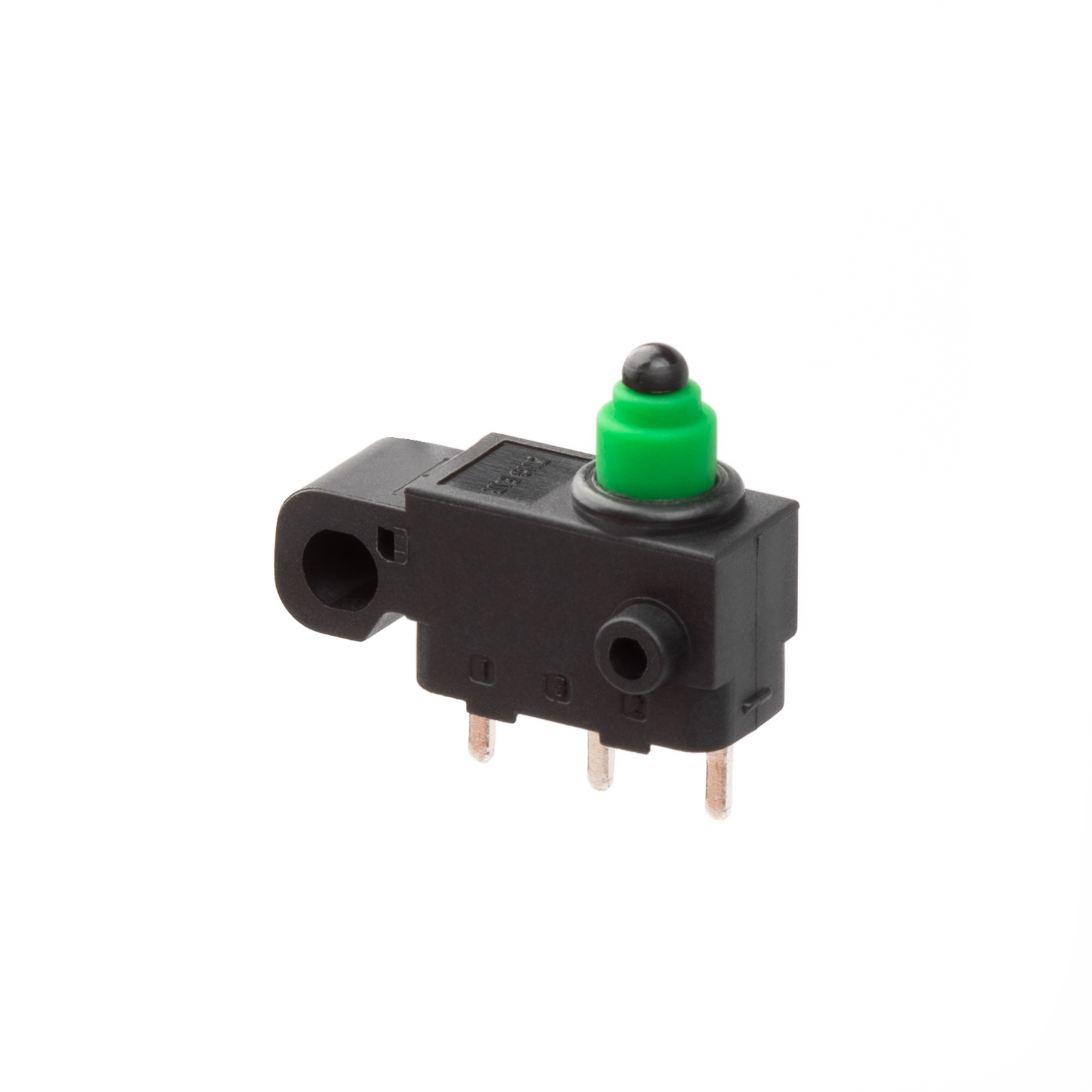

The ZINGEAR micro switch G303A-180P00A20E is a high-reliability switch specifically designed for electric toothbrushes, precisely meeting the core requirements of home appliances for stable performance, extended lifespan, and strict safety compliance.
Product advantages:
Compatible with high-frequency usage scenarios of electric toothbrushes
With its waterproof and dustproof sealing design, it can confidently handle the high humidity environment of the bathroom, effectively preventing short-circuit failures caused by water vapor intrusion, ensuring safe use.
Using high-quality materials and precision manufacturing techniques, the silver-nickel alloy durable contacts are paired with a low-resistance design, ensuring rapid on-off response and precise and accurate mode switching.
Enhanced with high mechanical durability, its fatigue life significantly exceeds industry standards, easily accommodating the long-term, high-frequency start-stop usage demands of electric toothbrushes, thereby extending the overall product lifespan.
·Waterproof and dustproof (IP67) design
·Having global safety certification
·Equipped with various forms of operating handles
·Complete types of wiring terminals
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
Operating Voltage | 48VDC/12VDC |
Rated Current | 0.1A/3A |
Contact Resistance | 100mΩ Max. |
Insulation Resistance | 100mΩ Min. |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | customizable |
Operating Temperature | -40℃～+85℃ |
Contact Material | customizable |
Electrical Life | 100,000次 Min. |
Mechanical Life | 500,000次 Min. |
Protection Class | IP67 |
Terminal & Lever | customizable |

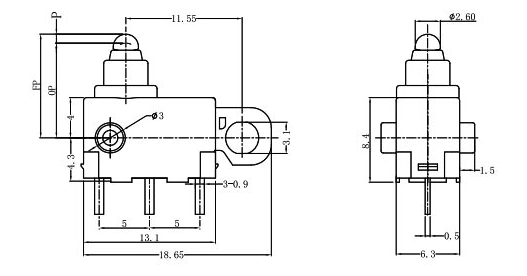

Outline | customizable |
Withstand Voltage | 500 VAC (50~60HZ) leakage current<10mA --Between terminals. 1000 VAC (50~60HZ) current<10mA --Between terminals and non current carrying metal components --Terminal and shell |
