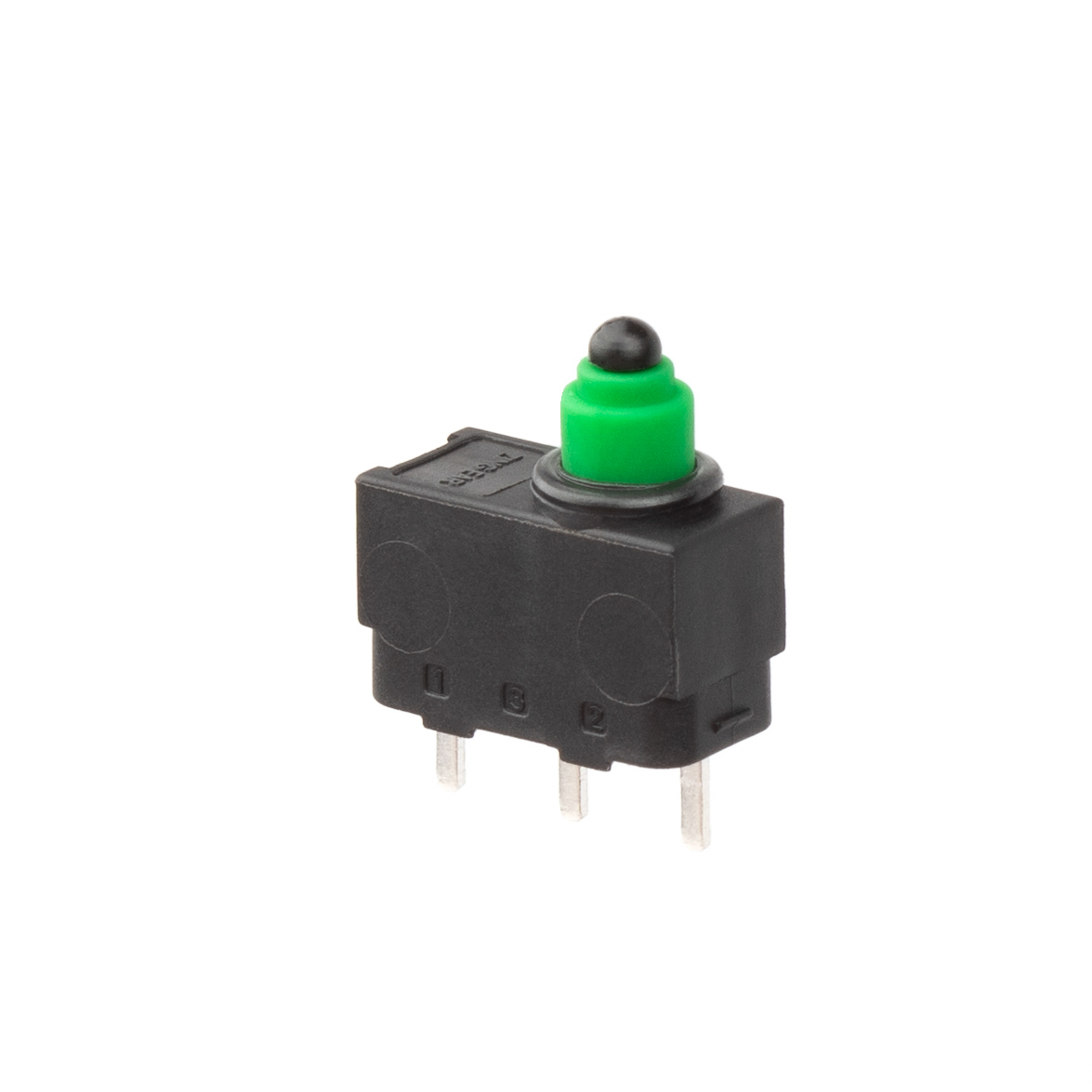

The ZINGEAR microswitch G303A-180P00A21A is a high-reliability switch specifically designed for household appliances such as air conditioners. It focuses on core requirements such as stable performance, extended lifespan, and strict safety compliance, making it a reliable control core for home appliances.
Product advantages:
Precisely adapts to air conditioning application scenarios
The waterproof and dustproof design meets IP protection standards, effectively resisting moisture and dust intrusion in the air conditioning operating environment, and preventing contact oxidation and malfunction.
Using high-quality contact materials and precision manufacturing processes, the low resistance characteristics ensure efficient circuit switching, reducing energy consumption and heat generation, making it suitable for key control scenarios such as air conditioning fan operation and compressor start-stop.
Enhanced with high mechanical durability, it can withstand over a million cycles of operation, meeting the long-term continuous operation requirements of air conditioning and reducing the frequency of equipment maintenance.
·Waterproof and dustproof (IP67) design
·Having global safety certification
·Equipped with various forms of operating handles
·Complete types of wiring terminals
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
Operating Voltage | 48VDC/12VDC |
Rated Current | 0.1A/3A |
Contact Resistance | 100mΩ Max. |
Insulation Resistance | 100mΩ Min. |
Contact Form | Single Knife Double Throw (SPDT) |

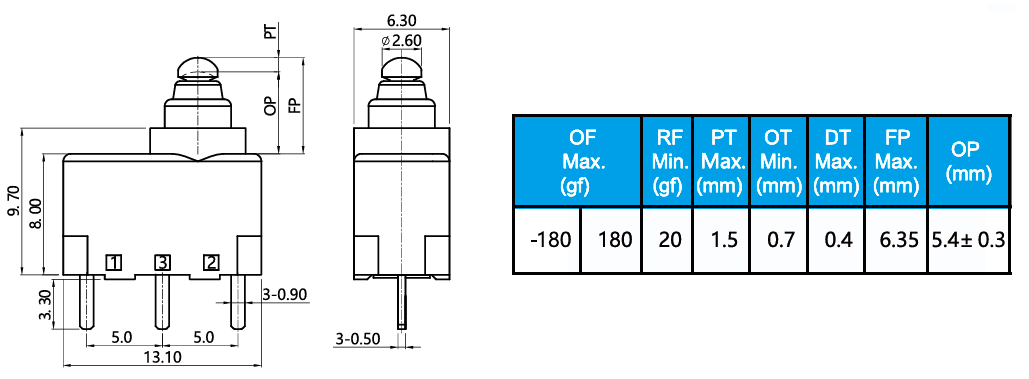

Operating Force (OF) | customizable |
Operating Temperature | -40℃～+85℃ |
Contact Material | customizable |
Electrical Life | 100,000次 Min. |
Mechanical Life | 500,000次 Min. |
Protection Class | IP67 |
Terminal & Lever | customizable |

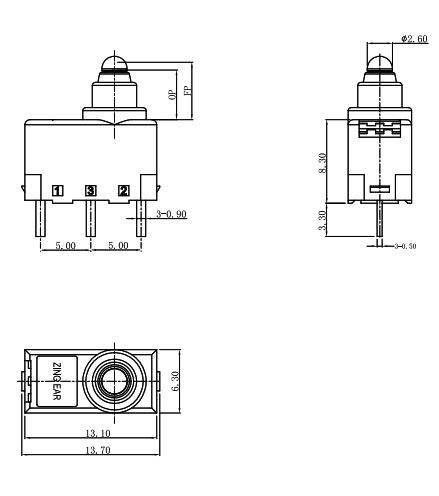

Outline | customizable |
Withstand Voltage | 500 VAC (50~60HZ) leakage current<10mA --Between terminals. 1000 VAC (50~60HZ) current<10mA --Between terminals and non current carrying metal components --Terminal and shell |
