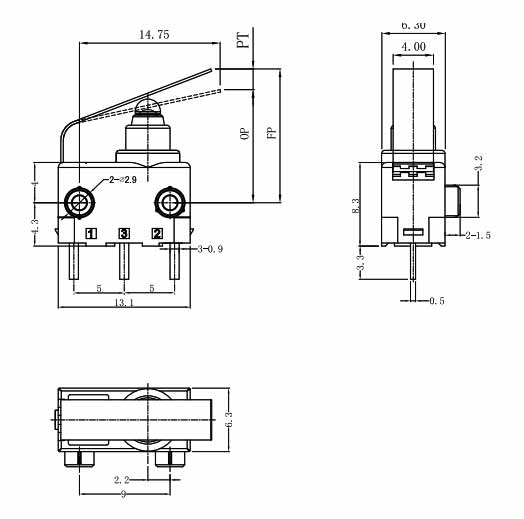

The ZINGEAR micro switch G303A-180P03A23C is a high-reliability switch specifically designed for high-humidity and dusty environments such as dishwashers. It focuses on core requirements such as stable performance, extended lifespan, and strict safety compliance, making it a reliable choice in the field of household appliances.
Product advantages:
Compatible with the harsh environment of dishwashers
With dual waterproof and dustproof protection, the sealed structure design blocks the intrusion of water vapor and dust, meeting the needs of high-frequency water washing and use in humid environments such as dishwashers.
High mechanical durability design, with a mechanical lifespan far exceeding industry standards, can withstand long-term high-frequency start-stop cycles in dishwashers, reducing the frequency of equipment maintenance.
·Waterproof and dustproof (IP67) design
·Having global safety certification
·Equipped with various forms of operating handles
·Complete types of wiring terminals
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
Operating Voltage | 48VDC/12VDC |
Rated Current | 0.1A/3A |
Contact Resistance | 100mΩ Max. |
Insulation Resistance | 100mΩ Min. |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | customizable |
Operating Temperature | -40℃～+85℃ |
Contact Material | customizable |
Electrical Life | 100,000次 Min. |
Mechanical Life | 500,000次 Min. |
Protection Class | IP67 |
Terminal & Lever | customizable |
Outline | customizable |
Withstand Voltage | 500 VAC (50~60HZ) leakage current<10mA --Between terminals. 1000 VAC (50~60HZ) current<10mA --Between terminals and non current carrying metal components --Terminal and shell |
