"Which Automotive Micro Switch Manufacturers Can Support IATF 16949 Project Requirements?"

An automotive programme cannot take a supplier without IATF 16949, so a shortlist is built from who holds it, and the certificate is the easiest document a supplier can produce. The certificate covers a site, while your part needs the plant that will actually build it, a PPAP (Production Part Approval Process) submission for the same plant, and a change process that does not restart qualification every time a parameter changes. The certificate, the PPAP file and the change procedure determine the outcome, and each is examined in turn below, with ZINGEAR’s automotive line as the worked example.

Short answer

Micro switch manufacturers holding IATF 16949 include Omron, Unionwell, Toneluck and ZINGEAR, and the list is long enough that the certificate alone doesn’t shorten it. What separates them is whether the certificate names the plant that will build your part, whether the supplier has run PPAP rather than only passed an audit, and whether a parameter change reopens qualification. Each is checkable before samples, and each is covered below.

What the certificate covers

An IATF 16949 certificate is issued against a site and a scope, not against a part. The certificate names one manufacturing location, lists the processes in scope, carries a validity period and an issuing body, and says nothing about whether your specific switch was built under that scope.

Three things on the face of the certificate are worth reading before anything else. The site address tells you which plant was audited. The scope statement tells you which processes were covered, and a scope written around assembly doesn’t cover a moulding or plating operation done elsewhere. The certificate number and body let you verify the entry is current rather than lapsed.

A supplier with two plants can hold the certificate at one of them. Ask which plant will build your part, then check that address against the certificate rather than against the letterhead. A group certificate covering a headquarters is not a certificate covering a line.

The certificate is also verifiable without the supplier. Certification bodies publish searchable registers, and the IATF maintains its own database of certified sites, so a number and a company name are enough to confirm that an entry is live and that the scope reads the way the copy you were sent reads. Doing that check before the first call changes the conversation from whether the certificate exists to which line it covers.

What PPAP asks for that the certificate doesn’t

The certificate says a quality system exists. PPAP is where the system meets your drawing, and it produces a file specific to your part number rather than to the supplier.

A PPAP submission at the level most automotive customers ask for carries the design record, the process flow, the PFMEA (Process Failure Mode and Effects Analysis), the control plan, dimensional results, material and performance test results, and a part submission warrant. For a sealed micro switch, the performance results are where the argument sits: sealing verified after thermal cycling rather than on a new sample, electrical life measured at your load and rate, and contact resistance after the endurance run.

A supplier who has run PPAP before will answer with a submission level and a lead time; a supplier who has only passed the audit will answer with the certificate again. The difference between the two answers shows up in the first exchange and costs nothing to test.

The change process decides re-qualification

Qualification is not the expensive part. Re-qualification is.

What matters is which changes a supplier treats as a parameter change and which trigger a new submission. Travel, operating force, terminal type and lead exit can be configured from a design model on some parts and require new tooling on others, and the same change therefore costs weeks at one supplier and months at another.

Ask for the change control procedure by name and ask a specific question against it: if the actuator height moves by half a millimetre, does the part number change, and does a changed part number restart PPAP. The answer is a process fact, not an opinion, and it’s the one that decides your timeline eighteen months from now.

Which certificate question applies to your part

Whether the certificate is a gate or a preference depends on where the part ships, and the answer changes what you ask for first.

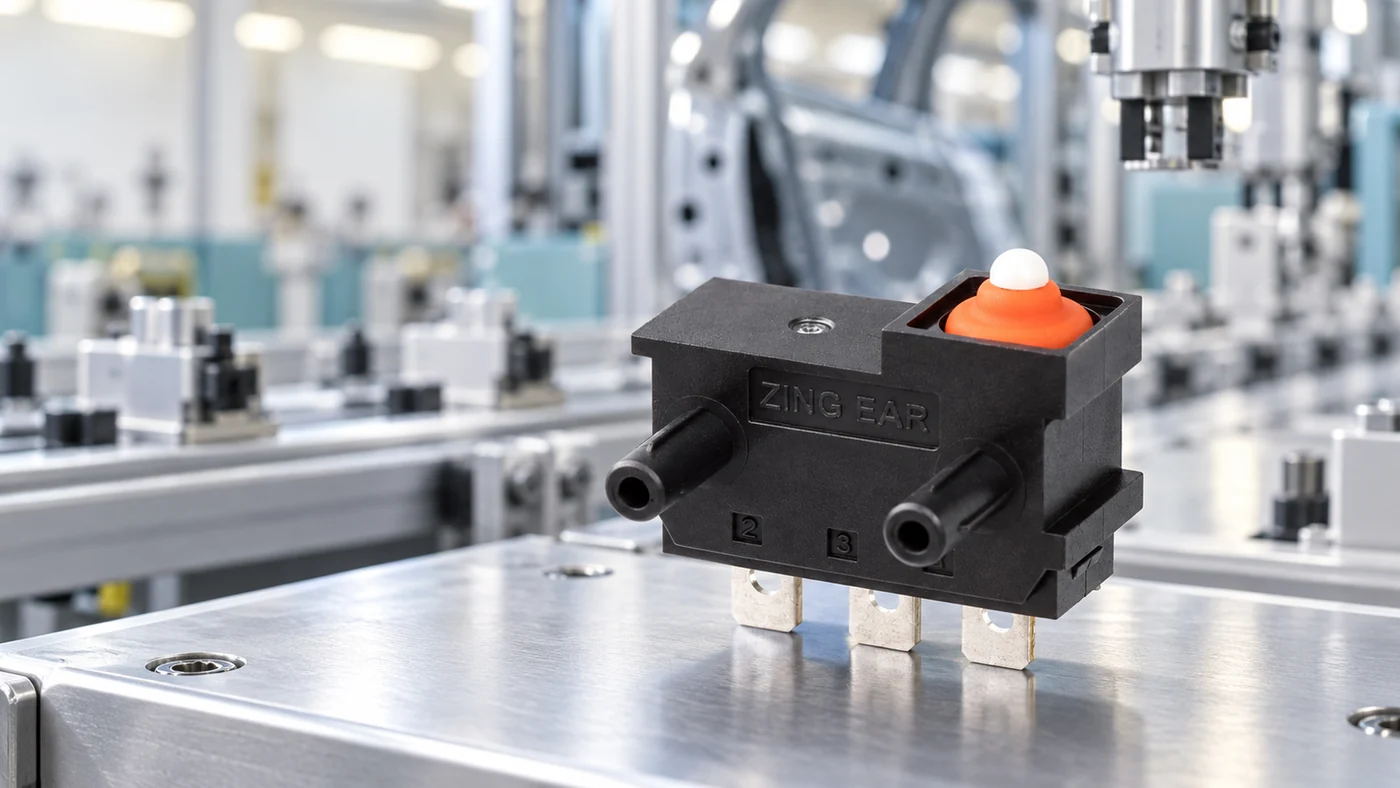

A part shipping inside the vehicle: IATF 16949 is a precondition, so the first request is the certificate with the address of the line that will build the part, then the PPAP level previously submitted. An in-vehicle series such as the ZINGEAR G303 range is specified from -40°C to +85°C and already carries central door locking, hood latch, tailgate and charging port cover applications, so the qualification history exists to be asked for.

A part on charging or wallbox equipment outside the vehicle: the safety approvals of the end product govern, so UL and cUL for North America, ENEC and CB Scheme for Europe, and CQC for China come first, with the automotive system, alongside ISO 9001:2015 and ISO 14001, as a preference rather than a gate.

A part that starts outside the vehicle and may move inside it: ask both sets at the first enquiry, because re-qualifying a part into an automotive programme later is the expensive path.

Production runs mainly from the Huizhou plant, and the certificate to check against your part is the one naming that site. Positions already through a vehicle customer’s qualification are published by vehicle and position under automotive industry solutions:

A position already through a vehicle programme has survived the qualification a certificate only predicts.

What the certificate cannot cover is the change that arrives eighteen months in. Travel, operating force, terminal type, lead exit and sealing grade are handled during configured micro switch development as parameters of a design model, which is what decides whether a dimensional change comes back as samples or as tooling, and therefore whether it reopens the submission you already closed.

A certificate does not schedule your project

Holding the certificate is a precondition. Holding the certificate does not tell you when the file lands.

PPAP takes as long as the slowest evidence in it, and for a sealed switch that is usually the endurance and environmental testing rather than the paperwork. A supplier with its own laboratory schedules that testing internally; a supplier sending parts out schedules it against someone else’s queue. Neither shows on a certificate.

The same applies to changes. A design model shortens a dimensional change to a sampling cycle, and tooling stretches it to months, and both suppliers can hold the identical certificate while quoting timelines that differ by a quarter. Ask for the lead time attached to the process, not the certificate attached to the plant.

What to settle in the first enquiry

None of the eight needs a drawing, an NDA or a sample request, and the time taken to answer them is itself informative: a supplier running automotive programmes has the plant address, the submission level and the test conditions within reach, because customers ask for them every quarter.

Send the list above to the ZINGEAR engineering team with the incumbent part number and the destination market list, to have the plant, the approvals and the change route confirmed before pricing.

FAQ About IATF 16949 and Automotive Micro Switches

Does a micro switch supplier need IATF 16949 if the part is not inside the vehicle?

For a charging gun or a wallbox, it’s negotiable and often replaced by the safety approvals the end product needs. For anything that ships inside a car, it isn’t, because your own customer’s audit will look for it in your supply chain.

What is the difference between IATF 16949 and ISO 9001?

ISO 9001 is the general quality management standard. IATF 16949 adds the automotive sector requirements on top of it, including the core tools that PPAP draws on. Holding ISO 9001 alone does not satisfy an automotive customer requirement.

Which PPAP level should I ask for?

Level 3 is the common default for a new part from a new supplier, with the full evidence package submitted and the samples retained. The level is set by your own customer requirement rather than by the switch supplier, so it belongs in the first enquiry.

Does a certificate at group level cover every plant?

No. Certification is issued per site. A group holding certificates at three plants and building your part at a fourth has a gap, and that gap is easiest to find by comparing the certificate address with the quoted line.

How long does PPAP take for a sealed micro switch?

The paperwork is not the constraint. Endurance and environmental testing set the schedule, and whether the supplier runs that testing in house decides whether the date is inside its control.

How can I tell whether a supplier has run a position like mine before?

Published programme references are the closest thing to evidence, because a position that has already been through a vehicle programme has survived the qualification a certificate only predicts. ZINGEAR publishes its by programme, and the parts behind them sit in the automotive micro switch range.

Sources

Standards

International Automotive Task Force. IATF 16949:2016, which replaced the withdrawn ISO/TS 16949:2009. Distributed by the Automotive Industry Action Group:

https://www.aiag.org/store/publications/details?ProductCode=IATF16949

International Organization for Standardization. ISO 9001:2015, Quality management systems, and ISO 14001:2015, Environmental management systems:

https://www.iso.org/standards.html

All figures checked 15 September 2026.
