"How Can I Find Reliable Automotive Micro Switch Manufacturing Sources?"

A buyer asks for the certificates and the test reports before fixing an automotive micro switch shortlist.

Certificates name a plant, cover a product family and carry one market, and a report becomes readable at part level only once all three are closed.

Later sections cover how to read a scope statement and a test report conditions line, what to send so a supplier can answer at part level, and which gaps in a certificate are normal at enquiry stage.

What a certificate actually says

A certificate states a site, a scope and a date. No part number appears on the document.

That distinction is where most sourcing time gets lost. A supplier sends an IATF 16949 certificate, the logo is right, the number is real, and the document still leaves three questions open.

Whose site. Certificates are issued to an address. A group holding several plants can hold a certificate on one of them, and a copy sent on group letterhead does not say which. The address on the certificate and the address of the line being quoted have to match, and asking for both together is a one-line question.

Which activities. Scope wording varies more than the mark does. A scope reading manufacture of switches covers something different from a scope reading assembly of switches, because the second one leaves moulding somewhere else.

Which market. IATF 16949 puts a quality system around in-vehicle production. Whether the switch itself carries the safety approvals the end product needs is a separate submission. UL and cUL cover North America, ENEC (European Norms Electrical Certification) and CB Scheme (IECEE Certification Body Scheme) cover Europe, and CQC covers China.

📌 On certificate copies: Ask for the number and check it in the certification body's register yourself. A live entry shows the scope as the body wrote it, which is not always how the copy you were sent reads.

Reading a scope statement line by line

A scope statement is short, and every clause in it does work.

Exclusions and the register entry get skipped most often. Exclusions rarely appear in the copy a supplier forwards, and the register entry is the only place a scope can be read as written.

Reading a test report: the conditions line

A figure means what its conditions say it means. Load, because a mechanical life figure is usually measured with no load. Load type, because resistive, inductive and lamp loads burn contacts differently. Actuation rate, because a part cycled at 60 operations a minute dissipates heat differently from one cycled at 6. Ambient temperature, because contact resistance and spring behaviour both move with it.

A report giving all four is describing a test. A report giving a number and a standard reference is describing a category.

The same applies to a sealing figure. IP67 is measured on a new sample, so a report dated at part approval says the seal was intact then. Whether it was verified again after thermal cycling is a separate question, and the answer is either a second report or nothing.

A supplier that runs its own testing can answer a conditions question against a part number; a supplier that subcontracts it answers against a series. Establish which case applies before the report arrives. Where the load and the actuation rate were recorded on the supplier's own benches, a re-test after thermal cycling can be scheduled and dated in the same conversation; where the testing was bought in, the date belongs to a third party and moves on their queue.

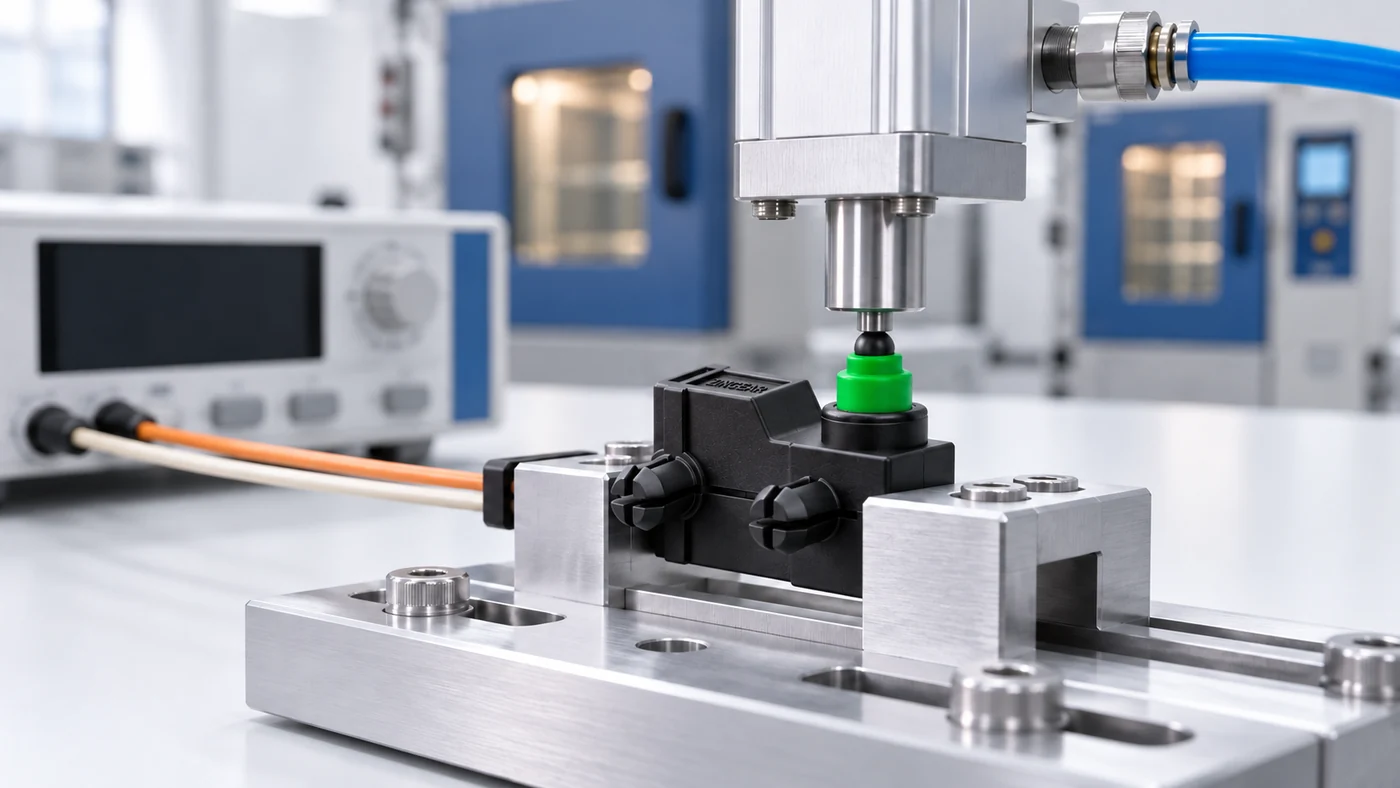

ZINGEAR records both values against the part number because life, sealing and environmental testing run on its own benches, including a salt spray chamber and air tightness test equipment, with contact resistance, operating force, release force and travel logged automatically on the outgoing test machines. A conditions question about the ZINGEAR G303 automotive range or the ZINGEAR G5W11 sealed range comes back with the load and the rate attached instead of with a series figure.

What to send so a supplier can answer at part level

Most first enquiries get a catalogue answer because they contain a catalogue question. A supplier cannot quote conditions against a part number until the part is defined.

Sending the mechanical interface early is what turns a catalogue reply into a part-level one, because the aperture is the constraint a supplier cannot infer from a description.

Which gaps are normal at enquiry stage

Blanks at enquiry stage sort into three groups, and only the third is a reason to stop.

Normal. A price without a volume attached. A sample lead time quoted as a range. Terminal plating salt spray hours absent from a catalogue page, because plating is usually configured. A conditions line absent from a web page but available on request.

Worth one more question. Scope exclusions absent from a forwarded certificate. A life figure with no load stated anywhere in the document set. A sealing claim with no construction named.

A stop. A certificate copy whose number returns nothing in the register. A site address that does not match the quoting line, with no explanation. A refusal to name which tests are subcontracted.

The middle group is where most enquiries actually sit, and most of it closes with a single reply.

Where document review stops

Reading the documents well shortens the list. It does not shorten the qualification.

A supplier can hold a clean certificate, a full conditions line and a laboratory on site, and still be at the start of PPAP (Production Part Approval Process) for your position. What a submission asks for beyond the certificate, and which level applies to which customer type, are set out under IATF 16949 project requirements. What document review does settle is which suppliers are worth spending a qualification on.

What to confirm before samples

Load, load type, actuation rate and ambient come back attached to every published figure, quoted against your part number by the ZINGEAR engineering team before samples.

FAQ About Verifying a Micro Switch Manufacturing Source

Is an IATF 16949 certificate enough to shortlist a supplier?

The certificate settles the quality system question at an audited site, and leaves the site match, the scope wording and the safety approvals on the end product open. All three are one-line questions.

How do I verify a certificate without contacting the supplier?

Certification bodies publish registers. Search the certificate number and read the scope as the body wrote it.

What does a scope exclusion look like in practice?

A clause removing a process from the audited system, most often design or a specific manufacturing step. For a sealed switch, an exclusion covering moulding matters more than it looks.

Why does actuation rate change a life figure?

Faster cycling gives contacts less time to cool between operations, so the same part tested at 60 operations a minute and at 6 returns different numbers on the same load.

Should I ask for salt spray hours on a sealed part?

Yes for any position exposed to road salt. The seal protects the contact interface, and the terminals sit outside it on their own corrosion schedule.
