"Top 7 Automotive Micro Switch Manufacturers for Procurement in 2026: How Each One Behaves When the Spec Changes"

A procurement file sorts suppliers into tiers and puts the high-end manufacturers in one group, the cost-effective ones in another.

Does the tier still hold once the drawing changes?

Neither tier says how long a revised sample takes after a change, whether the certificate still covers the revised part, or who re-runs the qualification.

Sample turnaround, certificate coverage and order size appear against each of the seven, so a change can be costed before it is raised.

What a tier predicts and what it does not

Tiering works. A supplier placed in the high-end group will quote a higher unit price and arrive with more engineering support attached to the quote, and a supplier placed in the cost-sensitive group will do the reverse. Both predictions hold on a frozen drawing.

An automotive programme rarely stays frozen. A packaging review moves a mounting hole, a cold-weather test raises the operating force, a destination market gets added, or a harness change turns a soldered lead into a connector. Each one is a change request, and each one lands on the supplier as a different kind of work.

How a change lands is decided further down the supplier's process.

Sample turnaround after the change. A first sample and a revised sample are different figures. The first describes a supplier's capacity to make a part. The second describes the process, because it includes finding the tool, scheduling it and getting the part back out.

Certificate coverage after the change. A certificate is issued to a site for a scope. Whether a revised part number still sits inside that scope decides whether the paperwork travels with the change or has to be rebuilt.

Who re-runs the qualification. If endurance and sealing testing run inside the supplier, the re-test sits on the supplier's schedule. If either is subcontracted, the date moves outside the supplier's control and outside yours.

📌 On comparing two sample lead times: Ask for the first-sample figure and the revised-sample figure together. The gap between them is the process, and a supplier quoting only the first figure has answered a different question.

How each supplier behaves when the drawing moves

A declared capacity figure and a volume shipped on a named programme are different evidence: capacity describes what a plant could produce, while a programme volume has an end customer's production behind it. How quantity itself changes the shortlist is worked through under micro switch suppliers for bulk orders.

The seven suppliers and what a change costs at each

A change that stays inside the electrical envelope and a change that moves the aperture land on different entries below.

1. Omron

Catalogue substitution, with no revised-sample route.

The sealed ultra subminiature category originates here, and a change to a catalogue part is a move to a different catalogue part with its own datasheet and its own figures. There is no revised sample, because there is nothing to revise, which makes the change fast and the outcome fixed.

Best for: A frozen drawing, where the change is a selection rather than a modification.

Revised sample: Not applicable; catalogue substitution.

Certificate after a change: A different part number with its own register entry, announced by product change notice.

Order size: Catalogue production at global scale.

Strengths

Product change notice, so a process or material change is announced before it ships.

Test conditions published per part number for the new part as well as the old.

Limitations

Configured route not published, so a dimension outside the catalogue goes to a different part number.

Configured part quantity not published.

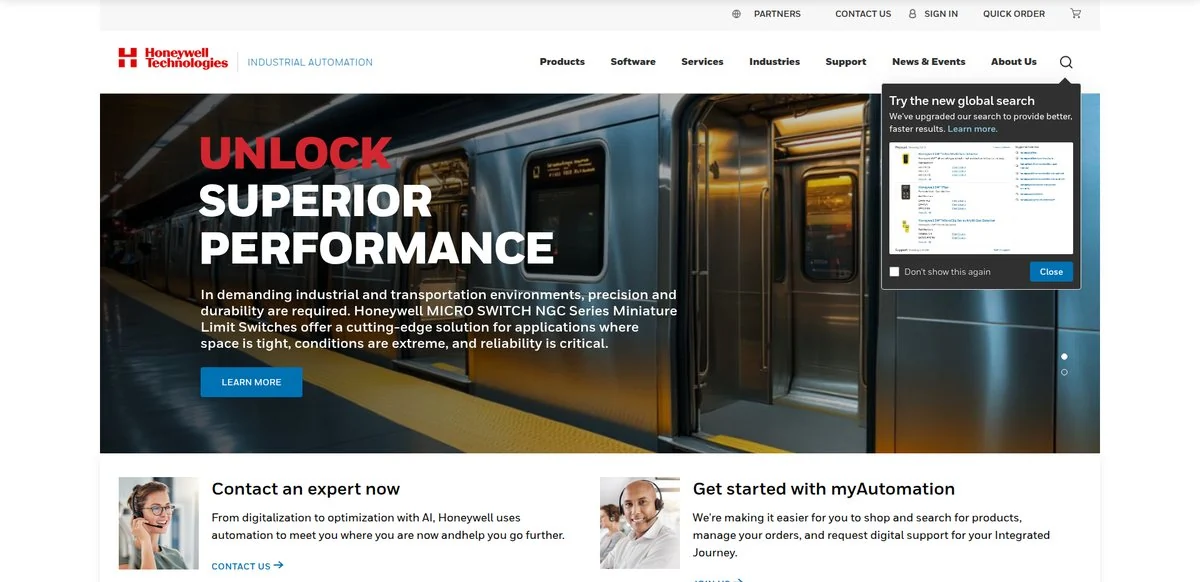

2. Honeywell

Project schedule on engineered ranges.

Custom engineering exists on selected heavy-duty ranges and runs on a project schedule. A project schedule puts the revised-sample date outside the quotation, which suits a change planned a quarter ahead and not one found in a design review.

Best for: A planned change on a heavy-duty position, budgeted as a project.

Revised sample: Project schedule on engineered ranges.

Certificate after a change: A different part number on catalogue ranges, announced by product change notice.

Order size: Catalogue production, plus engineered runs.

Strengths

Endurance testing in house on the heavy-duty range.

Product change notice on catalogue ranges.

Limitations

Revised-sample figure not published.

CQC not published.

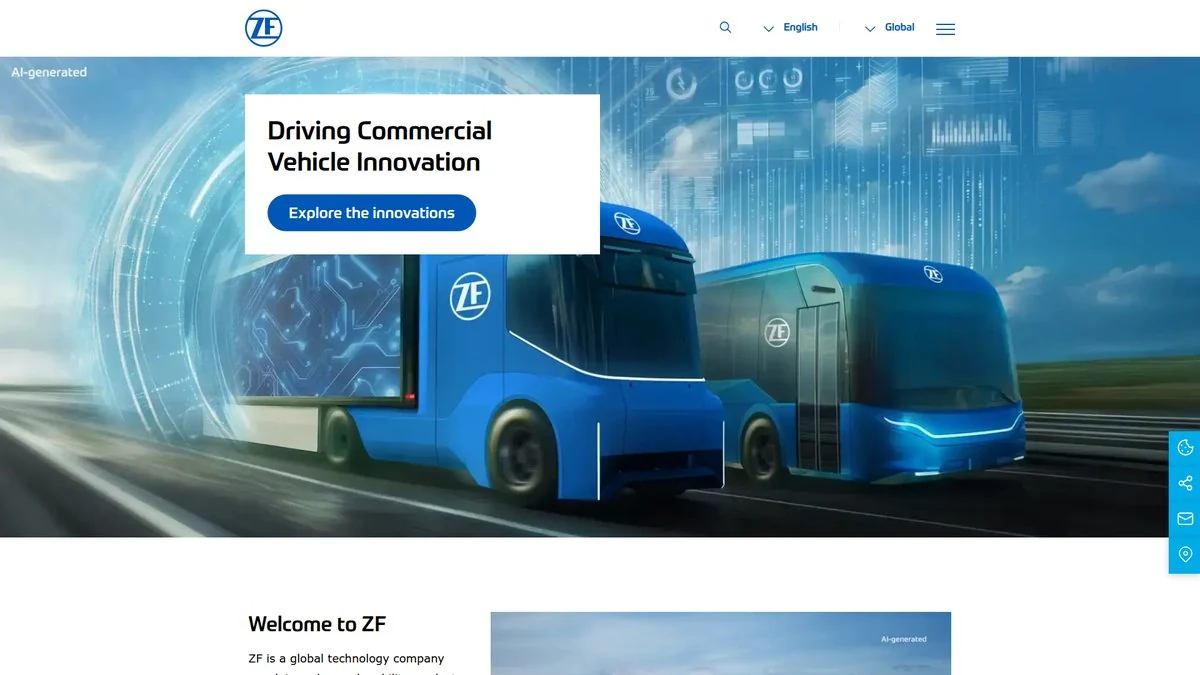

3. ZF (Cherry)

Tailored actuation on project terms.

Supplies precision switches with tailored actuation offered alongside a core catalogue footprint. Actuation is the dimension that moves, while the body and the terminals usually stay fixed, which narrows what a change request can cover.

Best for: A change confined to operating force or differential travel.

Revised sample: Project schedule on tailored actuation.

Certificate after a change: A different part number on catalogue ranges, announced by product change notice.

Order size: Catalogue production, plus tailored runs.

Strengths

Endurance testing in house.

Product change notice.

Limitations

Revised-sample figure not published.

Sealing construction published at series level.

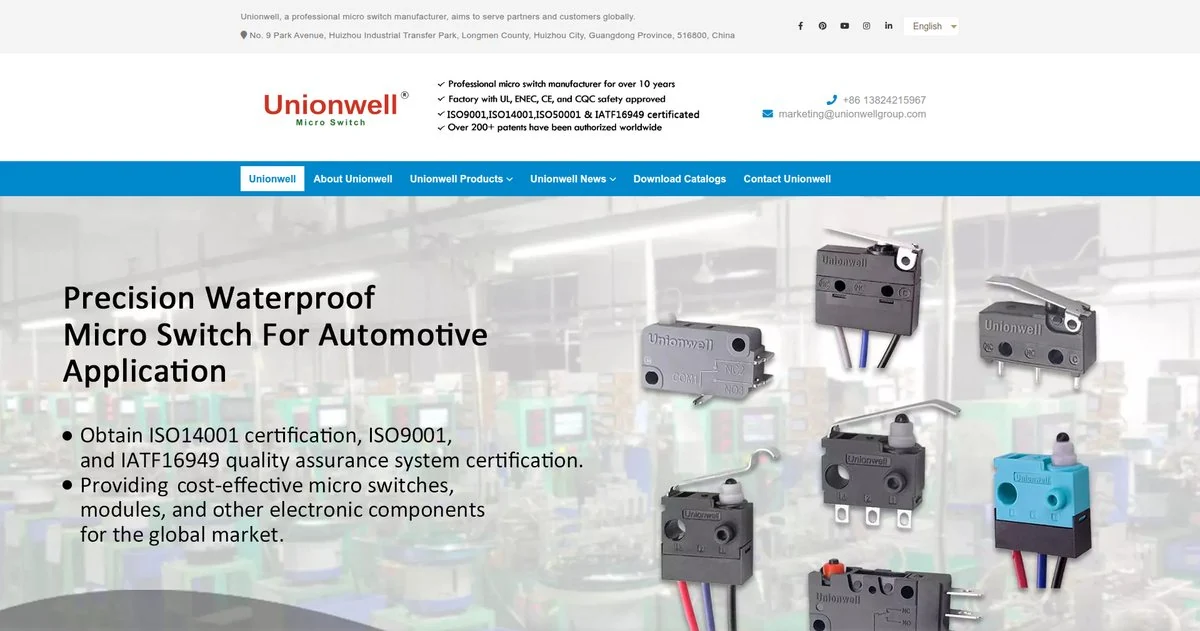

4. Unionwell

Volume catalogue series, change route not published.

Publishes 350 million pieces a year with 80 percent of processes automated, and holds IATF 16949, ISO 9001 and ISO 14001 alongside UL, cUL, ENEC, CB and CQC. Customisation is stated at category level, so what a change costs is settled in the enquiry rather than on the page.

Best for: Volume where the published series already fits and no change is planned.

Revised sample: Not published.

Certificate after a change: Not published per change type.

Order size: 350 million pieces a year, volume catalogue series.

Strengths

350 million pieces a year, 80 percent of processes automated.

Full approval set across all four destination markets.

Limitations

Revised-sample lead time, certificate coverage after a change and change notification all unpublished.

Contact material not published per model.

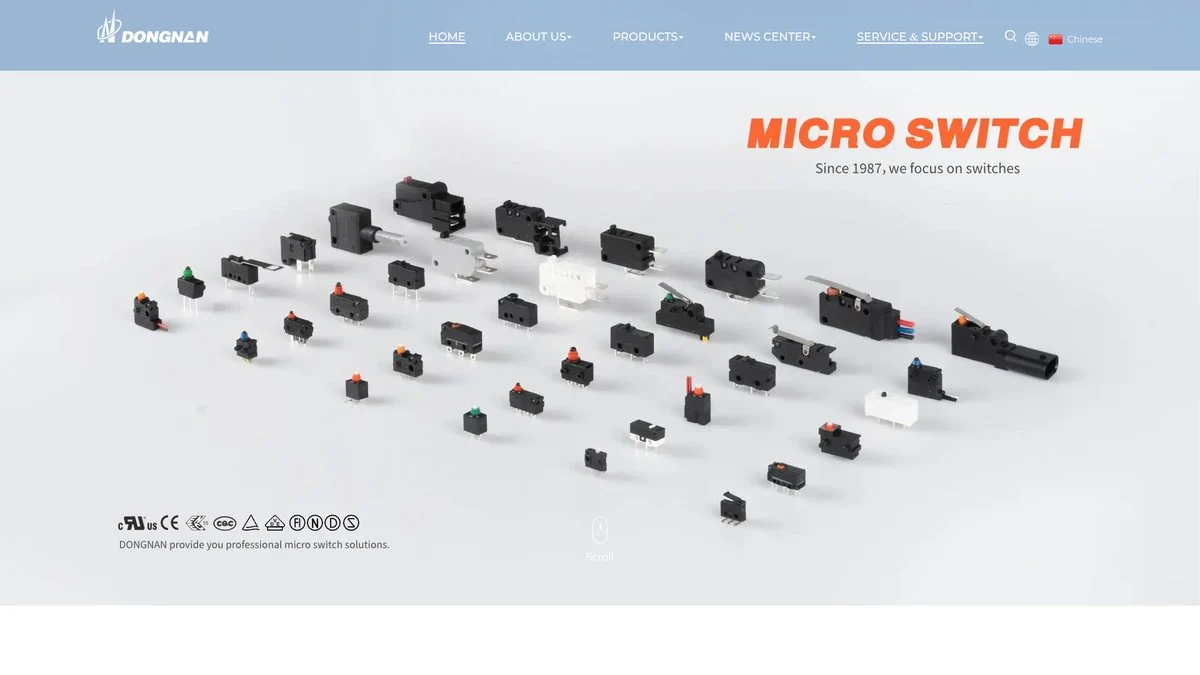

5. DONGNAN

Volume series, with part of the testing in house.

Founded in 1987 and listed, publishing over 200 million pieces a year and exporting to more than 40 countries, with more than 80 patents. A UL witness laboratory on site keeps the safety re-test inside the plant, which is the one block of a change timeline it does not have to queue for.

Best for: Volume on a general-purpose or waterproof series where UL governs.

Revised sample: Not published.

Certificate after a change: Not published per change type.

Order size: Over 200 million pieces a year, volume catalogue series.

Strengths

UL witness laboratory on site.

Over 200 million pieces a year, exports to more than 40 countries.

Limitations

Revised-sample lead time and change notification not published.

Current range published as 0.1A signal parts up to 5A at 250 VAC.

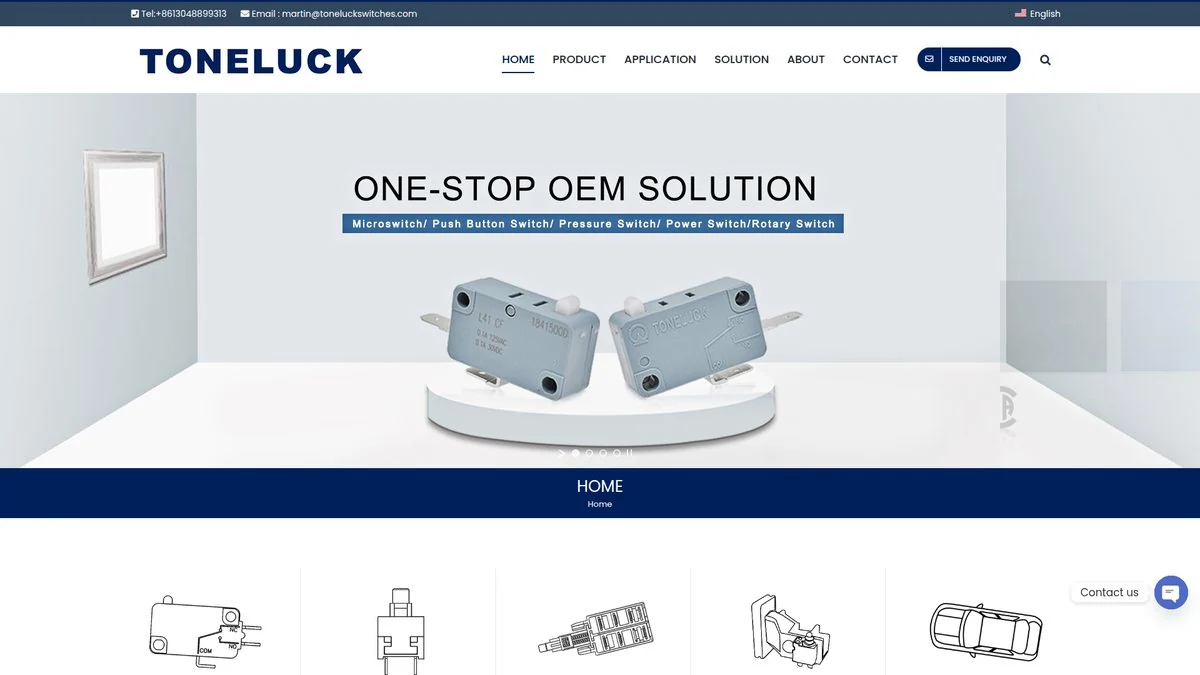

6. TONELUCK

Project led, with the tool room inside the group.

Builds automotive electrical parts, gas appliance controls and high-end appliance switches, with vertical integration from tooling through to quality control. A geometry change does not cross a company boundary here, which is what decides the date when new tooling is unavoidable.

Best for: A change that needs new geometry rather than a new parameter value.

Revised sample: Not published.

Certificate after a change: Not published per change type.

Order size: Project led, high-end appliance and automotive.

Strengths

Tooling through to quality control inside the group.

Publishes a high-temperature range to 220°C and a load range to 22A.

Limitations

ISO/TS 16949 rather than IATF 16949.

Revised sample, certificate coverage and change notification all unpublished.

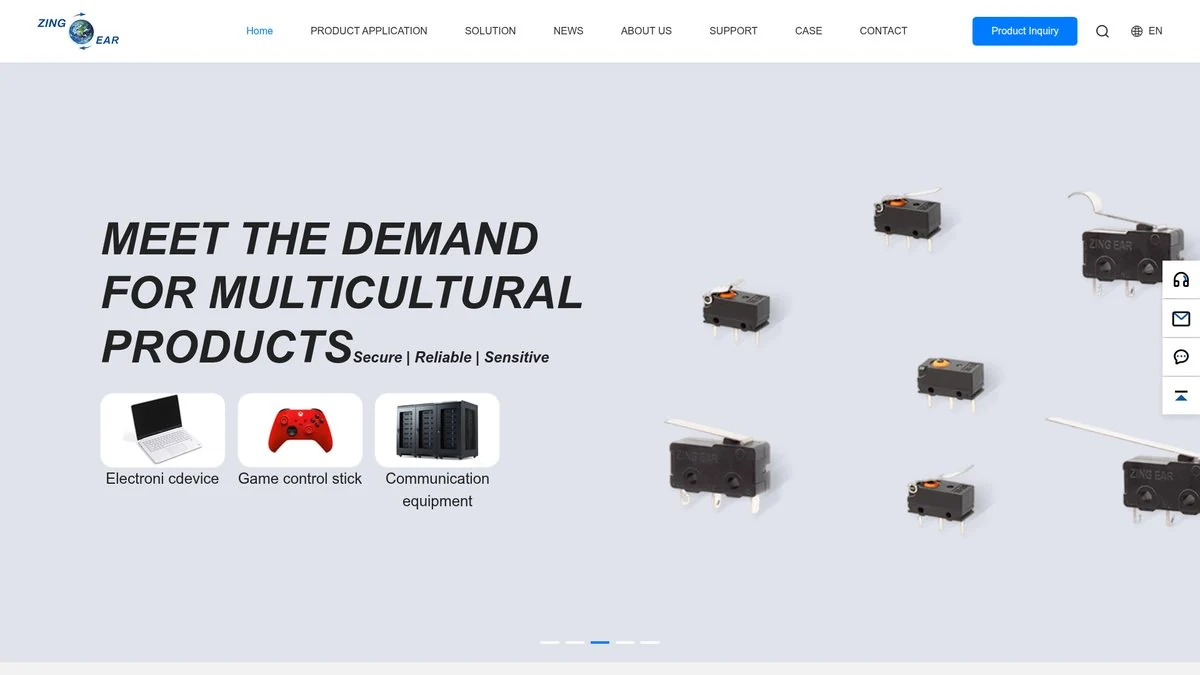

7. ZINGEAR

Configured runs, with six dimensions held as parameters.

Holds travel, operating force, terminal type, lead exit, sealing grade and electrical rating as parameters in a design model, so a change to any of the six returns as samples in weeks under the original qualification. Builds micro switches in Huizhou since 1995 across five product lines, shipping over 20 million units a year on named customer programmes. Life, sealing and environmental testing run on site, so the re-test that follows a change is scheduled inside the plant rather than queued at a third party. Which changes fall inside that route is settled during configured micro switch development, before a changed part ships.

Best for: A mid-programme change where the qualification has to survive.

Revised sample: Weeks on a parameter change, under the original qualification.

Certificate after a change: Parameter changes stay inside the existing design model and keep the certificate; sealing grade and actuator geometry take a new part number, confirmed before a changed part ships.

Order size: Over 20 million units a year on named customer programmes; configured runs across five product lines.

Current range: 3A to 15A across five product lines; the ZINGEAR G303 automotive range is published from 0.1A to 5A, at 12VDC, 48VDC, 125V or 250VAC by part number.

Strengths

Assembly lines are built per series and a derivative part number is reached by changing jigs rather than tooling, with servo placement holding ±0.02mm and outgoing defect rate below 0.1 percent.

300,000 mechanical cycles and 200,000 electrical cycles, generated in ZINGEAR's own product laboratory, with the conditions behind either figure available per part number.

Named vehicle programmes: a charging port cover on BYD vehicles, a seat lock on the Mercedes C-Class, a hood latch developed for a Nissan global platform, vanity mirror cover detection on Chrysler vehicles.

Which supplier fits which kind of change

A change that stays inside the electrical envelope, such as a different terminal type or a different lead exit direction, is the cheapest kind. A supplier holding terminal type and lead exit as parameters returns samples in weeks; a supplier holding the same dimensions as geometry returns a quotation for a new cavity.

A change to the actuator or the mounting interface is geometry almost everywhere. The question is not whether it costs tooling but who owns the tool afterwards and how the NRE (non-recurring engineering) is structured.

A change to sealing grade takes a new part number on most of this list, because the construction changes and the rating has to be verified again. The re-test belongs in the budget alongside the part.

A change to the destination market list looks like paperwork and behaves like a schedule event. An approval added after the design freezes goes to the back of a certification body's queue.

How many suppliers a change has to travel through decides how long it takes. A change handled inside one plant moves at that plant's speed; a change that crosses a distributor, a factory and a subcontracted test house moves at the slowest of the three.

A stable supplier is not a stable part number

A supplier can hold every certificate, return revised samples in two weeks and still deliver a part that fails a cold-start test, because a supplier assessment is not the qualification. PPAP (Production Part Approval Process) is where the two meet, and what a submission asks for beyond the certificate is set out under IATF 16949 project requirements. Until that submission clears, a supplier assessment describes a company rather than a part.

What to settle before the first change request

Three of the seven above publish no revised-sample figure. The one the ZINGEAR engineering team quotes is against your change, with what happens to the certificate stated alongside it.

FAQ About Automotive Micro Switch Procurement

Is a higher tier supplier more reliable through a change?

Not by itself. Tier predicts unit price and engineering support. What predicts change behaviour is whether the parameter sits in a design model and whether the re-test runs in house.

How long should a revised sample take?

Weeks where the change is a parameter, months where it needs new geometry. The useful comparison is the gap between a supplier's first-sample figure and its revised-sample figure.

Does a dimensional change always need a new part number?

No. It depends on whether the dimension is held as a parameter or as tool geometry, which differs by supplier and is worth asking before the design freezes.

What does a supplier assessment miss?

The part. An assessment covers the system and the site; PPAP covers your part number on the line that will build it.

Who pays for re-qualification after a change?

Re-qualification cost is set in the quotation, and it is one of the items most often left out of a first quote. Ask for the figure in writing alongside the NRE.

Sources

Standards and certification bodies

International Automotive Task Force. IATF 16949:2016. Distributed by the Automotive Industry Action Group: IATF 16949:2016

International Electrotechnical Commission. IEC 60529:1989+AMD1:1999+AMD2:2013, Degrees of protection provided by enclosures (IP Code): IEC 60529

All figures checked 28 September 2026.
