"G10B Micro Switch Size Specification and Installation Guide | ZINGEAR Official Parameters"
Micro switches are small but critical components in electronic and mechanical systems. Understanding the G10B micro switch dimensions and proper installation methods is especially important for beginners. This guide, based on official ZINGEAR product specifications, provides clear step-by-step instructions, practical advice, and real-world examples to help anyone successfully use the G10B micro switch.
1、Main Specifications
Physical Dimensions
The G10B series features a compact design. Refer to the official drawings for precise dimensions. The following shows typical dimensions for three models. Verify these carefully before installation:

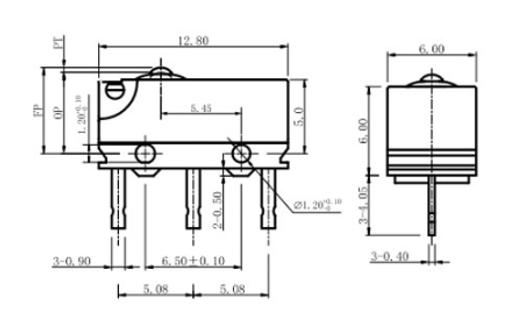

ZINGEAR G10B03-150P00A Micro Switch Dimensional Drawing:

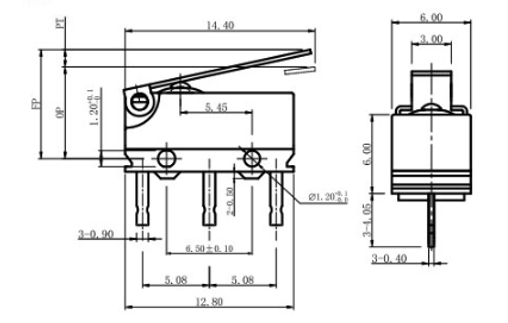

ZINGEAR G10B03-150P03A Micro Switch Dimensional Drawing:

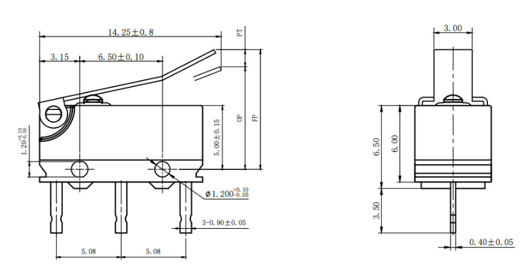

ZINGEAR G10B03-150P04A Micro Switch Dimensional Drawing:
Understanding the physical dimensions helps in selecting the right switch and ensures accurate installation.
Electrical Parameters
Rated Voltage: 125 VAC
Rated Current: 3 A
Contact Form: Single Pole Double Throw (SPDT)
Contact Resistance: ≤100 mΩ
Insulation Resistance: ≥100 MΩ
Operating Temperature: -40℃ to +85℃
Protection Level: IP67 (fully sealed for dust and water resistance)
Mechanical and Electrical Lifespan
Mechanical Life: 30,000 cycles
Electrical Life: 10,000 to 50,000 cycles (depending on load conditions)
Actuator Types
G10B03-150P00A: No lever (button type), suitable for new energy vehicle smart locks
G10B03-150P03A: Straight lever, suitable for EV charging guns
G10B03-150P04A: Bent lever, suitable for EV charging stations
Choosing the appropriate actuator type directly affects the switch’s durability and performance.
2、Required Installation Tools
For safe installation of G10B micro switches, prepare:
Precision screwdriver set
Soldering iron (if terminals need soldering)
Multimeter (to test continuity)
Screws matching the mounting holes
Having all tools ready simplifies the installation process and prevents damage to the switch.
3、Installation Steps
Determine installation location: Ensure there is enough space around the actuator.
Mark mounting points: Align according to the official drawing hole dimensions.
Secure the switch: Insert screws into the mounting holes and tighten gently to avoid cracking the plastic housing.
Connect electrical terminals: Solder or use plug-in connectors, distinguishing COM, NO, and NC.
Test functionality: Use a multimeter to confirm proper switch operation (COM-NC closed when unpressed, COM-NO closed when pressed).
Following these steps ensures the switch operates reliably in your application.
4、Common Errors and Solutions
| Common Error | Consequence | Correct Approach |
Screws over-tightened | Housing cracks, IP67 fails | Tighten until snug, then add 1/4 turn |
Terminal miswiring (NO/NC confused) | Signal logic error | Follow specification labels |
Ignoring actuator direction | Lever interferes with movement | Ensure lever aligns with mechanical motion |
Exceeding electrical ratings | Contacts burn out or lifespan drops | Voltage ≤125V, Current ≤3A |
Paying attention to these issues prevents damage and extends switch life.
5、Tips for Extending Switch Lifespan
Keep the switch clean and free from dust and debris
Avoid excessive force on the actuator
Confirm electrical load matches rated specifications
Periodically check contact resistance (replace if >200 mΩ)
These practices help maintain stable performance and prevent premature failure.
6、Conclusion
The G10B micro switch is a reliable component for precise mechanical and electrical control. Understanding its dimensions, installation process, and common issues allows beginners to confidently integrate it into projects. Using proper tools, careful installation, and adhering to rated electrical parameters ensures safe, stable, and long-lasting operation.
7、Why Choose ZINGEAR Original Manufacturer Support?
ZINGEAR provides complete engineering drawings, traceable international certifications, and direct technical support for every G10B micro switch, helping you avoid common issues right from the installation stage.
Complete and accurate drawings:
Each model is provided with engineering drawings that include travel parameters such as OF (Operating Force), RF (Release Force), PT (Pre-Travel), and OT (Over-Travel), which can be directly used for structural design.
Transparent and traceable certifications:
ENEC / CQC / UL / cUL certificates are supplied with the product, making it easy to pass project audits and compliance requirements.
Direct access to engineers:
For installation or matching issues, you can communicate directly with technical engineers without going through customer service relays.
Sample testing support:
You can request physical samples of any model to verify operating force and sealing performance on your own fixtures.
To obtain the full G10B series dimension drawings or installation technical consultation, leave a message with your required model. A reply will be provided within 24 hours.
8、FAQ
Q1: Can G10B micro switches be installed without screws?
A: Yes, some applications use adhesive pads or brackets, but screws provide the most reliable fixation.
Q2: What is the maximum current the G10B switch can handle?
A: Rated current is 3 A. Do not exceed this value.
Q3: How to test the micro switch after installation?
A: Use a multimeter to test continuity: COM-NC closed when unpressed, COM-NO closed when pressed.
