Focusing on G10B Micro switch model comparison and application analysis, this article systematically explains structural differences, selection logic, and cross-industry applications to support proper selection in various scenarios.

1、G10B Micro switch Structural Features

Standardized Design and Versatility

The G10B Micro switch series adopts a unified structural platform, ensuring strong cross-device compatibility.

Key structural features include:

• Fully sealed waterproof housing (IP67 rating)

• Multiple actuator options (roller, button, lever, etc.)

• Standard electrical contact forms (NO/NC)

• Unified mounting dimensions

• Spring mechanism design supporting up to 300,000 mechanical cycles

This design enables compatibility with EV charging connectors, automotive door systems, industrial limit switches, and other mechanical-electrical devices.

2、G10B Micro switch Model Comparison

Model Classification and Application Strength

According to ZINGEAR’s official product lineup, the G10B series includes the following models:

This classification is based on matching mechanical load conditions and operating frequency requirements. The G10B03-150P04A, with optimized rebound structure, is particularly suitable for high-frequency EV charging applications.

3、Cross-Industry Applications of G10B Micro switch

Industrial Automation and Machinery

In industrial equipment, the G10B Micro switch is used for:

Mechanical limit position detection

Production line position feedback

Actuator status confirmation

Waterproof switching in harsh environments (IP67 protection)

Home Appliances and Consumer Electronics

Micro switches are widely used in consumer products, including:

Microwave door safety detection

Washing machine door lock interlock systems

Coffee machines and small kitchen appliance controls

Printer cover detection

In these applications, the primary function is safety interlocking and status detection. The compact structure of G10B03-150P00A is well suited for confined internal spaces.

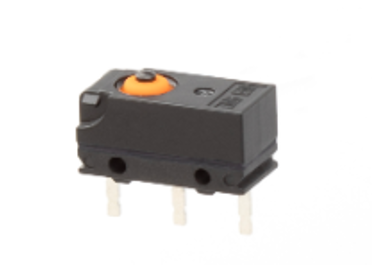

ZINGEAR micro switches-G10B03-150P00A

Automotive and Transportation Systems

 Micro switches are commonly used in:

Vehicle door status detection

Trunk switch signal recognition

Seat position limit control

Seatbelt status systems

These applications require high reliability and environmental resistance, which is supported by the IP67 rating.

EV Charging and New Energy Systems

The ZINGEAR G10B series is widely used in charging infrastructure, including:

Charging connector latch signal monitoring

Charging port cover detection

Internal interlock switches in charging stations

Smart locking systems in electric vehicles

G10B03-150P04A are specifically designed for high-frequency operation and outdoor environments.

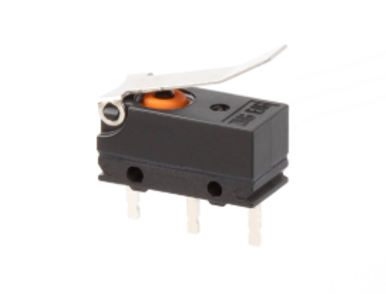

ZINGEAR micro switches-G10B03-150P04A

Communication and Medical Equipment

Telecommunications: customized Micro switches for base stations and power modules

Medical devices: integrated with sensors for door monitoring and predictive maintenance

4、G10B Micro switch Selection Method

Key Engineering Considerations

When selecting a G10B Micro switch, the following factors should be evaluated:

Operating frequency and usage intensity (up to 300,000 cycles)

Mechanical actuation method (roller, button, lever)

Electrical load compatibility (rated voltage/current)

Installation space and structural constraints

Environmental conditions (IP67 waterproof/dustproof requirements, temperature range)

5、System Signal Control Logic

Basic Signal Conversion Principle

A Micro switch functions as a mechanical-to-electrical signal conversion node:

1. External mechanical movement occurs
2. Internal spring mechanism is triggered
3. ON/OFF signal is generated (NO/NC)

4. Control system processes the signal




System Integration Value

Key advantages include:

Standardized signal output

Fast response (snap-action mechanism)

Low cost with high reliability

Compliance with global certifications (ENEC, CQC, UL, cUL)

6、Common Engineering Misconceptions

Misunderstanding of Application Scope

Micro switches are not limited to industrial systems. They are general-purpose components used across EV charging, automotive, home appliances, medical, and communication industries.

Model Selection Errors

Common issues include:

Over-specifying high-end models, increasing cost unnecessarily

Ignoring IP ratings, leading to water ingress failure

Overlooking operating frequency, causing early wear within the 300,000-cycle lifespan

Conclusion

The G10B Micro switch series by ZINGEAR features IP67 protection, 300,000-cycle mechanical life, and multiple international certifications. Its applications span EV charging systems, automotive electronics, industrial equipment, home appliances, telecommunications, and medical devices.

The key differences between models lie in actuator design, operating force optimization, and application-specific adaptations. Proper selection depends on environmental conditions, actuation method, and operating frequency rather than a single parameter.

7、Why Choose ZINGEAR as Your Selection Partner?

Effective Micro switch selection depends on manufacturing capability and long-term reliability validation. ZINGEAR operates automated production lines, precision mold manufacturing, and production facilities in China and Cambodia to ensure stable supply.

The company independently develops contact and spring materials, and all G10B series products are certified by ENEC, CQC, UL, and cUL, with verified mechanical life up to 300,000 cycles.

Engineering support is available to match product models with real application conditions, reducing selection errors.

Get Selection Support

Click here to submit your application parameters and receive model recommendations.

8、FAQ

Q1: Is the G10B Micro switch only used in industrial equipment?

No. It is also widely used in EV charging systems, automotive electronics, home appliances, office equipment, medical devices, and telecommunications.

Q2: What are the main differences between models?

The differences lie in operating force, actuator type, and application-specific optimization (such as high-frequency or automotive use), while all models maintain IP67 protection.

Q3: What is the mechanical life of the G10B Micro switch?

The official mechanical life is 300,000 cycles.

Q4: What is the most important factor in selection?

Key factors include environmental protection requirements (IP rating), operating frequency, installation constraints, and electrical load compatibility.
