Product advantages:
The product is equipped with durable contacts, which combine the core advantages of low resistance transmission and high mechanical durability. It perfectly adapts to the long-term continuous working needs of high-frequency start stop and blade stroke limit of the weeding machine, laying a solid control line for the safe and efficient operation of household weeding machines.
ZINGEAR is directly supplied by the original manufacturer, empowering home gardening equipment upgrades with exquisite quality.
Key Features:
·Waterproof and dustproof (IP67) design
·Small in size and tight in grip
·Having global safety certification
·Long lifespan, high reliability
·Equipped with various forms of operating handles
·The types of wire connectors are complete
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
·Various installation dimensions meet different installation requirements
Technical parameters：
Operating Voltage | 125/250VAC 30VDC |
Rated Current | 5A |
Contact Resistance | 200mΩ Max. |
Insulation Resistance | 100mΩ Min. |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | customizable |
Operating Temperature | -40℃～+85℃ |
Contact Material | customizable |
Electrical Life | 50,000次 Min. |
Mechanical Life | 50,000次 Min. |
Protection Class | IP67 |
Terminal & Lever | Simulated roller handle |
Outline | customizable |
Withstand Voltage | 500 VAC (50~60HZ) leakage current<10mA --Between terminals. 1000 VAC (50~60HZ) current<10mA --Between terminals and non current carrying metal components --Terminal and shell |

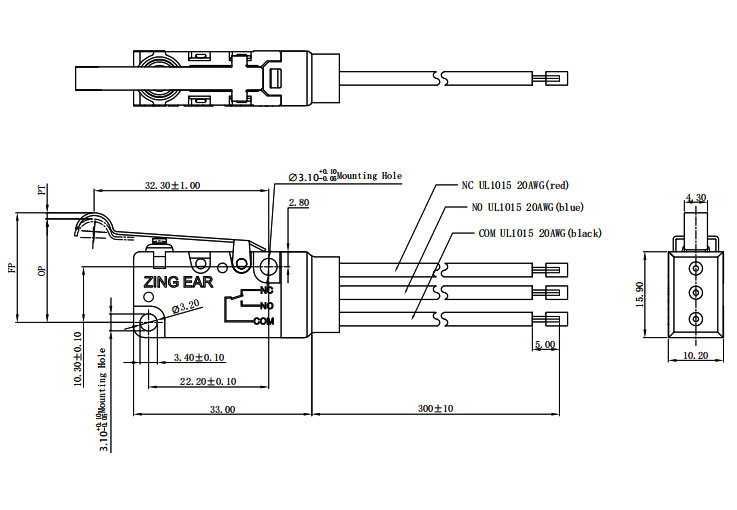

Drawings：
