ZINGEAR Group G605-150S02A High Precision Micro Switch - Suitable for Toy Cars

ZINGEAR Group G605-150S02A High Precision Micro Switch

Suitable for Toy Cars

ZINGEAR Group G605-150S02A high-precision micro switch is a highly reliable core component tailored for toy cars, accurately matching the core demands of children's toys for stability, long lifespan, and strict safety compliance.

By carefully selecting high-quality materials that meet toy safety standards and combining them with micrometer level precision manufacturing processes, this switch is able to handle high-frequency handling, collision vibrations, and other usage scenarios of toy cars with ease. It maintains stable and consistent operating performance in the consumer environment of children's daily play.


G605-150S02A
G605-150S02A

Product Features

Product advantages:

Relying on durable contact design, low resistance transmission advantages, and high mechanical durability, the switch can perfectly adapt to the long-term continuous operation needs of toy cars, such as forward and backward switching, steering control, start stop triggering, etc. The millisecond response speed can restore a smooth operating experience, and through strict safety testing, it builds a strong safety line for children's use.

ZINGEAR's exquisite craftsmanship empowers toy cars to be both fun and reassuring.


Key Features:‌

·Waterproof and dustproof (IP67) design

·The types of connection terminals are comprehensive.

·Equipped with various types of operation handles

·It is widely applied in fields such as automotive control, household appliances and industrial control.


Technical parameters:

 Operating Voltage

  125V

 Rated Current

  5A

 Contact Resistance

  100mΩ

 Insulation Resistance

  100mΩ

 Contact Form

  Single Knife Double Throw (SPDT)

 Operating Force (OF)

   customizable

 Operating Temperature

  −25°C 至 +125°

 Contact Material

  customizable

 Electrical Life

  10,000~50.000次

 Mechanical Life

  1,000,000次

 Protection Class

  NO

 Operating Handle

  Standard straight handle

 Terminal

  customizable

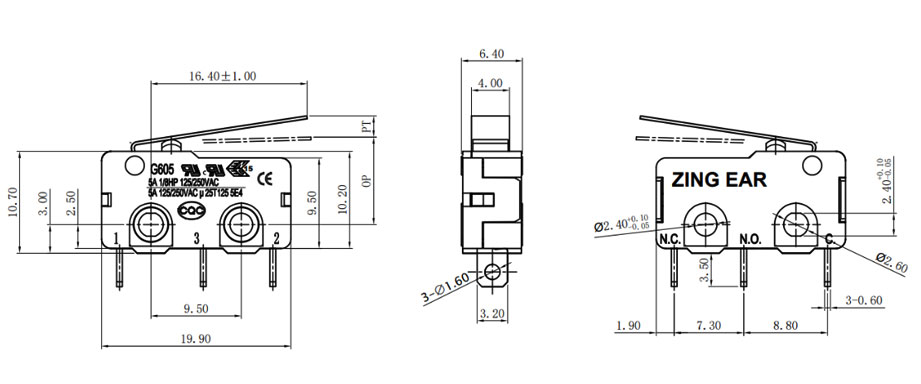

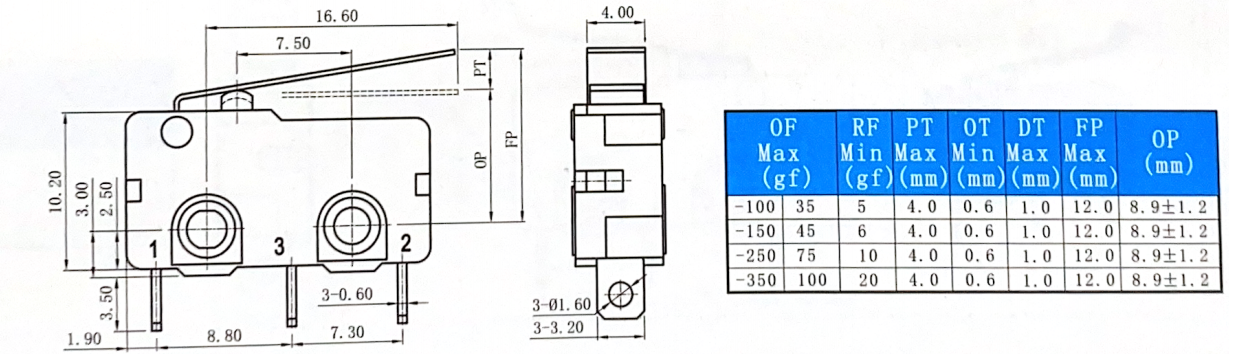

Drawings:
