ZINGEAR Group G605-150S07A Small Micro Switch

Water Pump for Industrial Equipment

ZINGEAR Group G605-150S07A small micro switch is a high reliability switch product specially designed for industrial water pumps, which accurately matches the strict standards of stability, long service life, and strict safety compliance of the equipment.

By selecting high-quality materials and combining with ZINGEAR Group's mature precision manufacturing technology, this switch can easily cope with complex industrial environments such as continuous vibration, humid conditions, and voltage fluctuations during the operation of industrial water pumps, ensuring stable and consistent performance under all-weather continuous operation.

Product Inquiry

Product Features

Product advantages:

The product is equipped with durable contacts, which combine the dual core advantages of low resistance transmission and high mechanical durability. It perfectly adapts to the key functional requirements of industrial water pumps, such as liquid level control, pressure monitoring, and start stop protection, laying a solid core control defense line for the safe and efficient operation of industrial water pumps.

ZINGEAR's precision quality empowers industrial fluid equipment upgrades with hardcore switch technology.

Key Features:‌

·Waterproof and dustproof (IP67) design

·The types of connection terminals are comprehensive.

·Equipped with various types of operation handles

·It is widely applied in fields such as automotive control, household appliances and industrial control.

Technical parameters：

Operating Voltage	125V
Rated Current	5A
Contact Resistance	100mΩ
Insulation Resistance	100mΩ
Contact Form	Single Knife Double Throw (SPDT)
Operating Force (OF)	customizable
Operating Temperature	−25°C 至 +125°
Contact Material	customizable
Electrical Life	10,000～50.000次
Mechanical Life	1,000,000次
Protection Class	NO
Operating Handle	Standard straight handle
Terminal	customizable

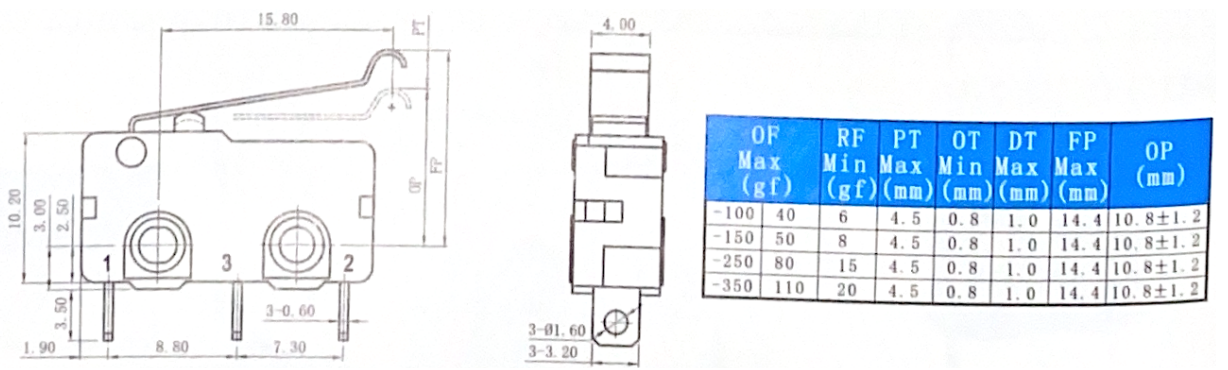

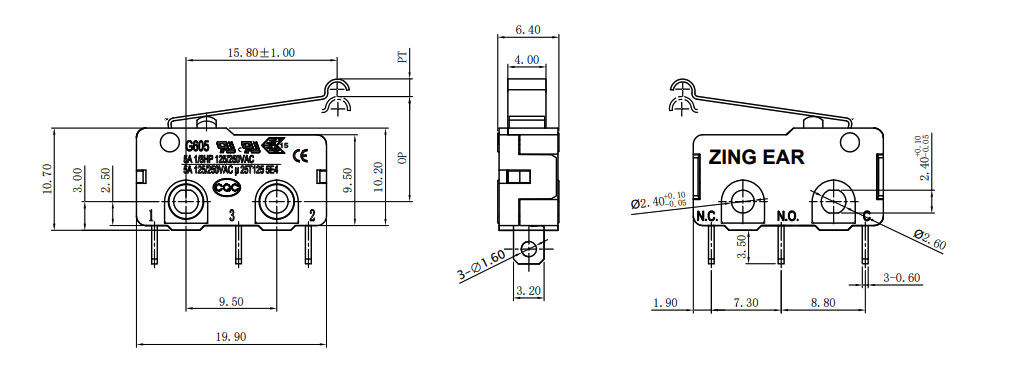

Drawings：

Related Cases

Delonghi Coffee Machine Cooperation Project

The microswitch is mainly used in coffee machines for detecting the position of the water tank, controlling the power switch, and providing safety protection. This ensures the stable operation of the equipment and the safety of user operations.

Learn More

BYD charging port cover

With the rapid development of new energy vehicles, charging piles, as an important supporting facility for them, have drawn much attention due to their safety and reliability. As a leading enterprise in the field of new energy vehicles, BYD has always been committed to providing users with safe and convenient charging experiences.

Learn More

Why choose

ZINGEAR micro switches

Global OEM supplier, trusted by European, Asian, and South American brands

Strict quality control system: IQC → IPQC → FQC → OQC

Comprehensive authentication support

Short delivery time, stable mass production

FAQ

What are the certification standards for G6 micro switches?

In the field of electronic components, as a critical control element, the safety and reliability of microswitches directly impact the performance of end devices. The G6 series of microswitches under ZINGEAR Group, with its stringent quality control system, has established a certification network covering major global markets, providing a solid guarantee for the product's international competitiveness.
I. Global Certification Standards System for Microswitches
Microswitch certification standards can be categorized into three main types based on application scenarios:
1‌.Basic Safety Certifications‌: UL (U.S.), cUL (Canada), and CSA (Canada) form the core for North American market access, while ENEC (EU) and TÜV (Germany) represent the highest safety standards in Europe. PSE (Japan) is a mandatory certification in the East Asian market.
2‌.Country-Specific Mandatory Certifications‌: These include China's CCC certification, South Korea's KC certification, Russia's EAC certification, etc., serving as regional market entry barriers.
3‌.Industry-Specific Certifications‌: These include special environmental certifications such as AEC-Q200 for automotive electronics and MIL-STD-810 for military-grade applications.
How long is the lifespan of G6 micro switch?

As a core component in industrial automation, consumer electronics, and automotive electronics, the lifespan of the G6 micro switch directly impacts equipment reliability and maintenance costs. This article analyzes four key aspects: lifespan indicators, influencing factors, lifespan extension solutions, and ZINGEAR's product advantages.
1. Lifespan Indicators: Based on Operational Cycles.
The G6 micro switch's lifespan is measured by two key metrics:.
• Mechanical Life: Refers to the maximum number of operational cycles under no-load conditions, typically exceeding 1 million cycles. For example, ZINGEAR's standard G6 model offers 1 million cycles, while high-endurance models reach up to 3 million cycles..
• Electrical Life: Indicates reliable operational cycles under rated current/voltage, usually ranging from 100,000 to 500,000 cycles. For instance, at 10A/250VAC load, the electrical life is approximately 100,000 cycles; under light load (1A/24VDC), it can achieve 500,000 cycles. In practical applications, electrical life is the primary reference due to electrical failure modes like contact oxidation and arc erosion.
