Product Category: G6 Series Small General-purpose Micro Switch, Travel Sensing Component Dedicated to Kitchen & Bathroom Appliance Transmission Mechanisms
Application Scenarios: Integrated stove air door transmission detection, range hood air valve limit triggering, dishwasher spray mechanism verification, pasta maker roller station induction
Core Functions: Accurate recognition of travel position, reliable triggering of transmission actions, real-time feedback of station signals, logic linkage control of mechanism
Core Advantages: Easy embedding with compact body, oil stain and dust resistance, wear-resistant low-loss contacts, high durability for high-frequency actions
Pain Points Solved: Inaccurate triggering of transmission stations, easy jamming under oil stain and dust, fast wear under frequent actions, limited installation space in narrow cavities
Product advantages:
The product is equipped with durable contacts, which combine the advantages of low resistance transmission and high mechanical durability. It not only adapts to the gear switching and one click start stop function of electric frying pans, but also accurately triggers safety protection mechanisms such as high-temperature power-off and anti dry burning, ensuring cooking safety from the core component level and adapting to long-term continuous use needs.
ZINGEAR micro switch, with exquisite quality, builds a strong safety defense line for kitchen appliances.
Key Features:
·Waterproof and dustproof (IP67) design
·The types of wiring terminals are uniform
·Equipped with various forms of operating handles
·Widely used in various fields such as automotive control, home appliances, and industrial control
Technical parameters：
Operating Voltage | 125V |
Rated Current | 5A |
Contact Resistance | 100mΩ |
Insulation Resistance | 100mΩ |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | customizable |
Operating Temperature | −25°C 至 +125° |
Contact Material | customizable |
Electrical Life | 10,000～50.000次 |
Mechanical Life | 1,000,000次 |
Protection Class | NO |
Operating Handle | Standard straight handle |
Terminal | customizable |

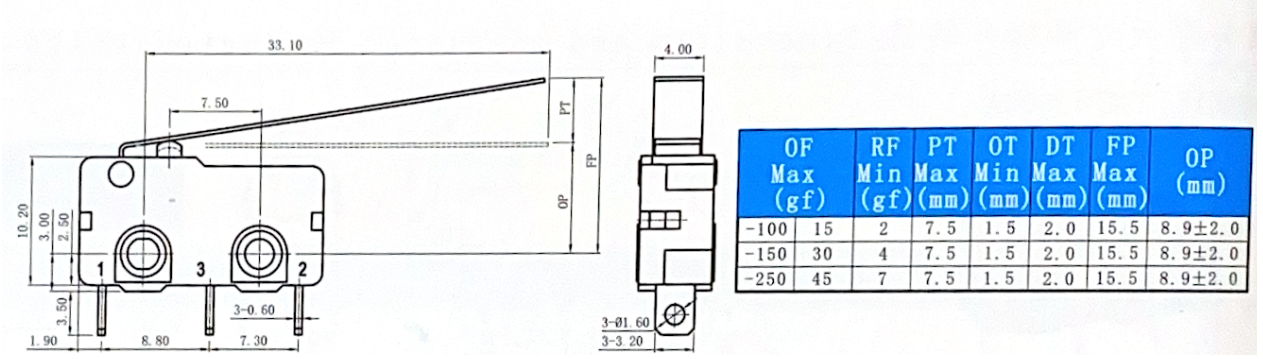

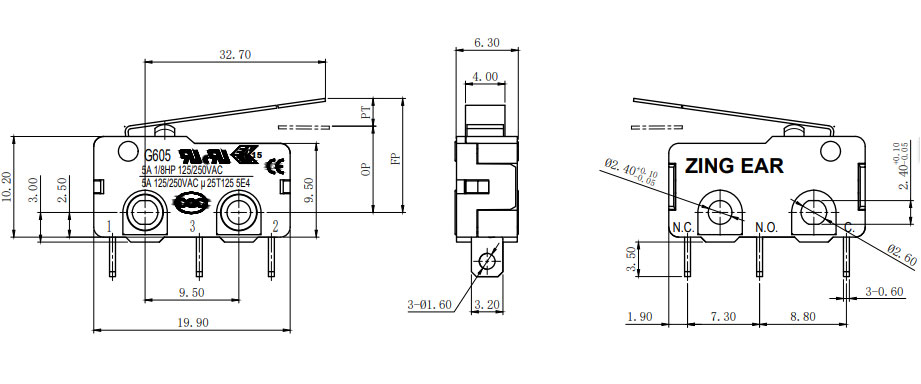

Drawings：
