ZINGEAR G9105-150S00D1 ‌Flat Press Plate Type Switch — Universal Built-in Direct-press Component/Switch/Button for Household Appliances

Applicable to Microwave Ovens, Disinfection Cabinets, Bread Makers

‌Product Category‌: G9105 Series Appliance-grade 3-terminal Double-contact Flat Press Plate Type Standard-travel Micro Switch, Universal Built-in Direct-press Status Sensing Control Component for Household Appliances

‌Application Scenarios‌: Microwave oven door safety interlock triggering, disinfection cabinet drawer in-place detection, water dispenser water tray installation verification, bread maker oven lid closing induction

‌Pain Points Solved‌: No prompt for single-circuit failure, poor contact easily caused by press offset, short service life under frequent start-stop, inaccurate component status detection


Product Inquiry
G9105-150S00D1

Product Features

Product advantages:

‌Core Functions‌: Dual-circuit on-off status recognition, complete machine safety interlock self-check, press-in-place logic judgment, abnormal disconnection signal prompt

‌Core Advantages‌: Dual-contact mutual backup for fault tolerance, strong alignment fault tolerance of wide press plate, resistance to on-off load impact, high durability adapted to high-frequency pressing


Key Features:‌

·Waterproof and dustproof (IP67) design

·Having global safety certification

·Equipped with various forms of operating handles

·Complete types of wiring terminals

·Widely used in fields such as automotive control, home appliance control, industrial control, etc

·Various installation dimensions meet different installation requirements


Technical parameters：

 Operating Voltage

  125V

 Rated Current

  5A

 Contact Resistance

  100mΩ

 Insulation Resistance

  100mΩ

 Contact Form

  Single Knife Double Throw (SPDT)

 Operating Force (OF)

   customizable

 Operating Temperature

  −25°C 至 +125°

 Contact Material

  customizable

 Electrical Life

  10,000～50.000次

 Mechanical Life

  1,000,000次

 Protection Class

  NO

 Operating Handle

  NO

 Terminal

  customizable

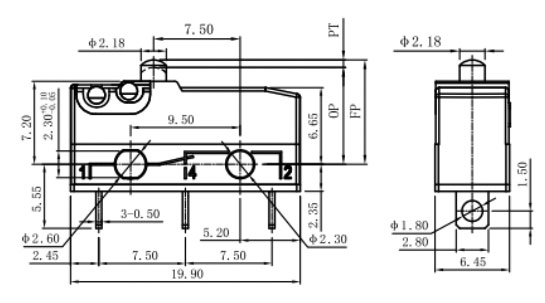

Drawings：
