Home - Micro Switch product Series - G9 Waterproof Microswitch Series -ZINGEAR G905-150G05W1‌Appliance Waterproof IP67 Switch Button — Lever-type Medium-travel Micro Switch

ZINGEAR G905-150G05W1‌Appliance Waterproof IP67 Switch Button — Lever-type Medium-travel Micro Switch

Applicable to Dishwashers, Coffee Machines, Mini Drum Washing Machines and Small Disinfection Cabinets

Product Category‌: G905 Series Appliance-grade IP67 Waterproof 3-terminal Double-contact Lever-type Medium-travel Micro Switch, Built-in Lever-linked Status Sensing Control Component for Small Kitchen & Bathroom Appliances

‌Application Scenarios‌: Countertop dishwasher door closing detection, desktop coffee machine brewing compartment triggering verification, mini drum washing machine compartment door locking induction, small disinfection cabinet door travel monitoring

‌Pain Points Solved‌: No prompt for single-circuit failure, poor contact easily caused by water vapor intrusion, difficult lever adaptation in narrow spaces, inaccurate mechanism in-place status detection

Product Inquiry

Product Features

Product advantages:

‌Core Functions‌: Dual-circuit on-off status recognition, complete machine safety interlock self-check, lever-triggered in-place logic judgment, abnormal disconnection signal prompt

‌Core Advantages‌: Dual-contact mutual backup for fault tolerance, compact lever adapted to narrow cavities, sealed body with water and steam resistance, high durability adapted to high-frequency linked opening-closing

Key Features:‌

·Waterproof and dustproof (IP67) design

·Having global safety certification

·Equipped with various forms of operating handles

·Complete types of wiring terminals

·Widely used in fields such as automotive control, home appliance control, industrial control, etc

·Various installation dimensions meet different installation requirements

Technical parameters：

Operating Voltage	125V
Rated Current	5A
Contact Resistance	100mΩ
Insulation Resistance	100mΩ
Contact Form	Single Knife Double Throw (SPDT)
Operating Force (OF)	customizable
Operating Temperature	−25°C 至 +125°
Contact Material	customizable
Electrical Life	10,000～50.000次
Mechanical Life	1,000,000次
Protection Class	NO
Operating Handle	Small simulation roller handle
Terminal	customizable

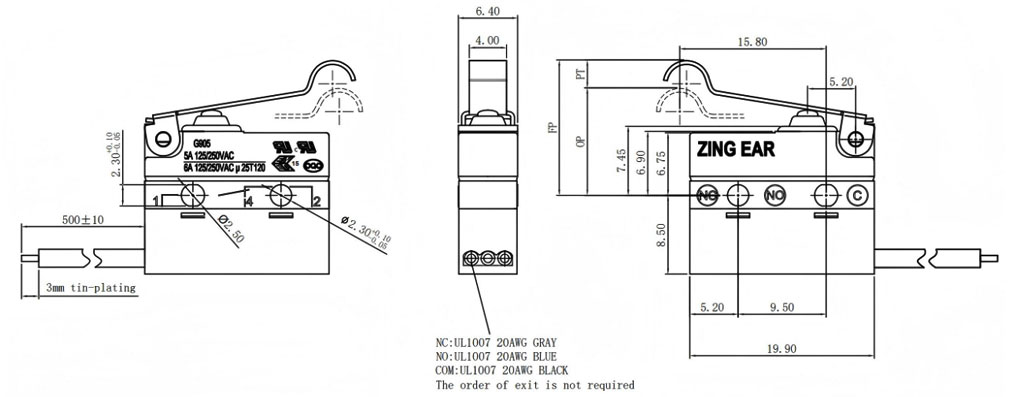

Drawings：

Tags: Limit Micro Switch Lever Micro Switch

Product Application

Mini Drum Washing Machine — Compartment Door Locking Induction

Mini Drum Washing Machine
household appliances

household appliances
Car control

Car control
Automated equipment

Automated equipment

Related Cases

Why choose

ZINGEAR micro switches

Global OEM supplier, trusted by European, Asian, and South American brands

Strict quality control system: IQC → IPQC → FQC → OQC

Comprehensive authentication support

Short delivery time, stable mass production
