Product Category: G905 Series Appliance-grade Temperature-resistant Waterproof 3-terminal Double-contact Medium-travel Micro Switch, Built-in Status Sensing Component for Safety Control of Small Household Appliances in Daily Use
Application Scenarios: Hair dryer overheat protection triggering, coffee machine brewing compartment closing detection, smoothie maker cup lid locking verification, blender cup body in-place induction
Core Functions: Dual-circuit on-off status recognition, complete machine safety interlock self-check, assembly in-place logic judgment, abnormal working condition signal prompt
Core Advantages: Dual-contact mutual backup for fault tolerance, sealed body with moisture and liquid resistance, resistance to temperature change and start-stop impact, high durability adapted to high-frequency operation
Pain Points Solved: No prompt for single-circuit failure, easy malfunction under high temperature and humidity, short service life under frequent start-stop, inaccurate component status detection
Product advantages:
The product complies with ISO 13485 quality management system certification and industrial electrical safety standards, and has passed rigorous tests such as high and low temperature (-40 ℃~+85 ℃) and vibration resistance.
Batch supply combines stable quality and high cost-effectiveness, providing reliable switch matching solutions for electric cutter manufacturers and helping equipment operate stably and efficiently.
Key Features:
·Waterproof and dustproof (IP67) design
·Having global safety certification
·Equipped with various forms of operating handles
·Complete types of wiring terminals
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
·Various installation dimensions meet different installation requirements
Technical parameters：
Operating Voltage | 125V |
Rated Current | 5A |
Contact Resistance | 100mΩ |
Insulation Resistance | 100mΩ |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | customizable |
Operating Temperature | −40°C to +125°C |
Contact Material | customizable |
Electrical Life | 10,000～50.000times |
Mechanical Life | 1,000,000 times |
Protection Class | NO |
Operating Handle | / |
Terminal | Contact points PCB、 Optional wiring terminals |

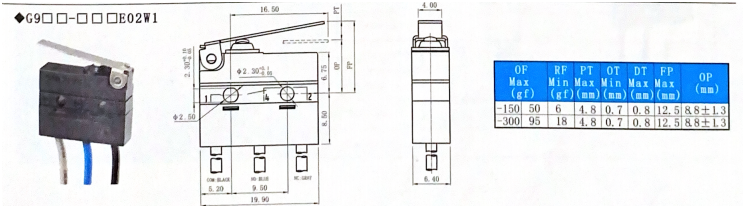

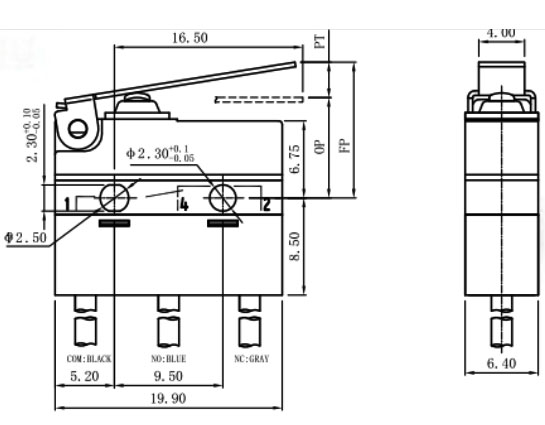

Drawings：
