Home - Micro Switch product Series - G9 Waterproof Microswitch Series -‌Appliance Switch G905-150G02W1 — Built-in Lightweight Linked Status Sensing Control Component/Switch for Micro Small Household Appliances,

‌Appliance Switch G905-150G02W1 — Built-in Lightweight Linked Status Sensing Control Component/Switch for Micro Small Household Appliances,

Applicable to Household Appliances: Coffee Machines, Portable Juicer Cups, Desktop Humidifiers and Small Mite Removers

Product Category‌: G905 Series Appliance-grade IP67 Waterproof 3-terminal Double-contact Ultra-short Travel Lever-type Micro Switch, Built-in Lightweight Linked Status Sensing Control Component for Micro Small Household Appliances

‌Application Scenarios‌: Mini capsule coffee machine needle triggering detection, portable juicer cup lid screwing verification, desktop humidifier water tank installation induction, small mite remover dust box in-place detection

‌Pain Points Solved‌: No prompt for single-circuit failure, impossible lever layout in extremely narrow spaces, poor contact easily caused by water vapor intrusion, inaccurate micro-travel status detection


Product Inquiry
G905-150G02W1

Product Features

Product advantages:

‌Core Functions‌: Dual-circuit on-off status recognition, complete machine safety interlock self-check, ultra-short travel triggering in-place judgment, abnormal disconnection signal prompt

‌Core Advantages‌: Dual-contact mutual backup for fault tolerance, ultra-short lever adapted to extremely narrow installation cavities, sealed body with water and moisture resistance, high durability adapted to high-frequency lightweight triggering


Key Features:‌

·Waterproof and dustproof (IP67) design

·Having global safety certification

·Equipped with various forms of operating handles

·Complete types of wiring terminals

·Widely used in fields such as automotive control, home appliance control, industrial control, etc

·Various installation dimensions meet different installation requirements


Technical parameters：

 Operating Voltage

  125V

 Rated Current

  5A

 Contact Resistance

  100mΩ

 Insulation Resistance

  100mΩ

 Contact Form

  Single Knife Double Throw (SPDT)

 Operating Force (OF)

   customizable

 Operating Temperature

  −25°C 至 +125°

 Contact Material

  customizable

 Electrical Life

  10,000～50.000次

 Mechanical Life

  1,000,000次

 Protection Class

  NO

 Operating Handle

  Standard straight handle

 Terminal

  customizable

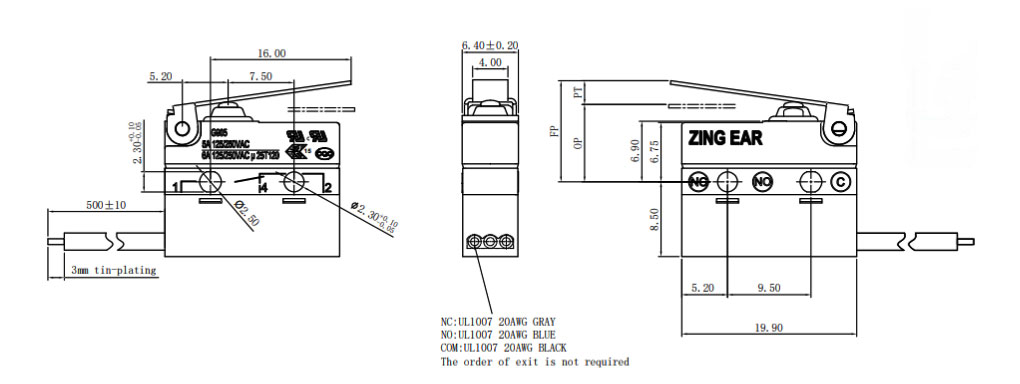

Drawings：


Tags: IP67 limit switch Mini Small Home Appliance Micro Switch
