Product Category: G9A Series Appliance-grade Waterproof Explosion-proof 3-terminal Double-contact Flat-press Standard-travel Micro Switch, Built-in Direct-press High-protection Safety Sensing Control Component for High-power Cooking Appliances
Application Scenarios: High-power blender cup lid press detection, commercial soymilk maker upper lid safety interlock triggering, large-capacity household smoothie maker cup body in-place verification, heavy-duty juicer feeding lid closing monitoring
Core Functions: Dual-circuit on-off status recognition, complete machine safety interlock self-check, press-in-place logic judgment, abnormal working condition signal prompt
Core Advantages: Dual-contact mutual backup for fault tolerance, strong alignment tolerance of wide press plate, fully sealed waterproof and explosion-proof body, resistant to high-load on-off impact, high durability adapted to high-frequency high-intensity pressing
Pain Points Solved: No prompt for single-circuit failure, poor triggering easily caused by press offset, arc risks easily caused by liquid splashing, fast wear under high-load working conditions, inaccurate component in-place status detection
Product advantages:
The core advantages of the product are significant, with durable contacts that can effectively resist arc erosion and frequent friction losses, low resistance characteristics that ensure efficient current transmission, high mechanical durability that supports millions of stable on-off cycles, and perfect adaptation to long-term continuous work requirements such as mixing gear switching of mixers and feed overload protection of meat grinders.
The entire body complies with explosion-proof safety standards, avoiding safety hazards caused by electrical failures in food processing equipment from the source, and building a strong defense line for the safe operation of mixers and meat grinders with hardcore precision quality.
Key Features:
·Waterproof and dustproof (IP67) design
·Having global safety certification
·Equipped with various forms of operating handles
·Complete types of wiring terminals
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
·Various installation dimensions meet different installation requirements
Technical parameters：
Operating Voltage | 125V |
Rated Current | 5A |
Contact Resistance | 100mΩ |
Insulation Resistance | 100mΩ |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | customizable |
Operating Temperature | −25°C to +125° |
Contact Material | customizable |
Electrical Life | 10,000～50.000times |
Mechanical Life | 250000 times |
Protection Class | IP67 |
Operating Handle | NO |
Terminal | customizable |

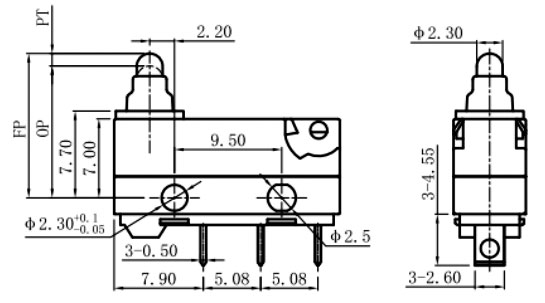

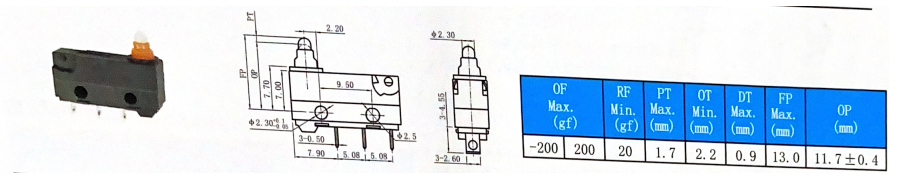

Drawings：
