Product Category: G6 Series Small General-purpose Micro Switch, Full-scenario Basic Direct-press On-off Sensing Component
Application Scenarios: Basic station triggering of various small household appliances, auxiliary travel detection of kitchen appliances, limit verification of ordinary light industrial equipment, on-off induction of civil electrical mechanisms
Core Functions: Stable on-off of basic circuit, precise triggering of direct-press stations, real-time feedback of travel status, action linkage of general mechanisms
Core Advantages: Strong universality of direct-press structure, easy embedding and installation with compact body, good adaptability of temperature resistance and oil stain resistance, stable contacts with high durability
Pain Points Solved: Complex model selection for basic stations, relatively short service life of ordinary switches, easy failure in complex environments, insufficient stability of triggering accuracy
Product advantages:
The product is equipped with low resistance durable contacts, which have excellent high mechanical durability and are perfectly adapted to the long-term high-frequency working needs of air conditioning, such as temperature regulation, wind speed switching, and overheating protection. It builds a key control defense line for precise temperature control and safe operation of air conditioning.
ZINGEAR precision micro switch empowers the performance upgrade of home appliances and air conditioners with hardcore quality.
Key Features:
·Waterproof and dustproof (IP67) design
·The types of connection terminals are comprehensive.
·Equipped with various types of operation handles
·It is widely applied in fields such as automotive control, household appliances and industrial control.
Technical parameters：
Operating Voltage | 125V |
Rated Current | 5A |
Contact Resistance | 100mΩ |
Insulation Resistance | 100mΩ |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | customizable |
Operating Temperature | −25°C 至 +125° |
Contact Material | customizable |
Electrical Life | 10,000～50.000次 |
Mechanical Life | 1,000,000次 |
Protection Class | NO |
Operating Handle | Standard straight handle |
Terminal | customizable |

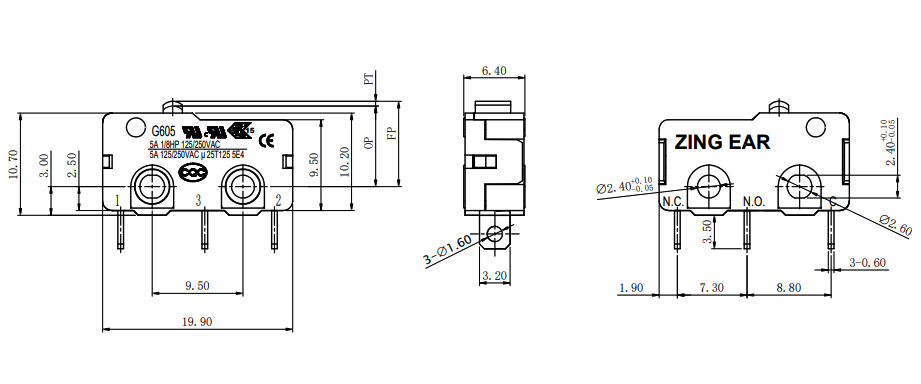

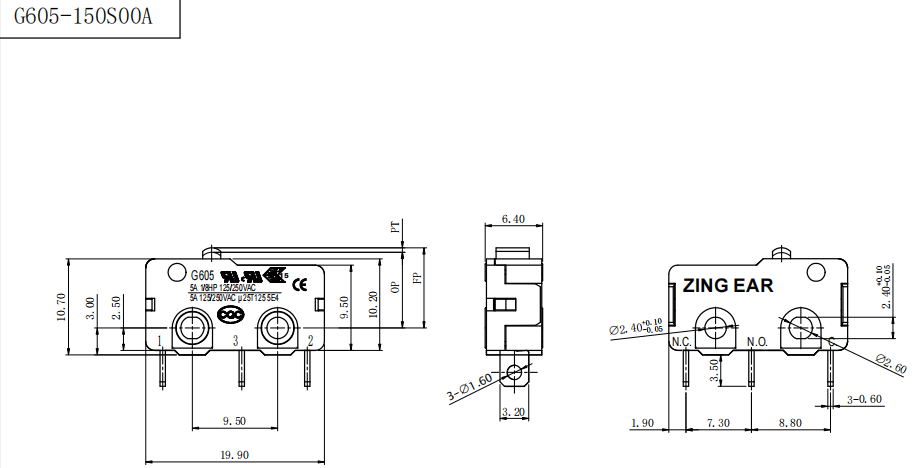

Drawings：
