Product Category: G5T16 Series General-purpose Explosion-proof Micro Switch, Household Appliance Grade Basic Safety Interlock On-off Component
Application Scenarios: Safety interlock of various kitchen appliance doors, triggering of heating appliance lids, on-off of small household appliance stations, safety verification of kitchen & bathroom equipment
Core Functions: Reliable breaking of explosion-proof circuit, accurate recognition of station status, safety interlock linkage control, stable output of on-off signals
Core Advantages: Compliant and safe explosion-proof structure, resistance to oil fume and water vapor corrosion, contact breaking without arcing, general adaptation for all scenarios
Pain Points Solved: No explosion-proof protection for ordinary switches, easy short circuit in humid and oily fume environment, hidden safety hazard of arcing, unqualified compliance certification
Product advantages:
The product is equipped with durable contacts, which have the dual advantages of low resistance transmission and high mechanical durability, and can meet the strict requirements of long-term continuous operation of air conditioning transformers, laying a solid control line for the safe operation of air conditioning equipment.
As a professional micro switch supplier, Jinyu Group empowers the upgrading of the home appliance industry with precision quality.
Key Features:
·Waterproof and dustproof (IP67) design
·Small in size and tight in grip
·Having global safety certification
·Long lifespan, high reliability
·Equipped with various forms of operating handles
·The types of wire connectors are complete
·Widely used in fields such as automotive control, home appliance control, industrial control, etc
·Various installation dimensions meet different installation requirements
Technical parameters：
Operating Voltage | 250VAC |
Rated Current | 16A |
Contact Resistance | 100mΩ Max. |
Insulation Resistance | 100mΩ Min. |
Contact Form | Single Knife Double Throw (SPDT) |
Operating Force (OF) | customizable |
Operating Temperature | -25℃～+125℃ |
Contact Material | customizable |
Electrical Life | 50,000次 Min. |
Mechanical Life | 100,000次 Min. |
Protection Class | IP40 |
Terminal & Lever | Column style pressing |
Outline | basic type |
Withstand Voltage | 500 VAC (50~60HZ) leakage current<10mA --Between terminals. 1000 VAC (50~60HZ) current<10mA --Between terminals and non current carrying metal components --Terminal and shell |

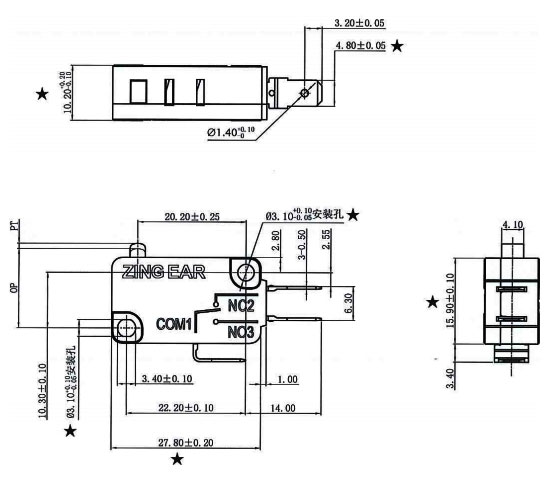

Drawings：
